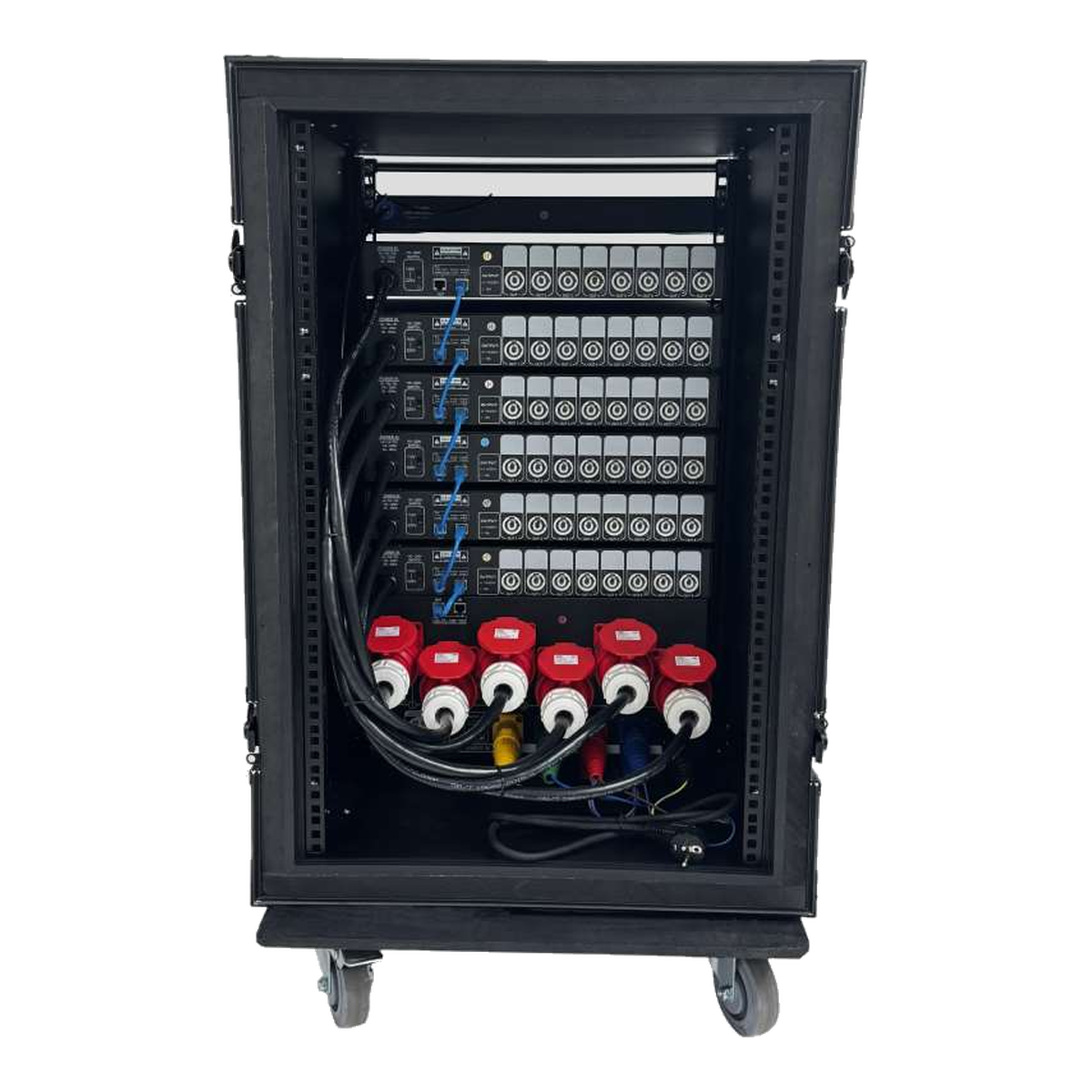

EAGLE LIGHT CPS002P — Intelligent 48-Channel Power Cabinet
The EAGLE LIGHT CPS002P is an intelligent power cabinet designed to centralize sequential power distribution for professional stage and installation systems. The manufacturer specifies a 48-channel sequential power-output arrangement with six integrated CP0803E power sequencers, one CP0601MP three-phase power distributor and an LA0102 auxiliary cabinet light.
Key Features & Benefits
- 48-Channel Sequential Power Distribution: The manufacturer lists 48 sequential power-output channels, implemented with six eight-channel CP0803E power sequencer units.
- Integrated Three-Phase Distributor: The cabinet configuration includes one CP0601MP three-phase, six-channel power distributor.
- Auxiliary Cabinet Lighting: The LA0102 cabinet light can be activated to support on-site wiring and troubleshooting.
- Emergency Power Shutdown: An emergency stop button is described as providing a way to cut off power supplies quickly.
- Centralized Equipment Power Management: The catalog identifies large screens, stage performances, indoor equipment clusters, cultural-tourism light shows and building-lighting applications.

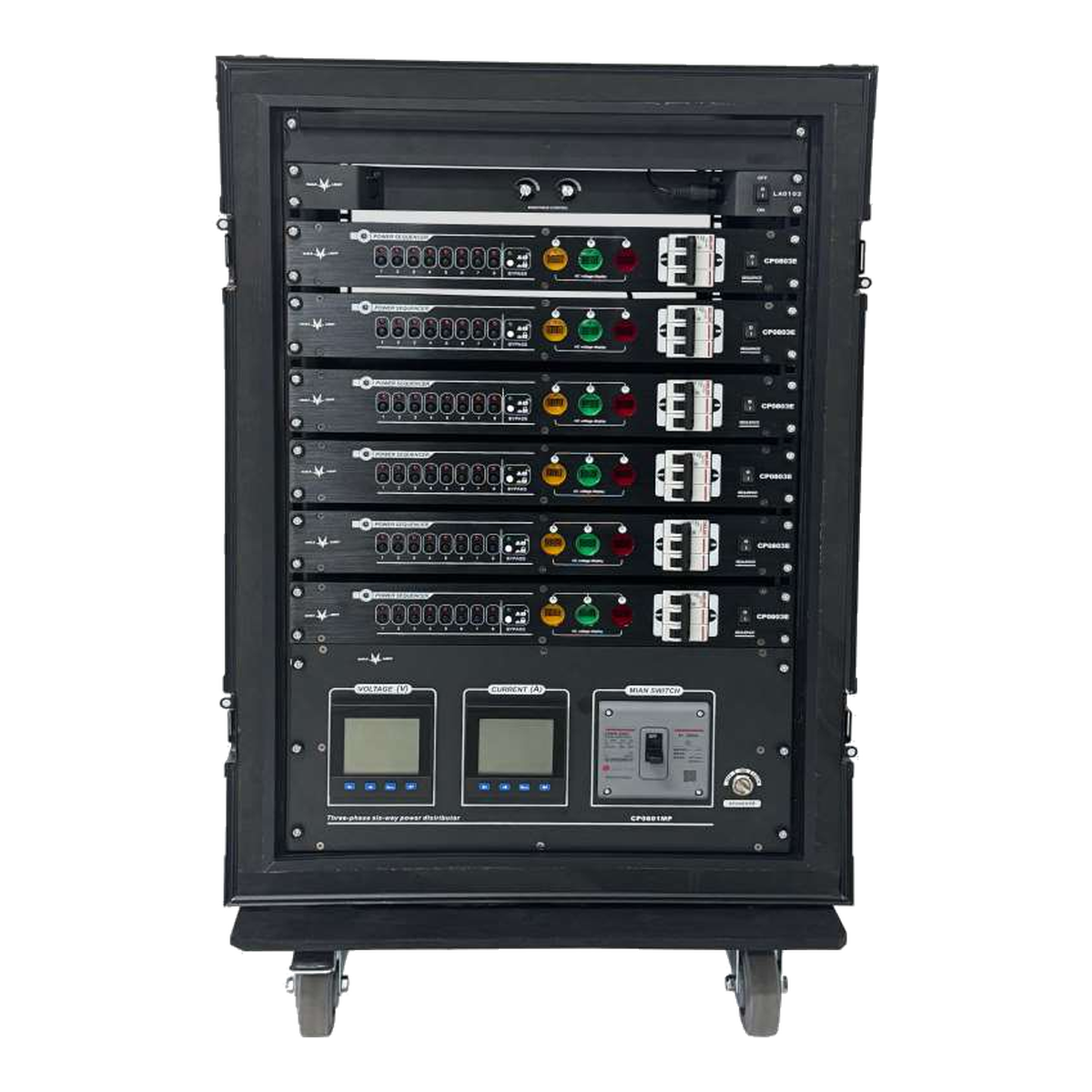

Manufacturer-Listed Cabinet Configuration
| Integrated component | Model | Quantity |
|---|---|---|
| Auxiliary cabinet light | LA0102 | 1 |
| 8-channel power sequencer | CP0803E | 6 |
| 3-phase, 6-channel power distributor | CP0601MP | 1 |
Professional Power Management Applications
The CPS002P is presented for centralized electrical power management across stage performances, large-screen systems, indoor equipment groups, architectural lighting and cultural-tourism light shows. Its integrated sequencing and documented emergency shutdown function support an organized cabinet-based power arrangement.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CPS002P |
| Manufacturer product name | Intelligent Power Cabinet |
| Catalog-listed power input | 3-phase, 6-wire |
| Sequential output channels | 48 |
| Power sequencer configuration | 6 × CP0803E (8 channels each) |
| Power distributor configuration | 1 × CP0601MP (3-phase, 6-channel) |
| Cabinet light | 1 × LA0102 |
| Emergency control | Emergency power-stop button (manufacturer-described) |
Important Installation & Catalog Notes
The manufacturer catalog describes the incoming supply as “3-phase, 6-wire”, but does not define the conductor arrangement, input voltage, channel load ratings, cabinet dimensions or the emergency-stop safety classification. These must be confirmed with the manufacturer and a qualified electrician before specifying or installing the system. No safety certification or output-current rating is implied.
All model-specific claims are based exclusively on the user-supplied EAGLE LIGHT manufacturer catalog, PDF page 30 (printed page 26). Components and electrical information from other cabinet models are not substituted.
