Description

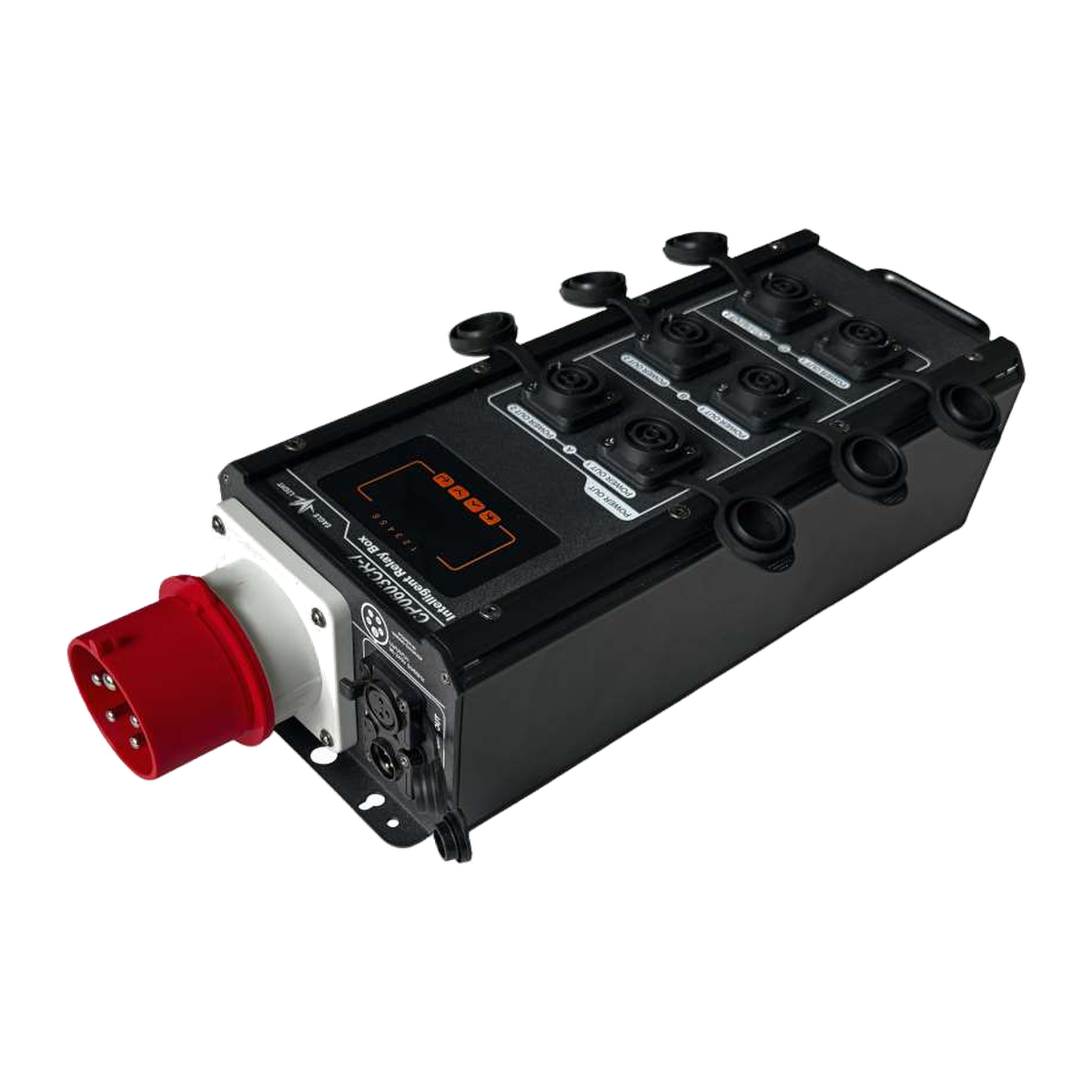

EAGLE LIGHT CP0603CR-7 DMX512-Controlled IP65 Power Distributor
The EAGLE LIGHT CP0603CR-7 is a distributed power-control unit for professional stage and event systems. The manufacturer specifies a three-phase, five-wire industrial power input, DMX512-based control of individual output power channels, and an IP65-rated aluminum-profile waterproof chassis.
Key Features & Benefits
- DMX512-based output control: The catalog states that DMX512 signals enable intelligent control of individual output power channels. Dimming capability is not established for this model.
- Three-phase, five-wire industrial input: The manufacturer specifies an industrial power plug configured for a three-phase, five-wire supply.
- Specified input ratings: The manufacturer lists 90–240 V per phase and 32 A per phase for the incoming power connection.
- Channel output current limit: The catalog states a maximum output of 16 A per channel, without specifying the number or connector type of outputs.
- IP65 protective enclosure: An aluminum-profile waterproof chassis with IP65 protection is documented.
Professional Power Distribution Applications
For stage and production installations requiring the manufacturer-described DMX512 control of electrical output channels. Electrical design, control programming, cabling and compatible loads must be confirmed for the specific installation. This product should not be selected solely from its photograph to establish output connector types or channel quantity.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CP0603CR-7 |
| Product type | DMX512-Controlled Distributed Power Distributor |
| Power input connection | 3-phase, 5-wire industrial plug |
| Catalog-listed input voltage | 90–240 V per phase |
| Catalog-listed input current | 32 A per phase |
| Output channel control | Individual power-channel control via DMX512 |
| Maximum output per channel | 16 A |
| Output connector type | Not specified in supplied catalog |
| Number of output channels | Not specified in supplied catalog |
| Enclosure | Waterproof aluminum-profile chassis |
| Protection rating | IP65 |
Manufacturer Catalog Clarification
Output configuration not specified: the source catalog repeats its power-input specification where an output-connection description would normally appear. It does not reliably establish the number of output sockets, the connector type, or the exact DMX512 channel mapping for CP0603CR-7. Accordingly, no output-channel count or connector format is claimed. The catalog’s 16 A per channel statement is preserved without deriving a total unit load rating.
Control terminology: the catalog describes intelligent power-channel control via DMX512, but does not explicitly confirm continuous dimming, RDM support or an on/off switching implementation for this model. Those functions have not been added to its specifications.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 24 (printed page 20). Any omitted configuration, electrical rating, dimensions, safety approvals or performance properties must be verified by the manufacturer before installation.
