Description

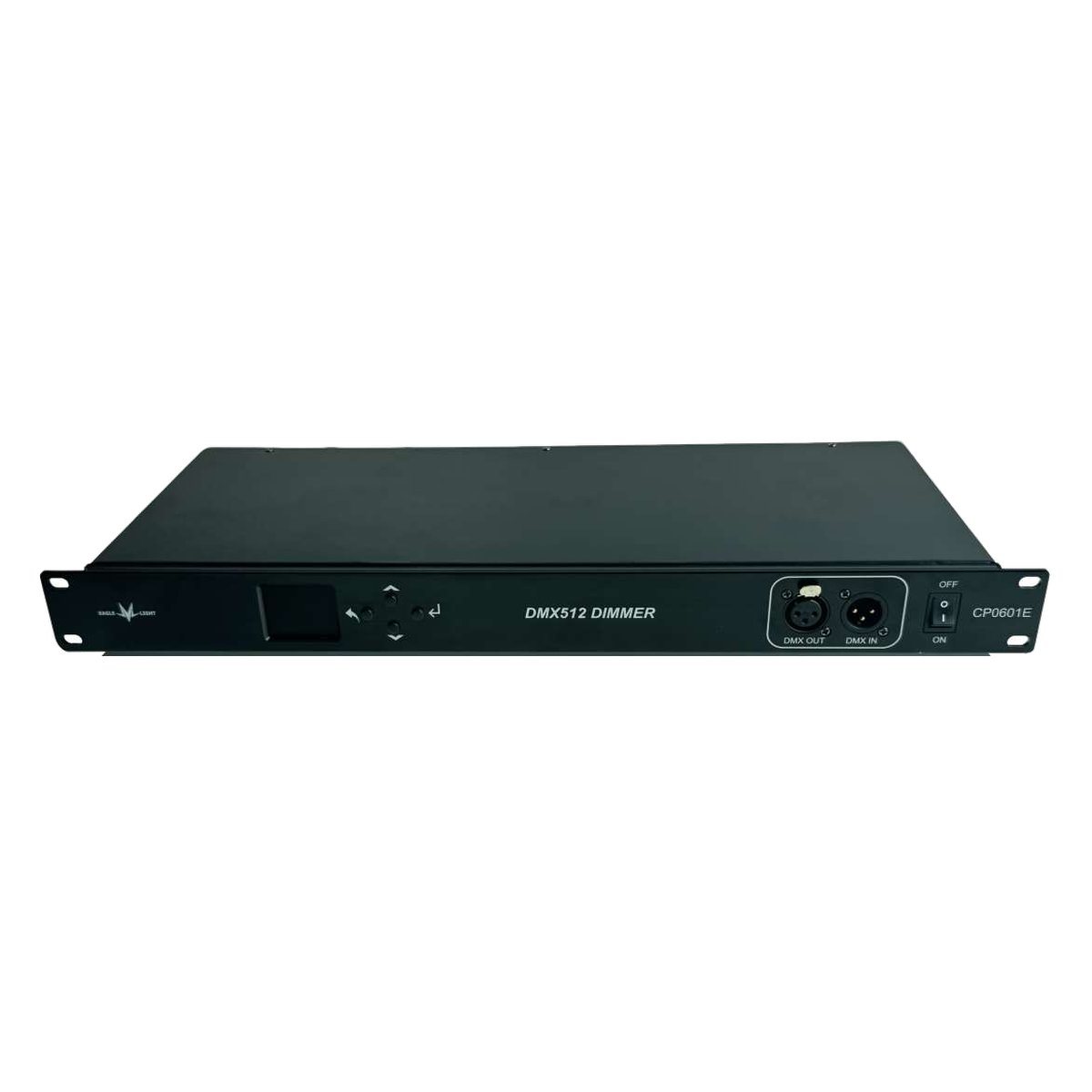

EAGLE LIGHT CP0601E 6-Channel RDM Intelligent Dimmer Controller
The EAGLE LIGHT CP0601E is a professional intelligent dimmer controller for RDM/DMX512-controlled dimming of compatible high-voltage LED and halogen lighting. The features below reflect the specifications published for this exact model in the EAGLE LIGHT catalog.
Key Features & Benefits
- Six-channel RDM/DMX512 dimming: Supports RDM/DMX512 signal-based six-channel AC high-voltage dimming.
- AC lighting applications: Catalog identifies dimmable high-voltage LED bulbs, LED strips and halogen lamps.

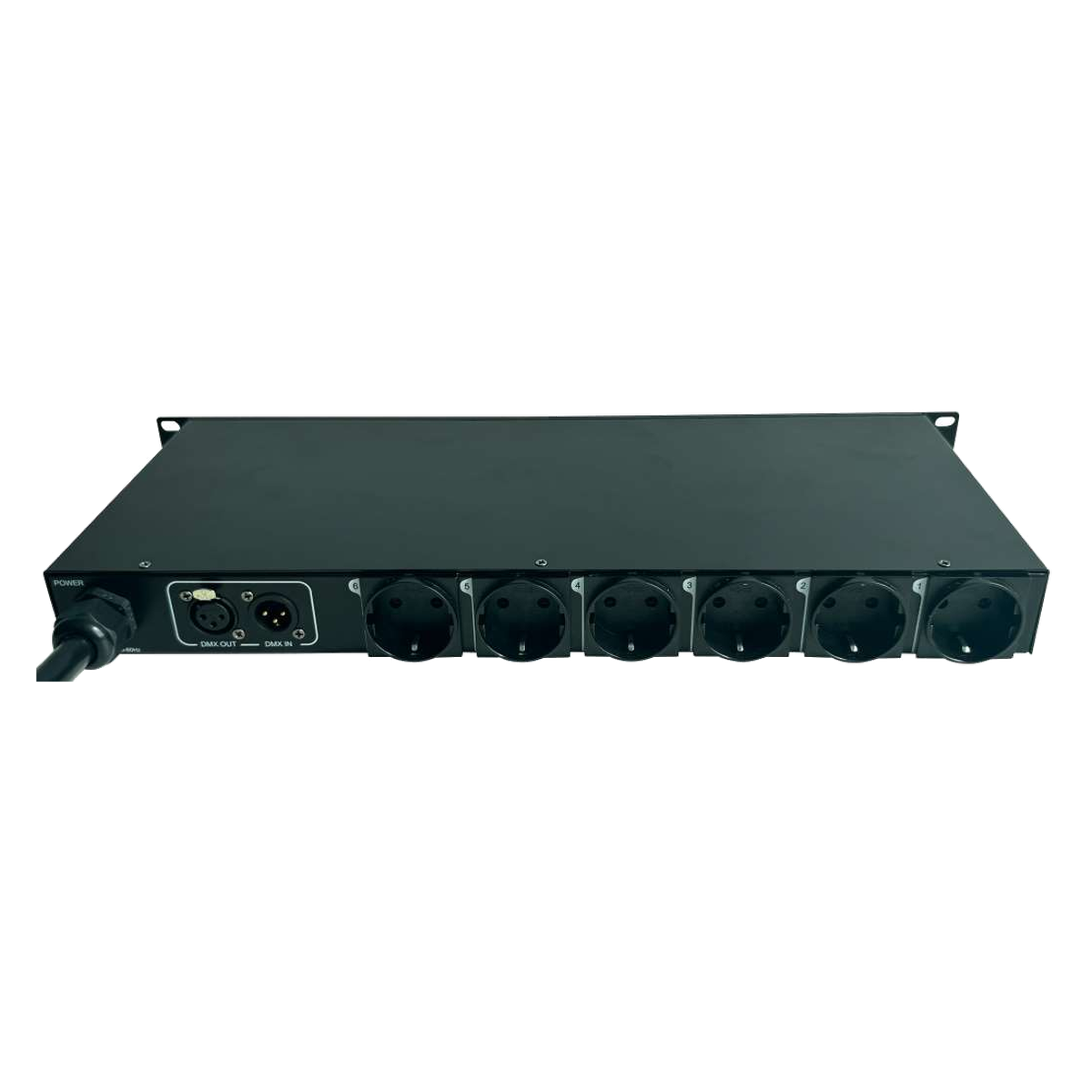

- European output sockets: Six European-style socket output channels are specified.
- Verified output ratings: Manufacturer lists up to 5 A and 1 kW per channel, with 6 kW total across six channels.
- Standard cabinet mounting: Designed in a cabinet-mount structure with an aluminum chassis described as quiet and heat-dissipating.
Professional Stage Lighting Applications
Designed for compatible AC lighting installations where individually controlled dimming is needed. Check the operating voltage, load behavior, socket format and electrical protection against the actual installation before connecting devices.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Model | CP0601E |
| Signal control | RDM / DMX512 |
| Power input | 90–240 V AC, 50–60 Hz |
| Dimming channels | 6 |
| Output configuration | 6 European-style sockets |
| Maximum per-channel current | 5 A |
| Maximum power per channel | 1 kW |
| Total stated output power | 6 kW |
| Documented loads | High-voltage dimmable LED bulbs, LED strips and halogen lamps |
| Mounting | Standard cabinet mounting structure |
| Chassis | Aluminum |
Model & Catalog Notes
Manufacturer model CP0601E is shown in the catalog entry. A cabinet-mount structure is documented, but rack-unit height and physical dimensions are not specified. Electrical compatibility and supply wiring must be confirmed for the installation.
Source: EAGLE LIGHT manufacturer catalog supplied in this conversation, PDF page 21. Unstated dimensions, electrical characteristics, certifications and performance claims have not been estimated.
