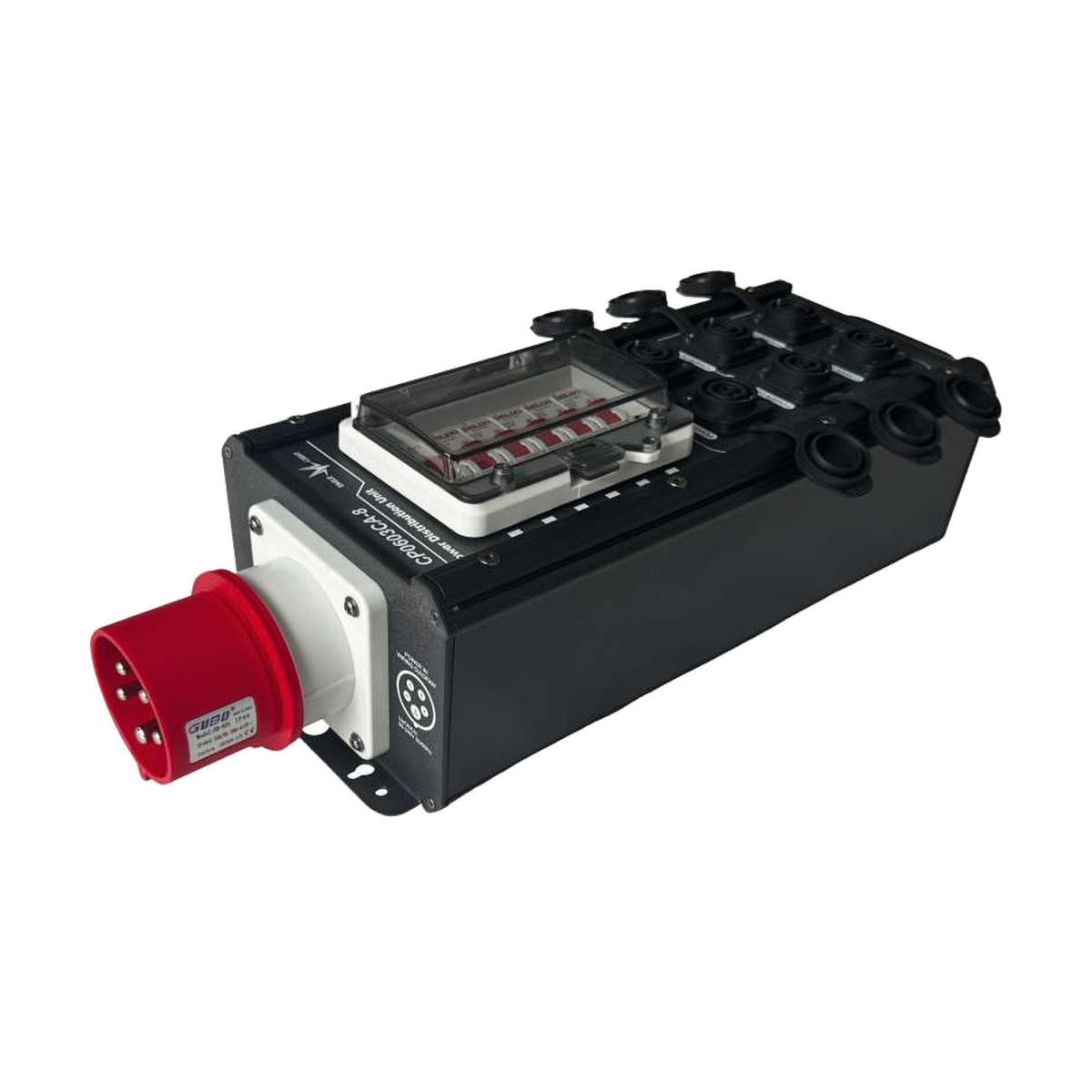

EAGLE LIGHT CP0603CA-8 — IP65 6-Channel TRUE1 Power Distributor
The EAGLE LIGHT CP0603CA-8 converts a three-phase five-wire industrial plug input into six single-phase output paths equipped with 16 A TRUE1 sockets. Every channel has an overcurrent protection switch and a power indicator light. The manufacturer specifies an IP65 aluminum-profile waterproof chassis.
Key Features
- Three-phase to single-phase distribution: Converts the industrial input into six single-phase power outputs.
- Six TRUE1 connections: Each output is a 16 A TRUE1 socket.
- Protected power channels: Individual overcurrent protection switches and power lights are documented for each output.
- IP65 protection: Uses an aluminum-profile waterproof chassis with IP65 protection.
Professional Installation Applications
A six-way TRUE1 power-distribution option for professional stage systems requiring individual channel protection and power indication. This model is not described as offering DMX512 dimming or RDM control, so neither is claimed.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CP0603CA-8 |
| Product family | Distributed Power Distributor Series |
| Power input | Three-phase, five-wire industrial plug |
| Input voltage | 90–240 V per phase |
| Input current | 32 A per phase |
| Power outputs | 6 TRUE1 sockets, 16 A each |
| Power distribution | Three-phase input to 6 single-phase outputs |
| Channel protection | Overcurrent protection switch per output |
| Channel indication | Power indicator light per output |
| Enclosure | Aluminum-profile waterproof chassis |
| Protection rating | IP65 |
Selection & Safety Notes
Confirm connector compatibility, electrical supply requirements, suitable protective devices and output loads before installation. Specifications not provided for this exact model are not estimated.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 24.
