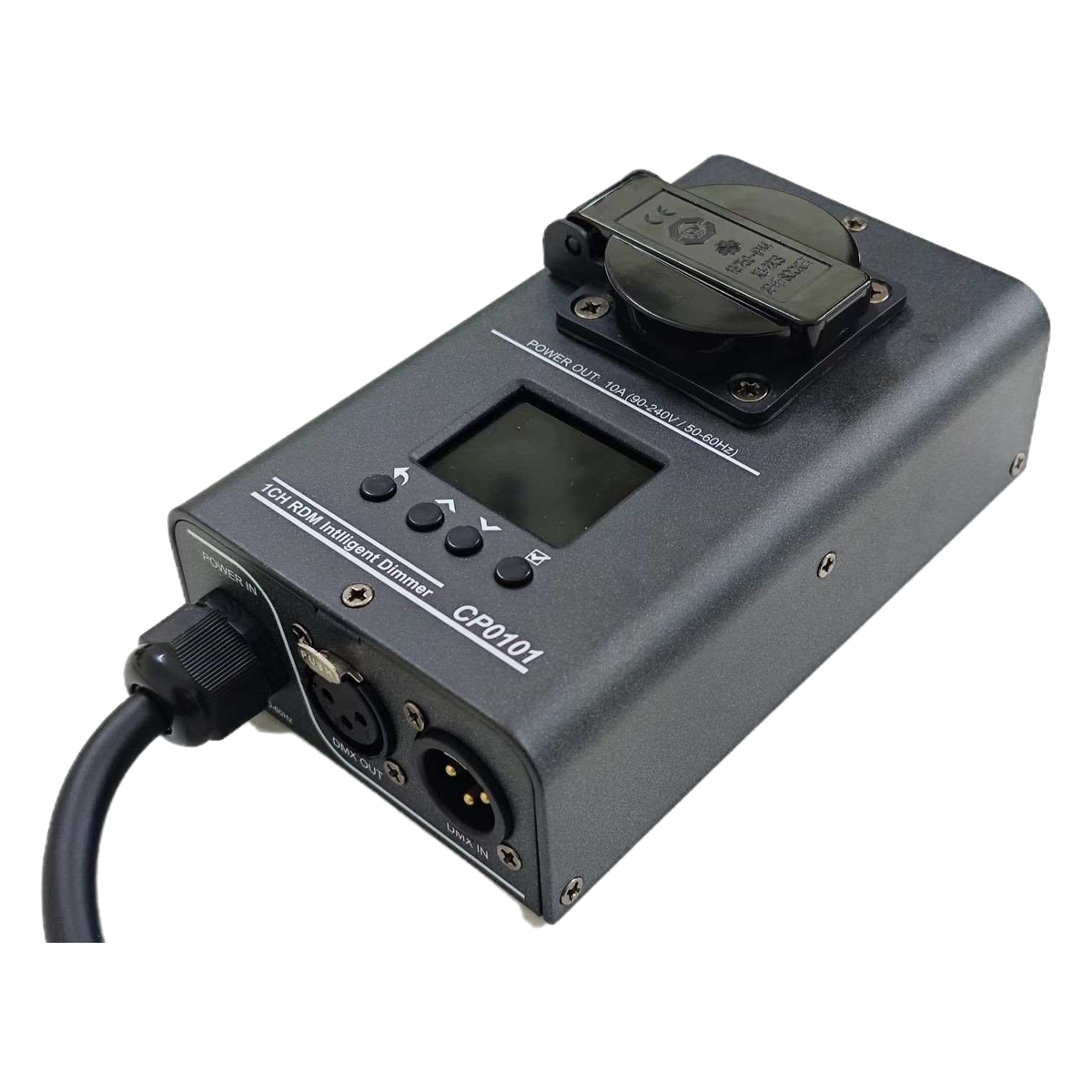

EAGLE LIGHT CP0101D 1-Channel RDM Intelligent Dimmer Controller
The EAGLE LIGHT CP0101D is a professional intelligent dimmer controller for RDM/DMX512-controlled dimming of compatible high-voltage LED and halogen lighting. The features below reflect the specifications published for this exact model in the EAGLE LIGHT catalog.
Key Features & Benefits
- RDM/DMX512 AC dimming: Supports RDM/DMX512 signal control for AC high-voltage dimming.
- Documented lighting applications: Compatible with high-voltage dimmable LED bulbs, high-voltage LED strips and halogen lamps according to the manufacturer.
- Single European socket output: One European socket channel is specified, with a maximum output current of 5 A and power rating of 1 kW.
- Flexible mounting: Catalog lists lamp hook, DIN 35 mm rail, C45 rail bayonet and pipe clamp methods.
- Aluminum enclosure: Manufacturer describes an aluminum heat-dissipating chassis and quiet operation.
Professional Stage Lighting Applications
Designed for compatible AC lighting installations where individually controlled dimming is needed. Check the operating voltage, load behavior, socket format and electrical protection against the actual installation before connecting devices.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Model | CP0101D |
| Signal control | RDM / DMX512 |
| Power input | 90–240 V AC, 50–60 Hz |
| Dimming channels | 1 |
| Output type | 1 European socket |
| Maximum output current | 5 A |
| Maximum channel power | 1 kW |
| Documented loads | High-voltage dimmable LED bulbs, LED strips and halogen lamps |
| Mounting | Lamp hook; DIN 35 mm rail; C45 rail bayonet; pipe clamp |
| Chassis | Aluminum |
Model & Catalog Notes

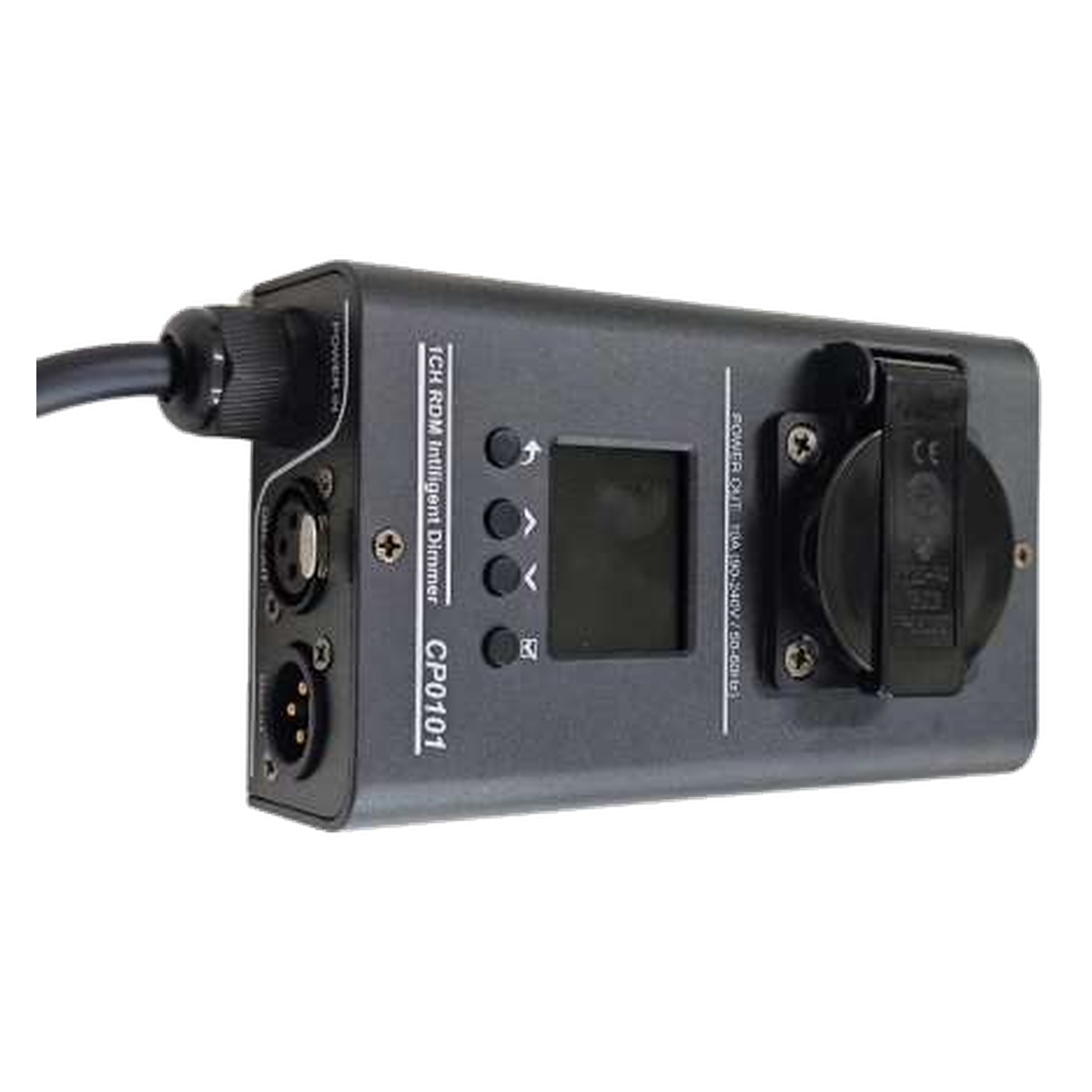

Model marking discrepancy: The supplied catalog text names the product CP0101D while the photographed device panel reads CP0101. The document does not establish whether these are identical hardware revisions. This product uses CP0101D as the catalog text model and the delivered hardware marking should be confirmed before ordering.
Source: EAGLE LIGHT manufacturer catalog supplied in this conversation, PDF page 21. Unstated dimensions, electrical characteristics, certifications and performance claims have not been estimated.
