Description

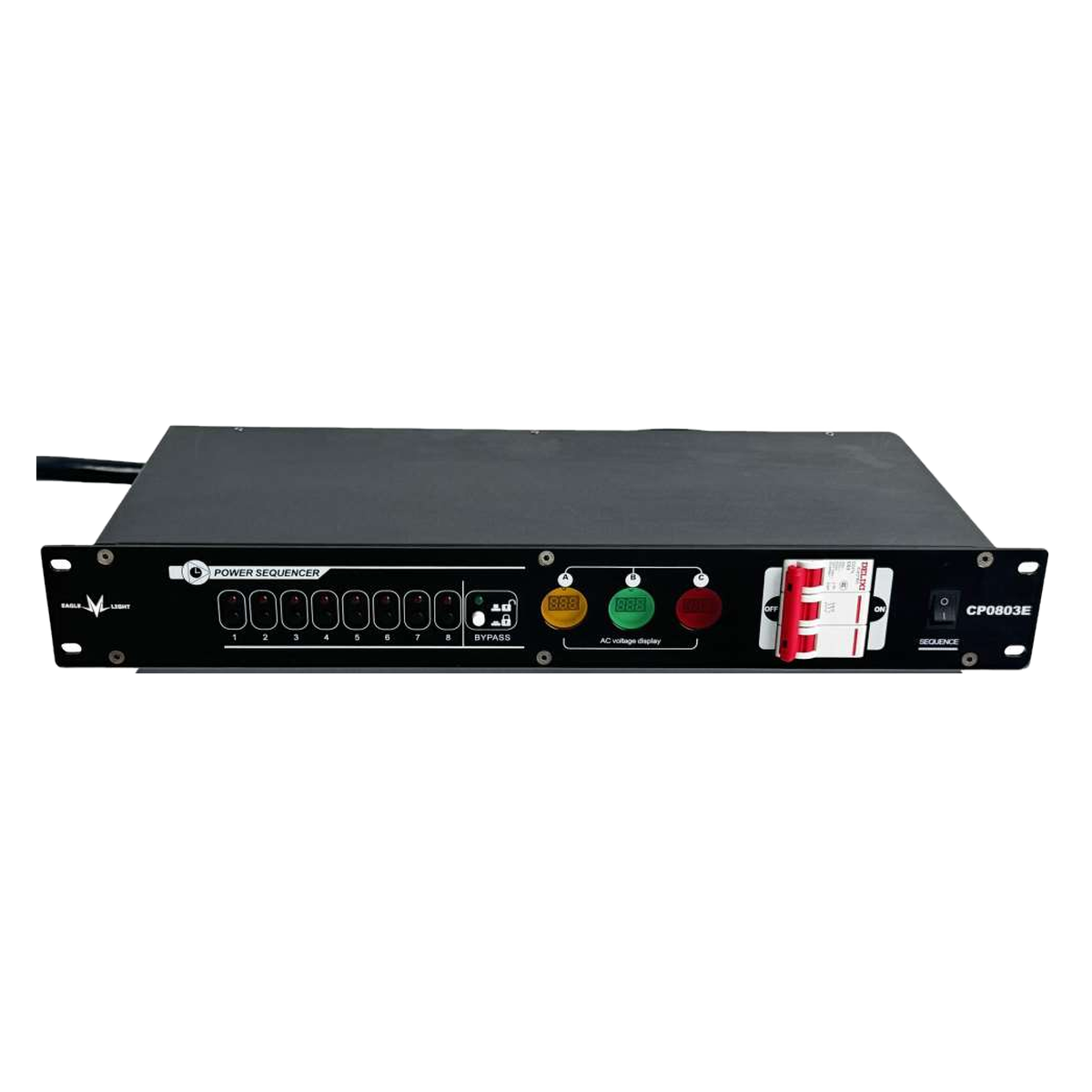

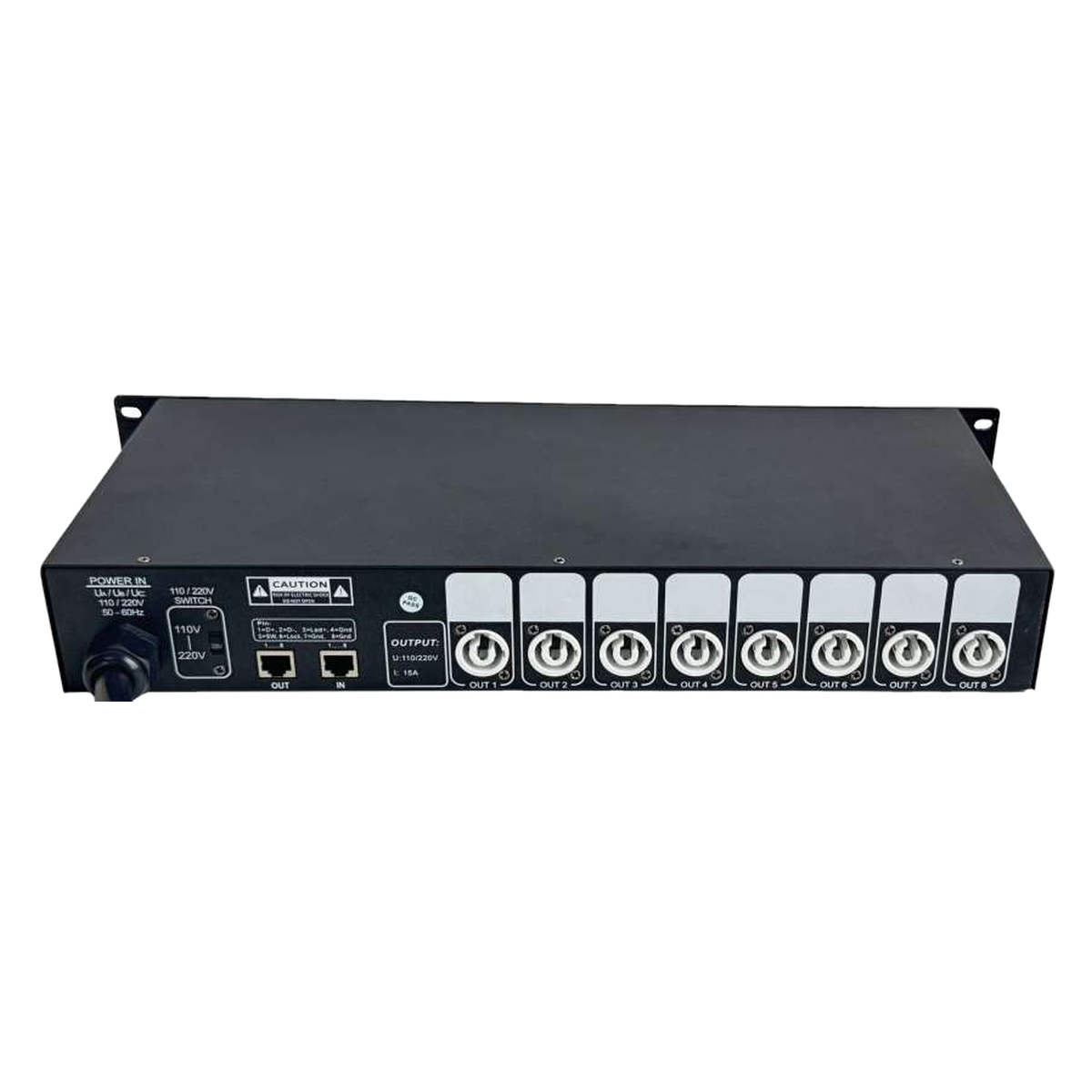

EAGLE LIGHT CP0803E 8-Channel Power Sequencer
The EAGLE LIGHT CP0803E is an eight-channel power sequencer for systems that require organized, sequential distribution of electrical power. The manufacturer specifies master/slave operation, single-control and central-control modes, three-phase five-wire power input, and an overcurrent-protection air switch in a 1.5U chassis.
Key Features & Benefits
- Multi-mode system operation: Master and slave operation together with single-control and central-control modes support the configurations listed in the catalog.
- Eight sequential power channels: A three-phase five-wire input supplies eight sequential power outputs.
- Overcurrent protection: An overcurrent-protection air switch is listed as part of the design.
- 1.5U enclosure: The catalog specifies a 1.5U chassis for equipment-rack planning.
Professional Power Management Applications
Designed for stage and event power-distribution layouts in which controlled sequencing and the documented master/slave or centralized operation are required. Verify actual supply and load compatibility using the manufacturer’s installation information.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Model | CP0803E |
| Product type | 8-Channel Power Sequencer |
| Operating modes | Master / Slave / Single Control / Central Control |
| Power input configuration | Three-phase, five-wire |
| Sequential outputs | 8 channels |
| Overcurrent protection | Air switch |
| Chassis size | 1.5U |
Model Selection Notes
Power sequencing, direct-output arrangements, control methods, socket configuration and channel load ratings vary between EAGLE LIGHT models. Select the exact product variant according to the technical specifications above. Do not assume features from another power sequencer model.
Technical information is limited to the original manufacturer catalog (PDF pages 18–19). Electrical specifications not stated for this exact model are deliberately omitted.
