Description

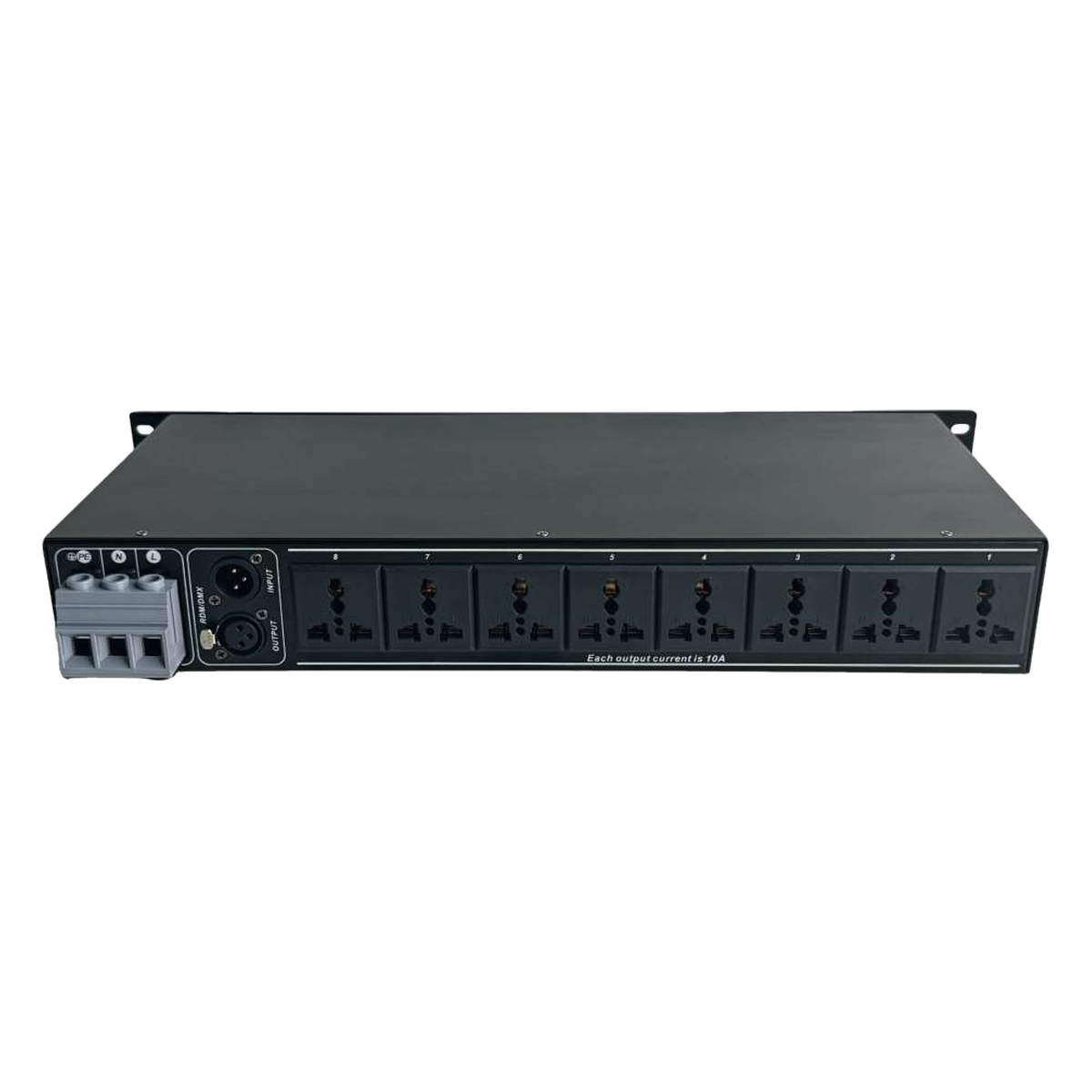

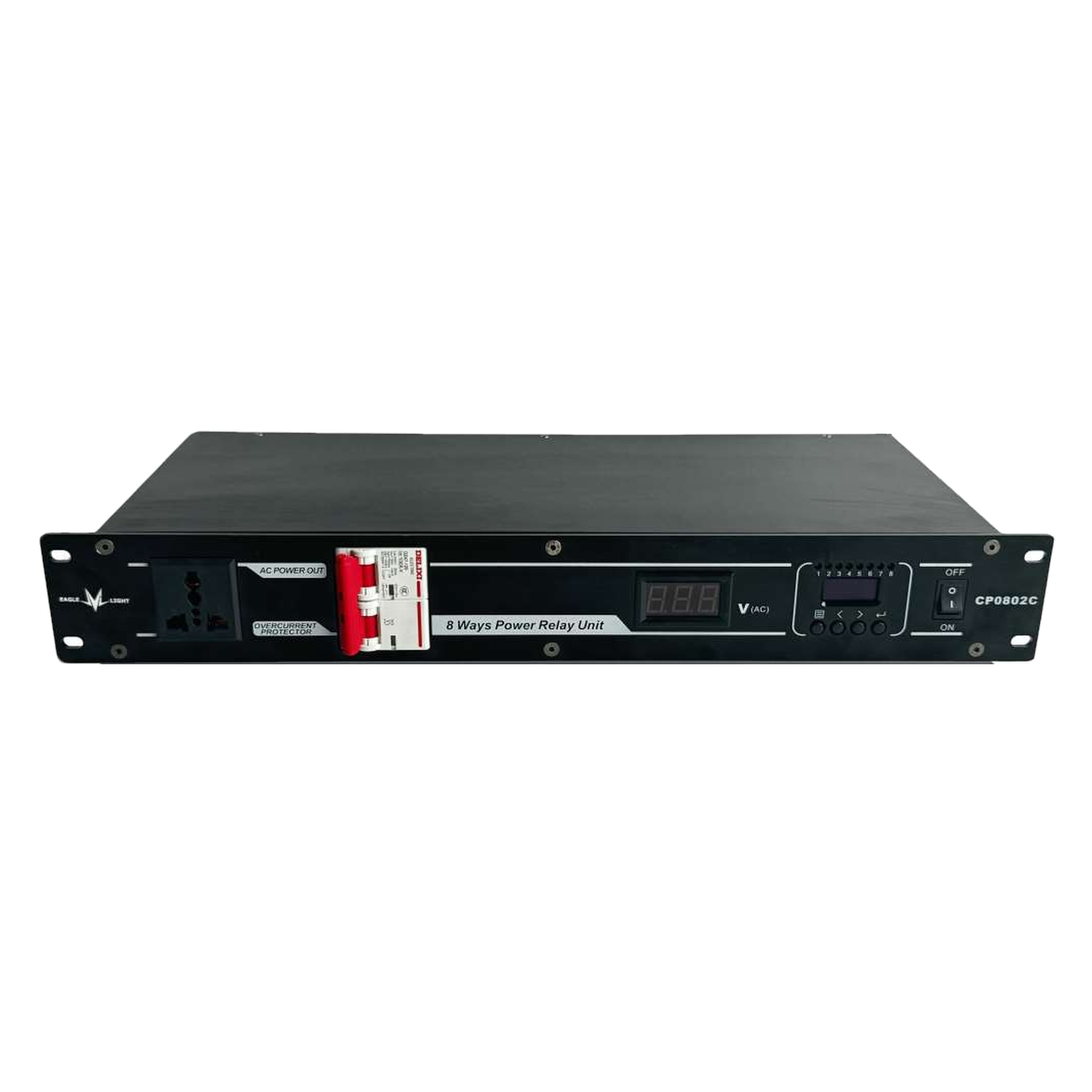

EAGLE LIGHT CP0802C 8-Channel Intelligent Power Sequencer
The EAGLE LIGHT CP0802C is an eight-channel intelligent switching power sequencer with DMX/RDM or RS485 signal control. It offers Sequencer and Intelligent Switch operating modes and a catalog-listed maximum switching power of 2,000 W for each channel.
Key Features & Benefits
- DMX/RDM or RS485 control: The manufacturer specifies operation through DMX/RDM signals or RS485.
- Selectable sequencing behavior: Choose between Sequencer Mode and Intelligent Switch Mode.
- Eight switching channels: The unit provides eight intelligent switching channels.
- 2,000 W channel maximum: The manufacturer lists maximum power per channel as 2,000 W.
Professional Power Management Applications
For professional power switching where DMX/RDM or RS485 control is required, the CP0802C provides two selectable control modes and eight channels. The higher catalog-listed per-channel maximum distinguishes it from the CP0802 socket variants.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Model | CP0802C |
| Product type | 8-Channel Intelligent Switching Power Sequencer |
| Control signal | DMX/RDM or RS485 |
| Operating modes | Sequencer / Intelligent Switch |
| Switching channels | 8 |
| Maximum power per channel | 2,000 W |
Model Selection Notes
Power sequencing, direct-output arrangements, control methods, socket configuration and channel load ratings vary between EAGLE LIGHT models. Select the exact product variant according to the technical specifications above. Do not assume features from another power sequencer model.
Technical information is limited to the original manufacturer catalog (PDF pages 18–19). Electrical specifications not stated for this exact model are deliberately omitted.
