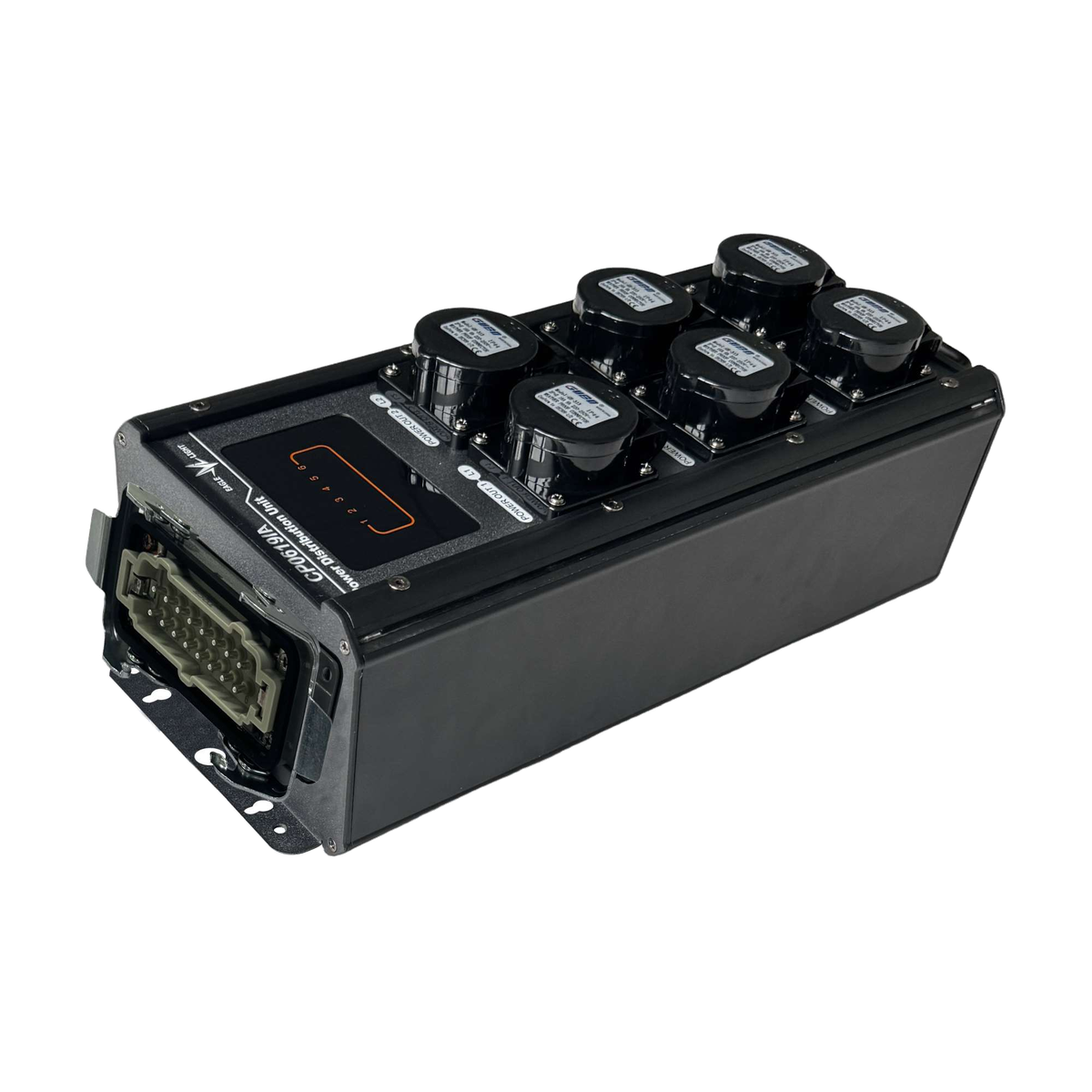

EAGLE LIGHT CP0619IA — IP65 6-Channel Heavy-Duty Power Distributor
The EAGLE LIGHT CP0619IA distributes power from a 16-pin heavy-duty male connector to six individual 16 A industrial female sockets. Each output is provided with a power indicator, and the catalog specifies a 90–240 V input range, 16 A per channel and an IP65-protected aluminum-profile chassis.
Key Features
- Heavy-duty multipin input: Uses the catalog-specified 16-pin heavy-duty male input connector.
- Six industrial outputs: Distributes the input to six 16 A industrial female socket channels.
- Per-channel indicators: Dedicated power lights provide visual indication of the outputs.
- IP65 chassis: The manufacturer specifies an aluminum-profile waterproof enclosure with IP65 protection.
Professional Installation Applications
Suitable for stage electrical-distribution layouts designed around a 16-pin heavy-duty connector and six industrial-output connections. Check power source and connector compatibility before use.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CP0619IA |
| Product family | Distributed Power Distributor Series |
| Input connection | 16-pin heavy-duty male connector |
| Input voltage | 90–240 V |
| Catalog current rating | 16 A per channel |
| Power outputs | 6 industrial female sockets, 16 A each |
| Channel status | Dedicated power indicator per output |
| Enclosure | Aluminum profile waterproof chassis |
| Protection rating | IP65 |
Selection & Safety Notes
Confirm equipment connections, supply requirements, appropriate electrical protection and output loads before installation. Technical values not specified in the manufacturer documentation are intentionally omitted.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 23.
