Description

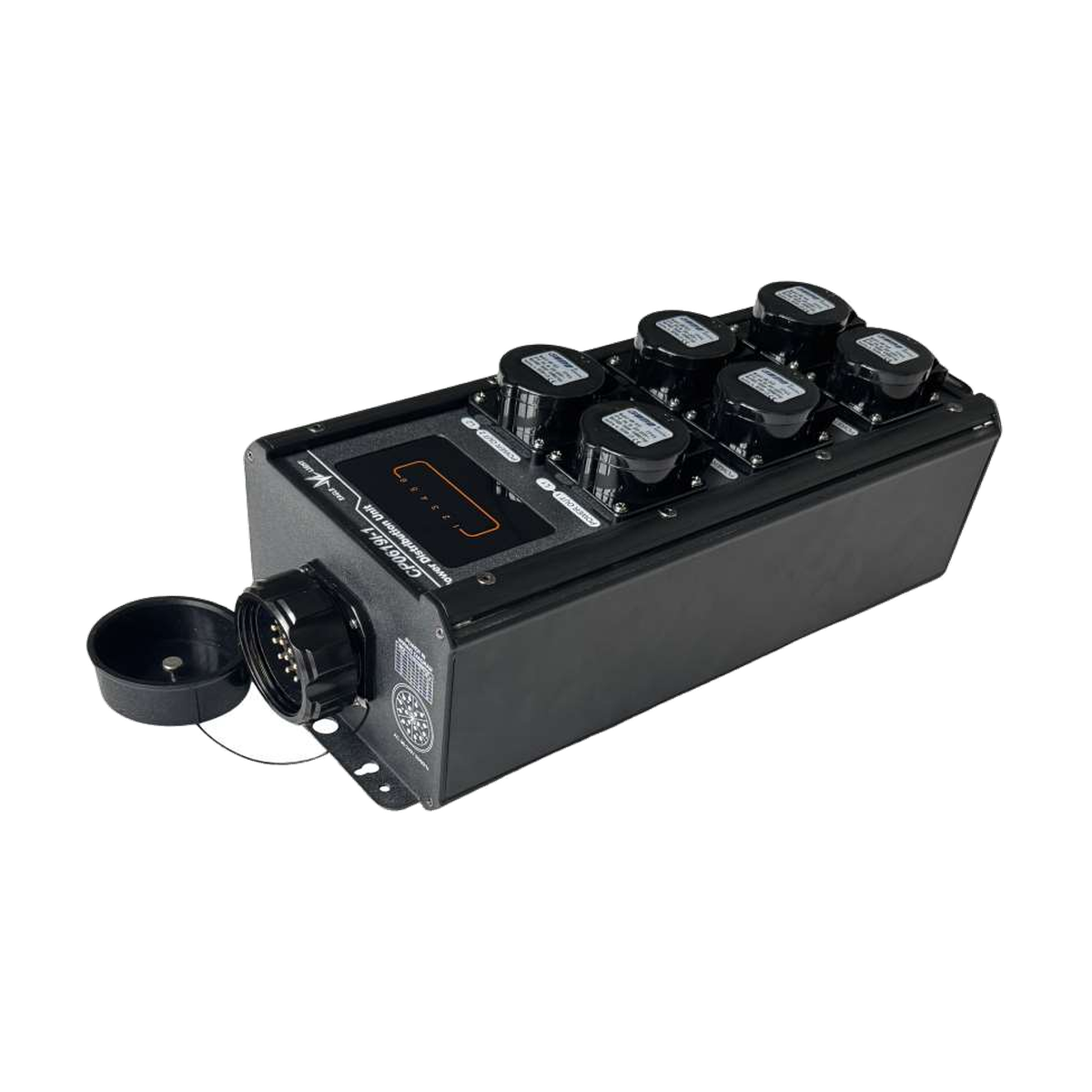

EAGLE LIGHT CP0619I-1 — IP65 6-Channel Industrial Power Distributor
The EAGLE LIGHT CP0619I-1 converts a 19-pin male power-connector input into six industrial female socket outputs. The unit is documented with a 90–240 V input range, a 16 A-per-channel specification, an individual power indicator on each channel, and an IP65-rated aluminum-profile waterproof chassis.
Key Features
- Multipin-to-individual distribution: Converts the 19-pin power input into six separate industrial-socket power outputs.
- Visible power status: Each of the six output channels is equipped with a dedicated power indicator light.
- Industrial connection format: The manufacturer identifies six 16 A industrial female output sockets.
- Weather-resistant enclosure: The catalog states an IP65 protection rating for the aluminum-profile chassis.
Professional Installation Applications
For distributed stage power systems that require individual industrial sockets fed from a 19-pin source. Match each output load and input connector to the manufacturer’s documented electrical ratings.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CP0619I-1 |
| Product family | Distributed Power Distributor Series |
| Input connection | 19-pin male power connector |
| Input voltage | 90–240 V |
| Catalog current rating | 16 A per channel |
| Power outputs | 6 industrial female sockets, 16 A each |
| Channel status | Individual power indicator per channel |
| Enclosure | Aluminum profile waterproof chassis |
| Protection rating | IP65 |
Selection & Safety Notes
Confirm equipment connections, supply requirements, appropriate electrical protection and output loads before installation. Technical values not specified in the manufacturer documentation are intentionally omitted.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 23.
