Description

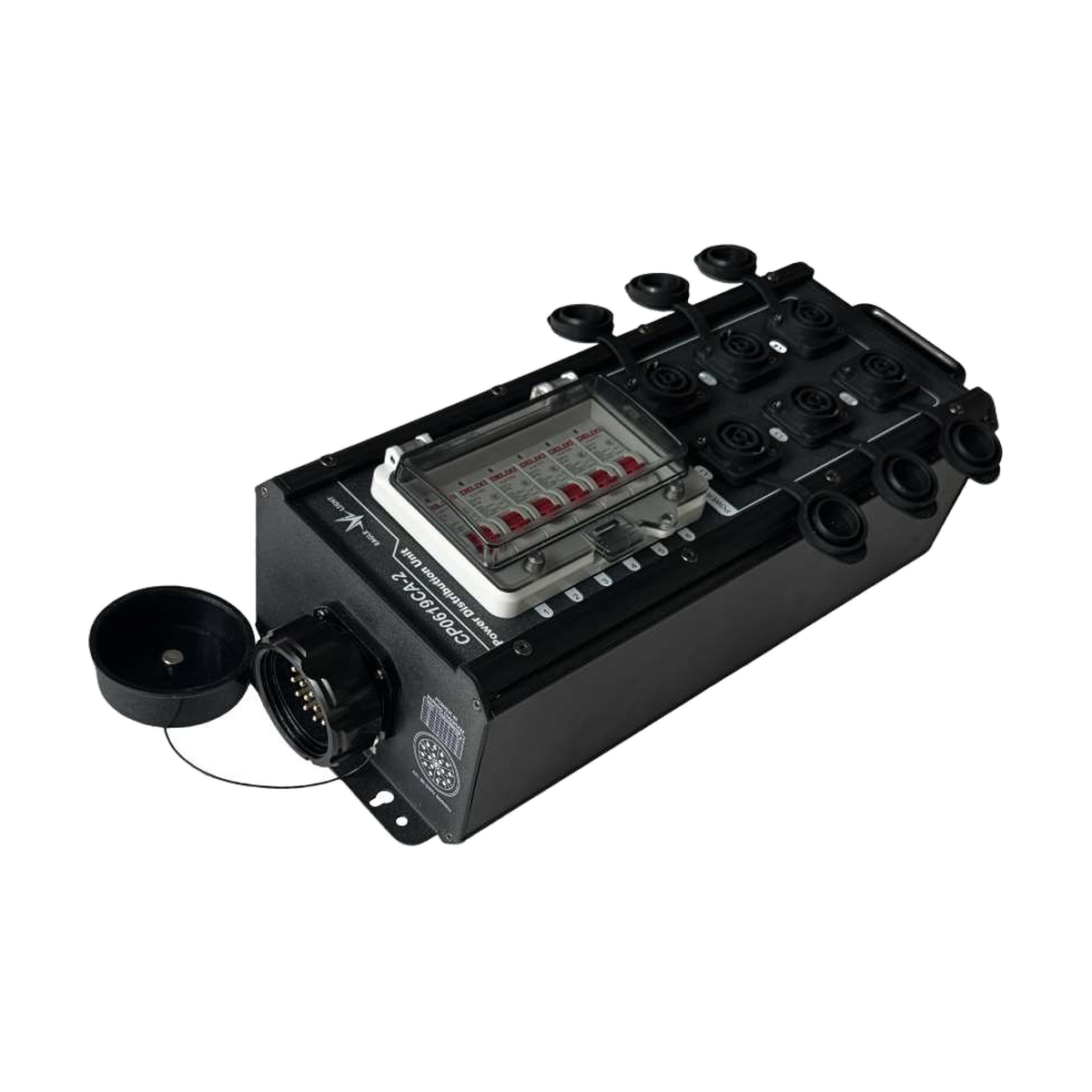

EAGLE LIGHT CP0619CA-2 — IP65 6-Channel TRUE1 Power Distributor
The EAGLE LIGHT CP0619CA-2 converts a 19-pin male connector input into six 16 A TRUE1 female connector outputs. The manufacturer describes per-channel power indicators, a 90–240 V input range, a 16 A-per-channel specification and an IP65-protected aluminum-alloy enclosure.
Key Features
- TRUE1 output configuration: Provides six TRUE1 female output connections identified as 16 A channels.
- 19-pin to six-way conversion: The power connector input is distributed across six separate TRUE1 outputs.
- Channel indicators: Each channel has a dedicated power indication light.
- IP65 construction: The supplied catalog specifies an IP65 aluminum-alloy waterproof chassis.
Professional Installation Applications
Intended for professional installations requiring six TRUE1 output connections from a 19-pin power input. Select the model according to the actual connector design and applicable electrical requirements.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CP0619CA-2 |
| Product family | Distributed Power Distributor Series |
| Input connection | 19-pin male connector |
| Input voltage | 90–240 V |
| Catalog current rating | 16 A per channel |
| Power outputs | 6 TRUE1 female connectors, 16 A each |
| Channel status | Power indicator on each channel |
| Enclosure | Aluminum-alloy waterproof chassis |
| Protection rating | IP65 |
Selection & Safety Notes
Confirm equipment connections, supply requirements, appropriate electrical protection and output loads before installation. Technical values not specified in the manufacturer documentation are intentionally omitted.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 23.
