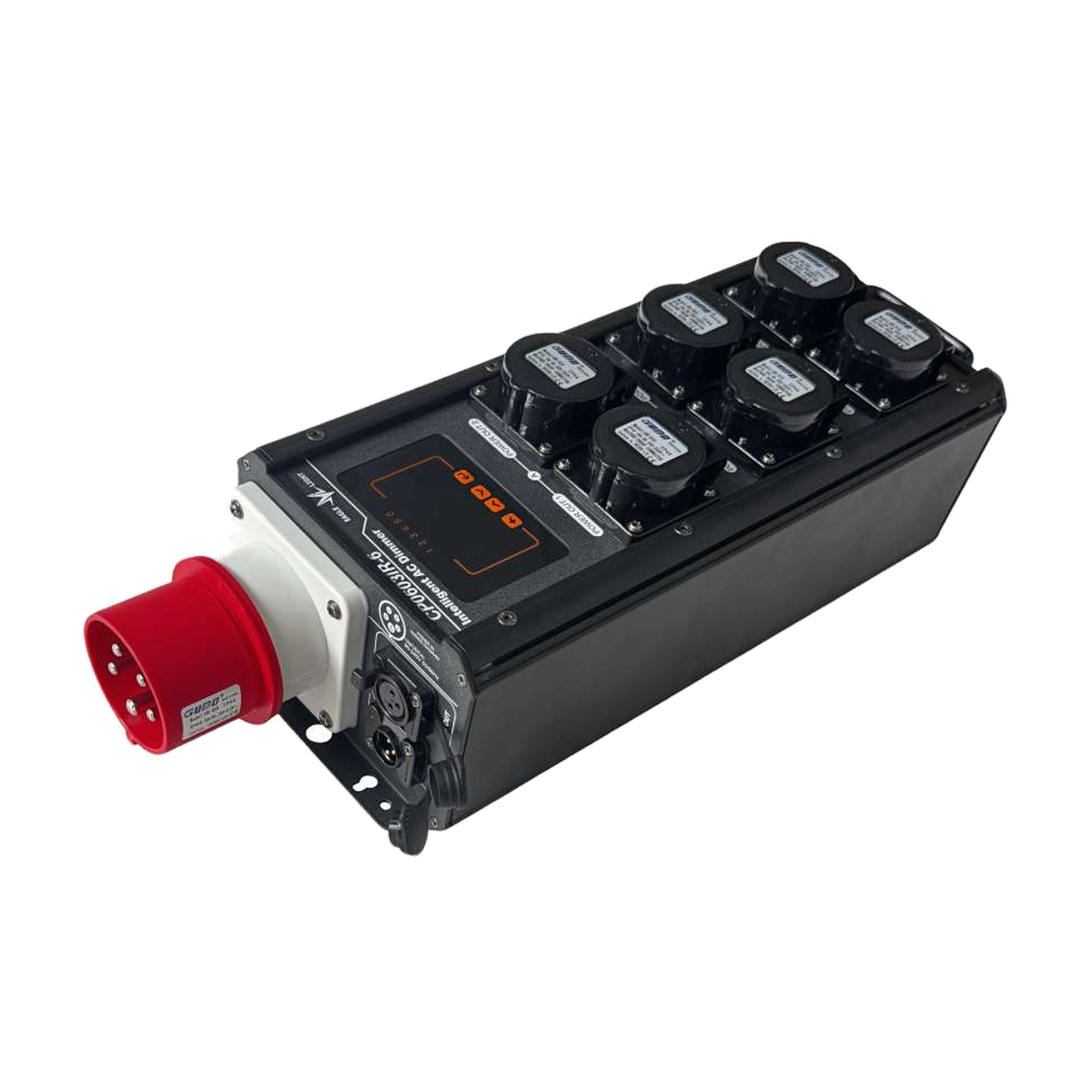

EAGLE LIGHT CP0603IR-6 — IP65 6-Channel DMX512 Power Controller
The EAGLE LIGHT CP0603IR-6 is a six-channel distributed power controller that uses DMX512 signals for intelligent control of individual output power channels. The manufacturer specifies a three-phase five-wire industrial plug, six 16 A industrial female sockets, 16 A maximum per channel and an IP65 aluminum-profile housing.
Key Features
- Individual DMX512 power control: The manufacturer describes intelligent control of each output power channel by DMX512.
- Six 16 A industrial outputs: Six individual industrial female socket connections are cataloged.
- Three-phase industrial supply: Uses the documented three-phase, five-wire plug input.
- IP65 protective chassis: The enclosure has the manufacturer-specified IP65 rating.
Professional Installation Applications
Intended for stage electrical distribution where DMX512-based power-channel control is required. Unlike the separate CP0603ID-6 catalog entry, this model is not explicitly described as a dimmer for LED and halogen lamps, so that capability is not claimed.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CP0603IR-6 |
| Product family | Distributed Power Distributor Series |
| Power input | Three-phase, five-wire industrial plug |
| Input voltage | 90–240 V per phase |
| Input current | 32 A per phase |
| Power outputs | 6 industrial female sockets, 16 A each |
| Channel control | Individual power-channel control via DMX512 |
| Maximum channel current | 16 A |
| Enclosure | Aluminum-profile waterproof chassis |
| Protection rating | IP65 |
Selection & Safety Notes
Confirm connector compatibility, electrical supply requirements, suitable protective devices and output loads before installation. Specifications not provided for this exact model are not estimated.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 24.
