Description

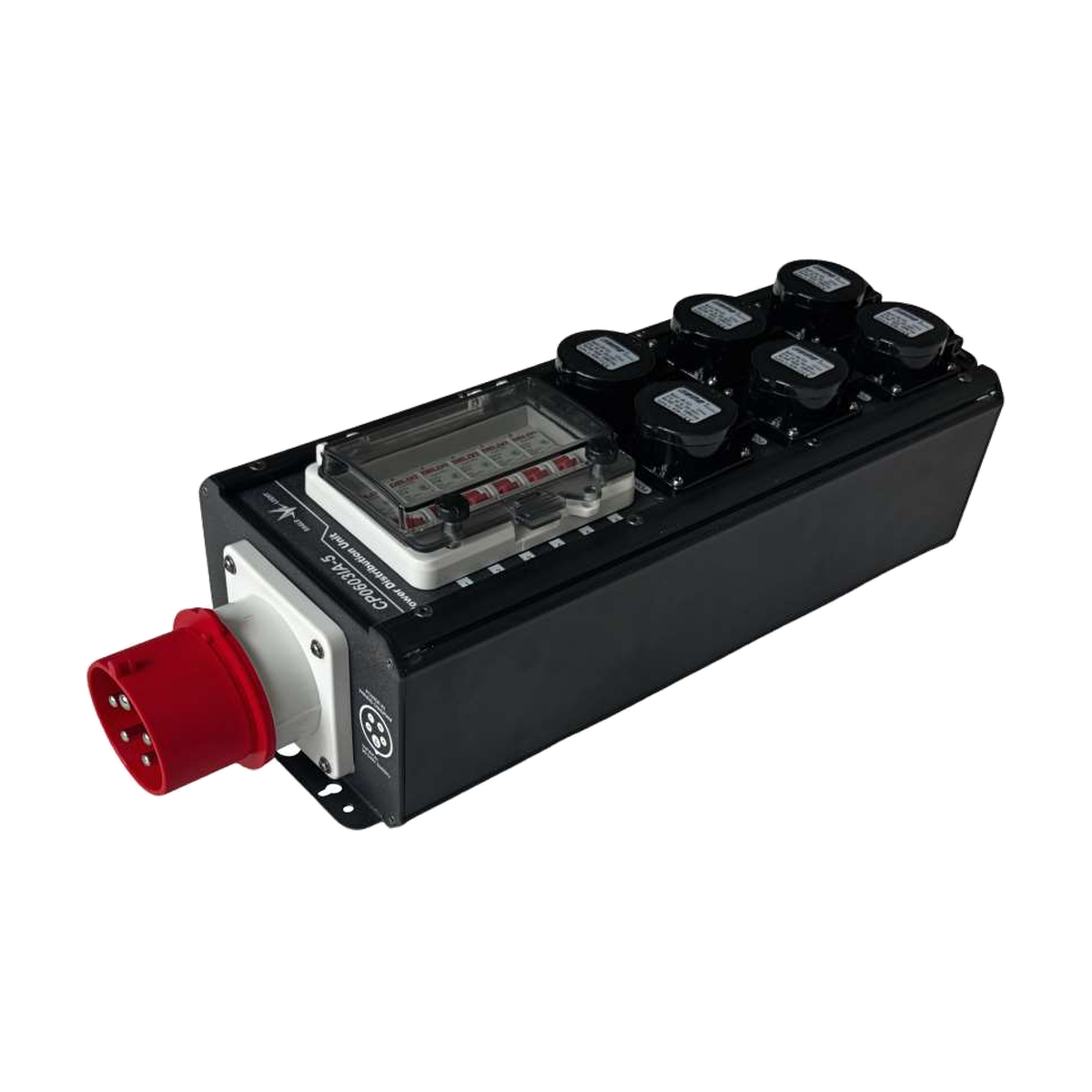

EAGLE LIGHT CP0603IA-5 — 6-Channel Three-Phase Industrial Power Distributor
The EAGLE LIGHT CP0603IA-5 converts a three-phase five-wire industrial plug supply into six single-phase power outputs. The catalog lists 90–240 V and 32 A per phase at the input, six 16 A industrial socket output channels and an overcurrent protection switch with a power indicator on each channel.
Key Features
- Six single-phase output paths: Distributes three-phase input power to six individual single-phase connections.
- Industrial socket outputs: Six 16 A industrial sockets are specified in the original catalog.
- Individual channel protection: Each output is equipped with its own overcurrent protection switch.
- Status at each output: Each channel also has a power-indication light.
Professional Installation Applications
Used for professional stage power layouts that require a three-phase input converted into six individually protected single-phase industrial outputs. The catalog does not specify an IP protection rating for this exact model, so no such rating is claimed.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CP0603IA-5 |
| Product family | Distributed Power Distributor Series |
| Power input | Three-phase, five-wire industrial plug |
| Input voltage | 90–240 V per phase |
| Input current | 32 A per phase |
| Power outputs | 6 industrial sockets, 16 A each |
| Power distribution | Three-phase input to 6 single-phase outputs |
| Per-output protection | Overcurrent protection switch |
| Output indication | Power indicator light per channel |
Selection & Safety Notes
Confirm connector compatibility, electrical supply requirements, suitable protective devices and output loads before installation. Specifications not provided for this exact model are not estimated.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 23.
