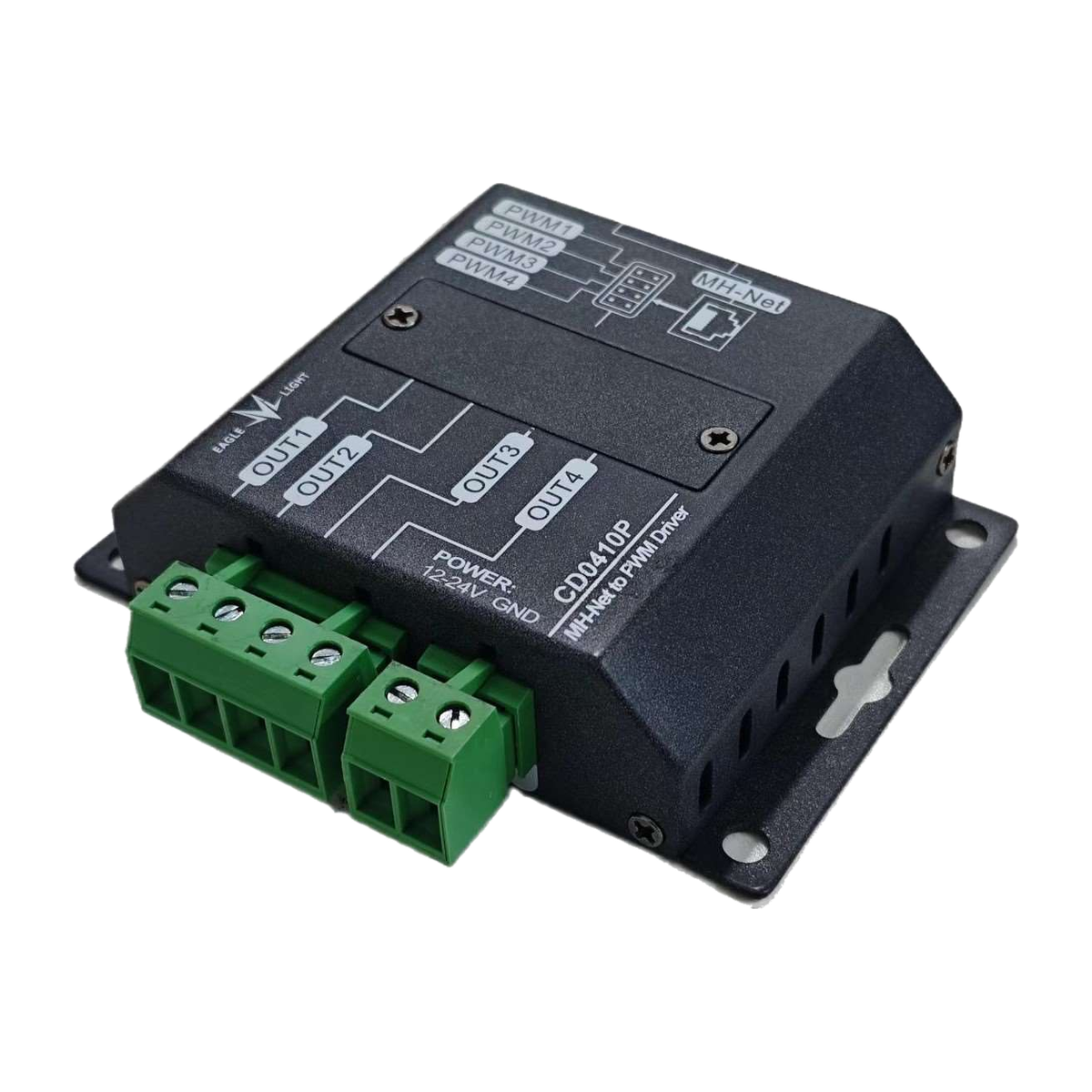

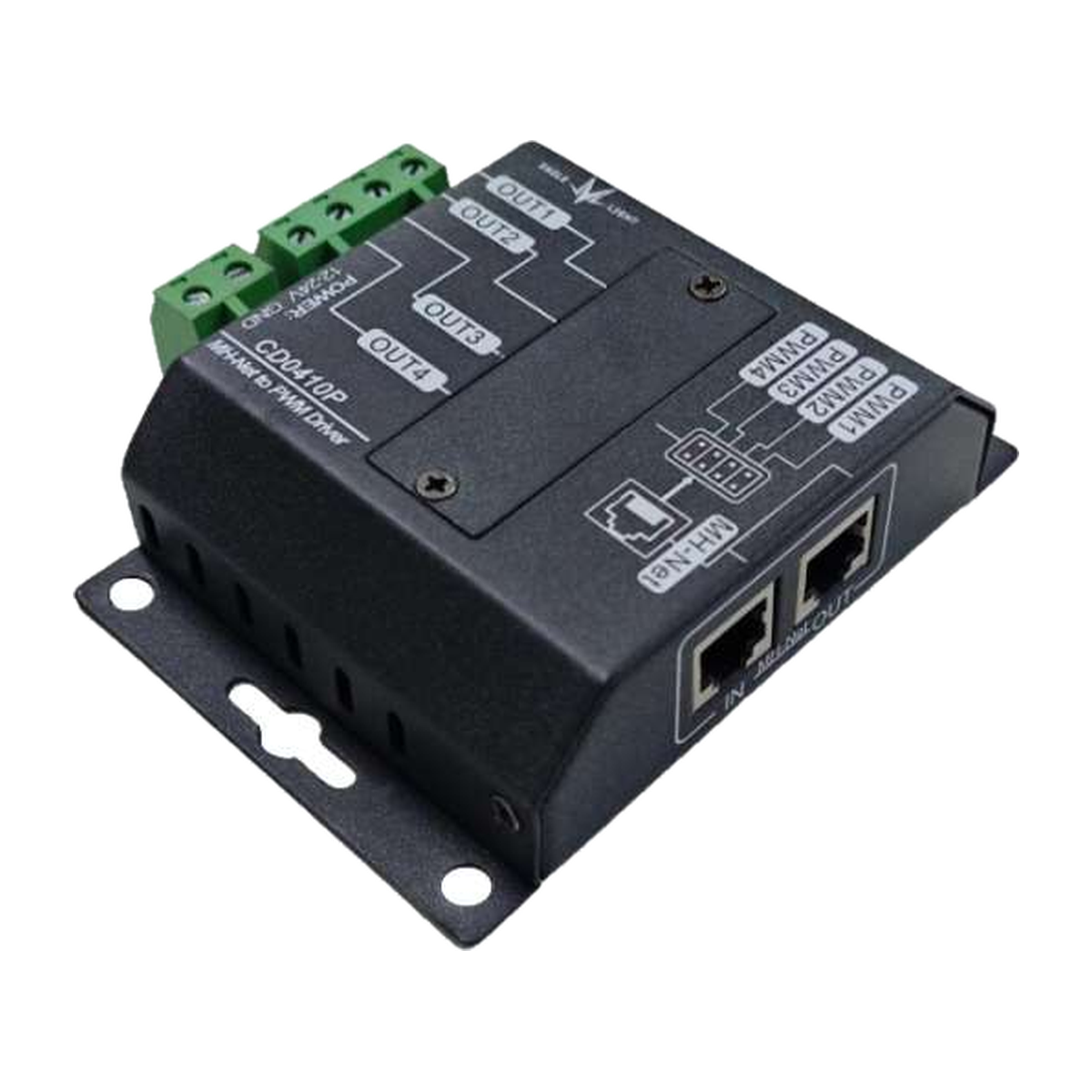

EAGLE LIGHT CD0410P 4-Channel MH-Net LED Dimming Driver

EAGLE LIGHT CD0410P four-channel MH-Net LED dimming driver. Converts MH-Net dimming data into LED driving signals, with up to 10 A output current per channel and cascading for distributed installations.

Description

EAGLE LIGHT CD0410P 4-Channel MH-Net LED Dimming Driver — Professional MH-Net Lighting Control

The EAGLE LIGHT CD0410P is a four-channel MH-Net LED dimming driver built for distributed LED lighting systems. It converts MH-Net dimming data into LED driving signals, delivering a manufacturer-specified maximum driving current of 10 A per channel. Multiple drivers can be cascaded to place dimming outputs where they are needed across an installation.

Key Features & Benefits

  • Four-channel LED driving: Converts incoming MH-Net dimming signals into four LED driving signal channels.
  • Up to 10 A per channel: The manufacturer catalog specifies a maximum driving current of 10 A for each channel.
  • Cascadable driver layout: Multiple CD0410P driver units can be connected in cascade for distributed LED installations.
  • Distributed installation support: Designed for system layouts in which LED driving units are positioned at multiple locations along an MH-Net signal line.

Professional Application & System Integration

Use CD0410P as an MH-Net-to-LED driver in installations designed around compatible MH-Net dimming signals. The manufacturer’s system diagram shows repeated units driving LED strip channels in a distributed configuration. Verify LED supply voltage, wiring, load compatibility and any required upstream MH-Net equipment independently; the supplied catalog does not provide those installation ratings for this device.

Verified Technical Specifications

Brand EAGLE LIGHT
Model CD0410P
Product type 4-Channel MH-Net Dimming Driver
Incoming signal MH-Net dimming signal
Output type LED driving signals
Driving channels 4
Maximum driving current 10 A per channel
Multi-unit operation Cascading supported

Model Selection Guidance

CD0410P is the four-channel LED driving endpoint. It is not the CD2406MA RDM/DMX512-to-MH-Net signal controller; their functions should not be interchanged.

Technical details are limited to the user-supplied EAGLE LIGHT manufacturer’s catalog, PDF page 22 (printed page 18). Unsupported voltage, power, dimensions, protection ratings and certifications have not been estimated.
