REDJET STROBE 9620LS is a motorized pixel strobe light designed for professional stage, touring, and rental applications. It delivers powerful strobe effects combined with RGB pixel mapping, smooth motorized movement, and multiple DMX control modes for dynamic and creative lighting designs.
STROBE 9620LS
Pricing available upon request.
Please contact our sales team for technical consultation and quotation.
REDJET STROBE 9620LS
Motorized Pixel Strobe Light
Product Overview
REDJET STROBE 9620LS is a motorized pixel strobe designed for professional stage, touring, and rental use.
It combines high-impact strobe performance with RGB pixel effects and wide movement range for dynamic looks.
Control options include DMX512, auto programs, sound activation, master/slave, and RDM.
Key Features
- Motorized movement: X (Tilt) 190° • Y (Tilt) 540°
- High-impact strobe + wash (dyeing) + built-in effects
- 32-bit smooth linear dimming (0–100%)
- Strobe frequency: 1–30 Hz
- Wide beam angle: 120°
- DMX + Auto (self-propelled) + Sound + Master/Slave + RDM
- Multiple DMX channel modes: 8CH / 22CH / 43CH / 314CH
Technical Specifications
| Product Type | Motorized Pixel Strobe Light |
|---|---|
| Input Voltage | AC 100–240 V, 50/60 Hz |
| Power Consumption | 300 W |
| Light Source | 864 RGB + 180 W (as stated in the user manual) |
| Segments / Sections | 96 + 20 |
| Dimming | 32-bit linear dimming (0–100%) |
| Strobe Frequency | 1–30 Hz |
| Beam Angle | 120° |
| Movement Range | X (Tilt): 190° • Y (Tilt): 540° |
| Control Modes | DMX512 • Auto (self-propelled) • Sound • Master/Slave • RDM |
| DMX Channel Modes | 8 CH / 22 CH / 43 CH / 314 CH |
| Working Temperature | -30 °C to +50 °C |
| Housing | Metal, black |
| IP Rating | IP20 |

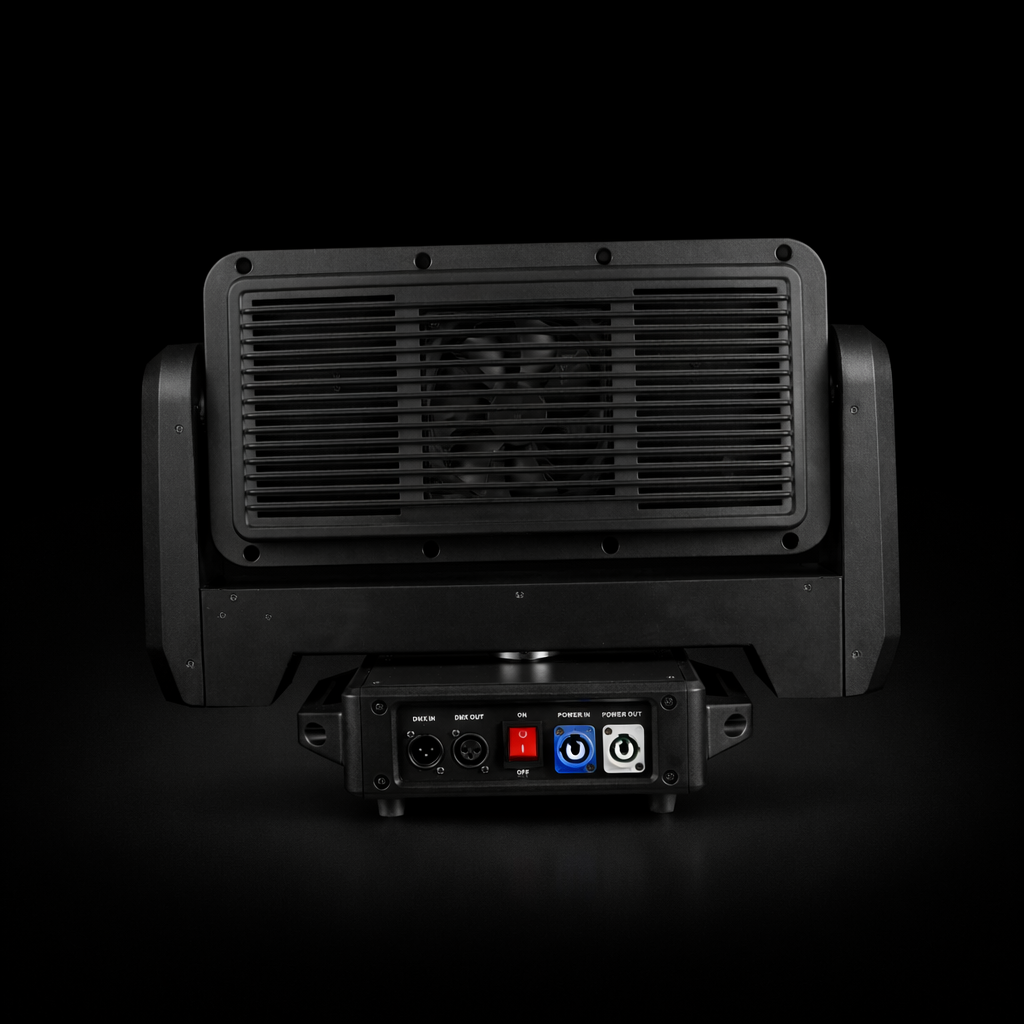

| Connections | DMX512 In/Out • Power In/Out |
Control
- DMX512
- Auto Programs (Self-propelled)
- Sound Activation
- Master / Slave
- RDM
Applications
- Touring & Rental
- Concert Stages
- Clubs & Live Venues
- Broadcast / Camera Use
- Pixel FX & Dynamic Looks
Downloads
