Description
Product Overview

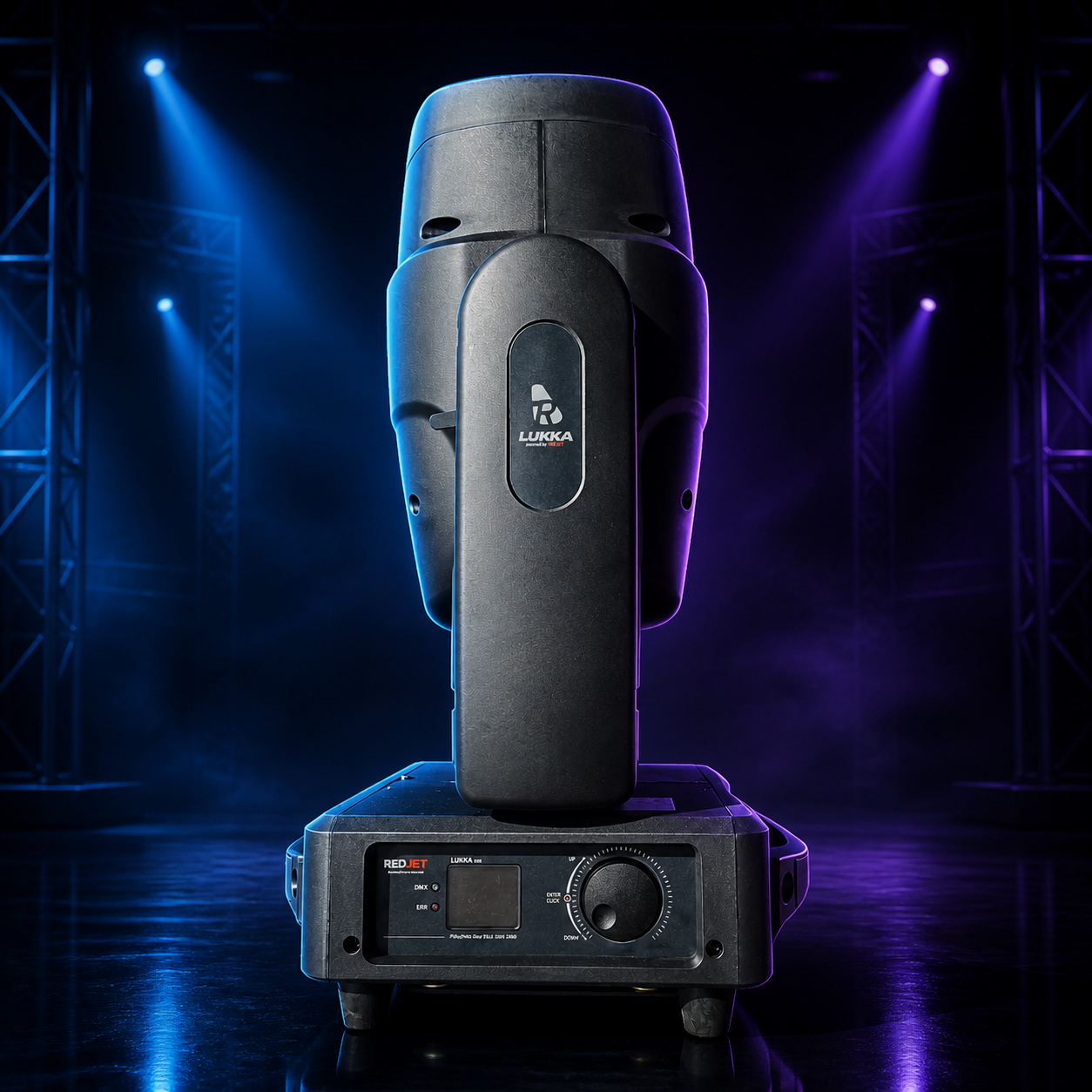

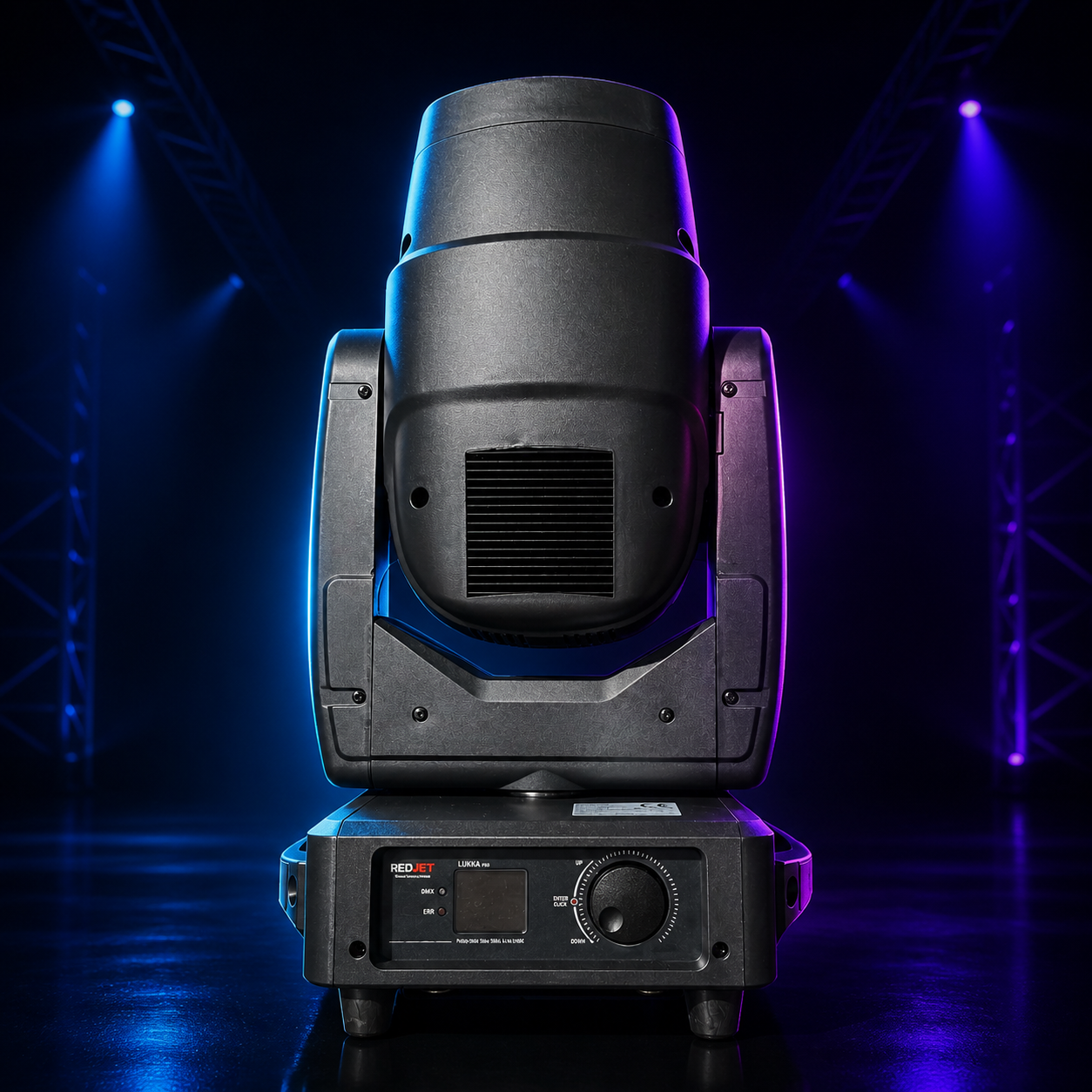

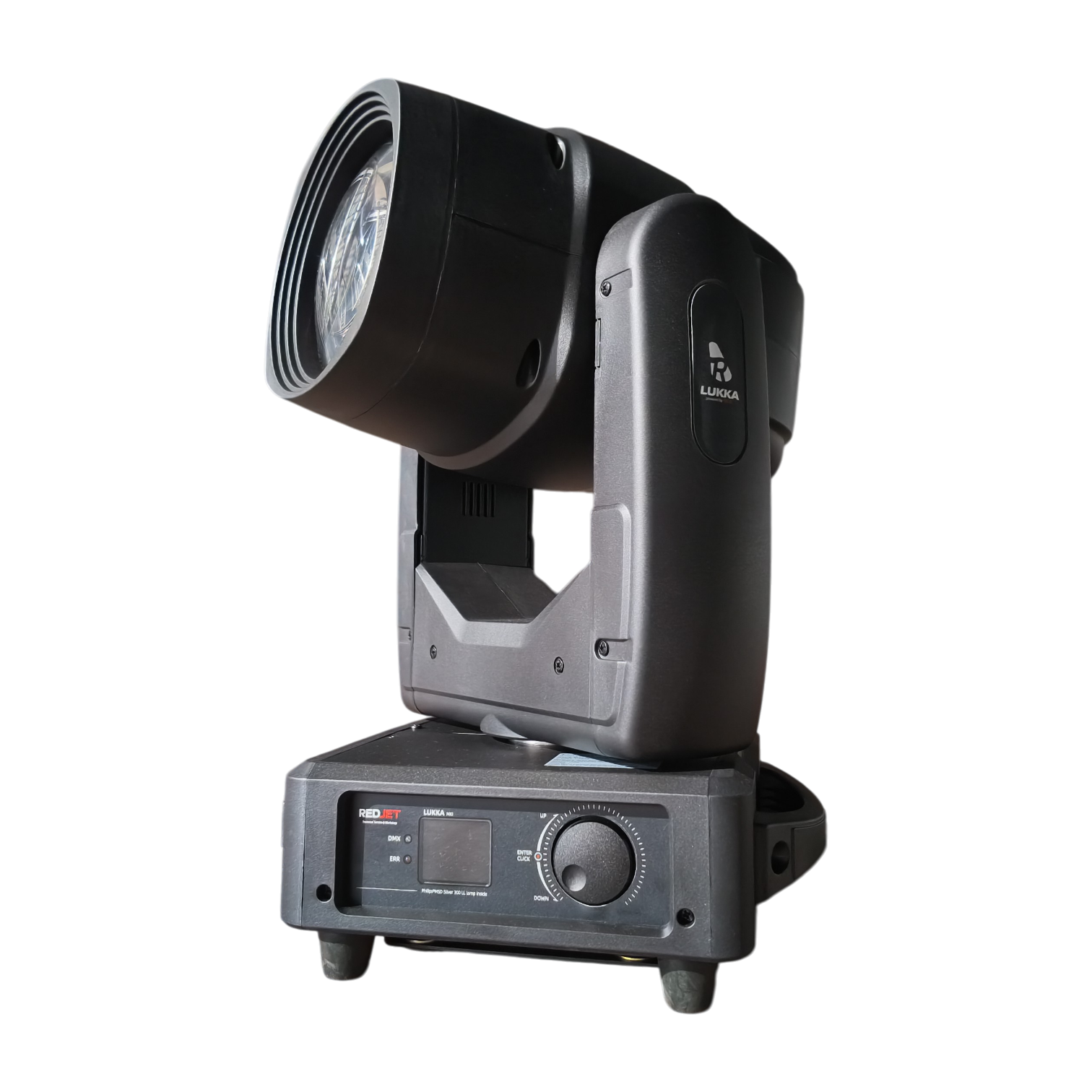

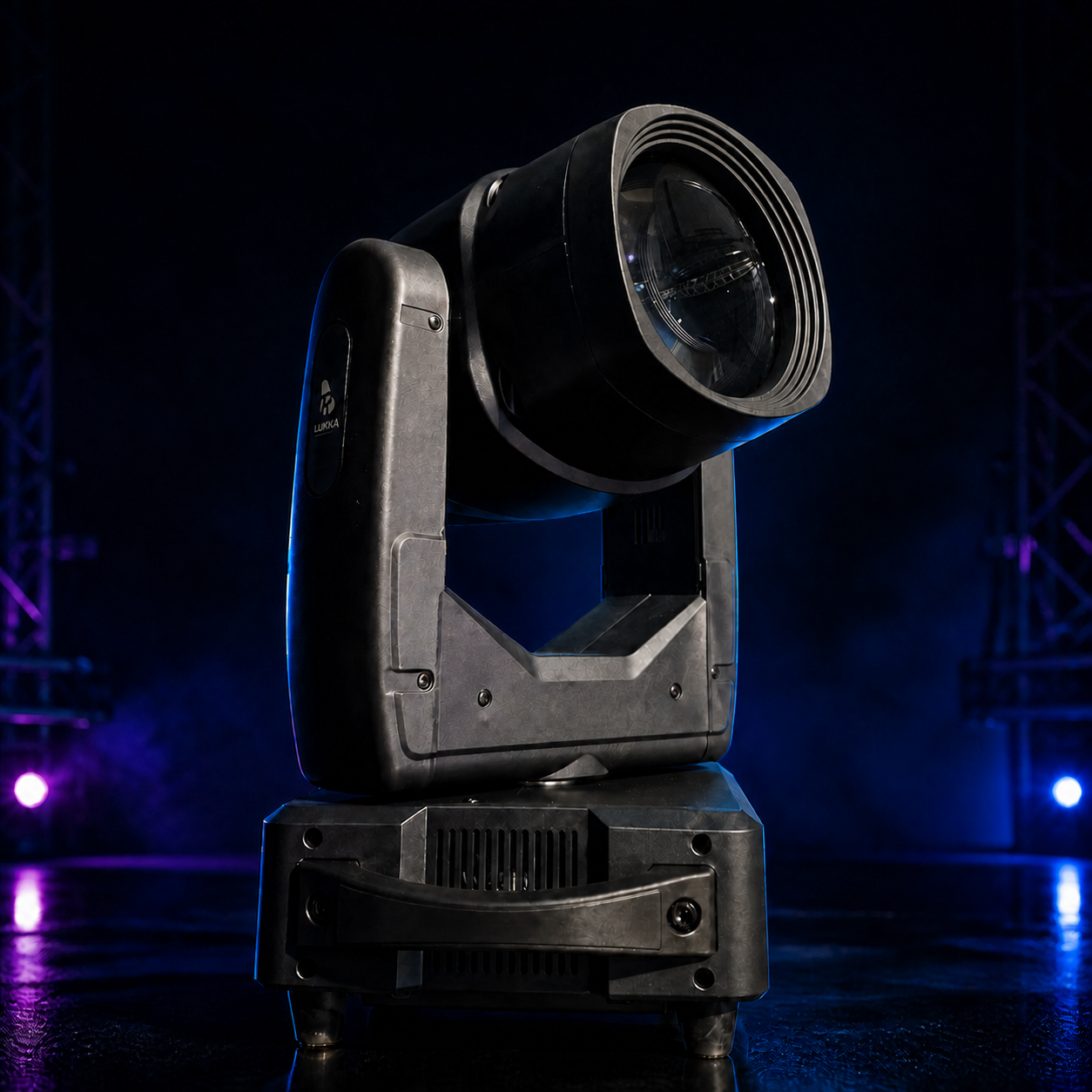

The REDJET LUKKA is a professional 300 W HID beam moving head equipped with an original Philips lamp. Designed for concerts, live productions and entertainment venues, LUKKA combines a narrow 5° beam with advanced optical effects and precise movement control. Its dual-prism system delivers eight different prism effects with automatic prism focus, while CTO, Rainbow and Frost provide additional creative flexibility.
Key Features
- Original Philips HID Lamp: Equipped with a genuine Philips 300 W HID light source.
- 5° Beam Angle: Produces concentrated beams for professional stage lighting applications.
- Eight Prism Effects: Dual independent prism selectors provide eight different prism effects for dynamic beam patterns.
- Automatic Prism Focus: Automatic focus adjustment for prism effects supports convenient beam effect control.
- CTO Effect: Color temperature correction for additional lighting design flexibility.
- Rainbow Effect: Creates dynamic color transitions and rotating color effects.
- Frost Effect: Softens the beam for diffused lighting effects.
- Color Wheel: White plus 11 colors with split-color positions.
- Gobo Wheel: 17 fixed gobos plus an open position for projection effects.
- Motorized Focus: Electronic focus adjustment for precise optical control.
- 16-bit Pan/Tilt: 540° Pan and 270° Tilt movement with fine positioning.
- DMX512 and RDM: Professional lighting control with a 19-channel DMX profile.
- Additional Effects: Electronic dimming and multiple strobe functions.
Technical Specifications
| Brand | REDJET |
|---|---|
| Model | LUKKA |
| Fixture Type | Beam Moving Head |
| Light Source | Original Philips 300 W HID Lamp |
| Color Temperature | 7,800 K |
| Beam Angle | 5° |
| Front Lens | 152 mm |
| Prism System | Dual independent prism selectors |
| Prism Effects | 8 different effects |
| Prism Focus | Automatic focus adjustment |
| CTO | Yes |
| Rainbow Effect | Yes |
| Frost Effect | Yes |
| Color Wheel | White + 11 colors |
| Gobo Wheel | 17 fixed gobos + open |
| Focus | Motorized |
| Pan | 540° |
| Tilt | 270° |
| Movement Resolution | 16-bit Pan/Tilt |
| Dimmer | 0–100% electronic |
| DMX Channels | 19CH |
| Control Protocols | DMX512, RDM |
| Operating Modes | Auto, Sound, Scene, Master/Slave |
| DMX Connections | 3-pin XLR In/Out |
| Input Voltage | 110–240 V AC |
| Display | TFT touch display with rotary encoder |
Applications
REDJET LUKKA is designed for concert stages, live events, nightclubs, entertainment venues and professional indoor lighting installations. Its narrow beam, multiple prism effects, automatic prism focus and optical effect system support dynamic aerial beam patterns and creative stage lighting designs.
Compatibility & Notes
Supports 19-channel DMX512 control and RDM. The fixture also provides Auto, Sound, Scene and Master/Slave operating modes.
For indoor use in dry environments. Follow the manufacturer’s installation instructions and use an independent safety cable for suspended mounting.
