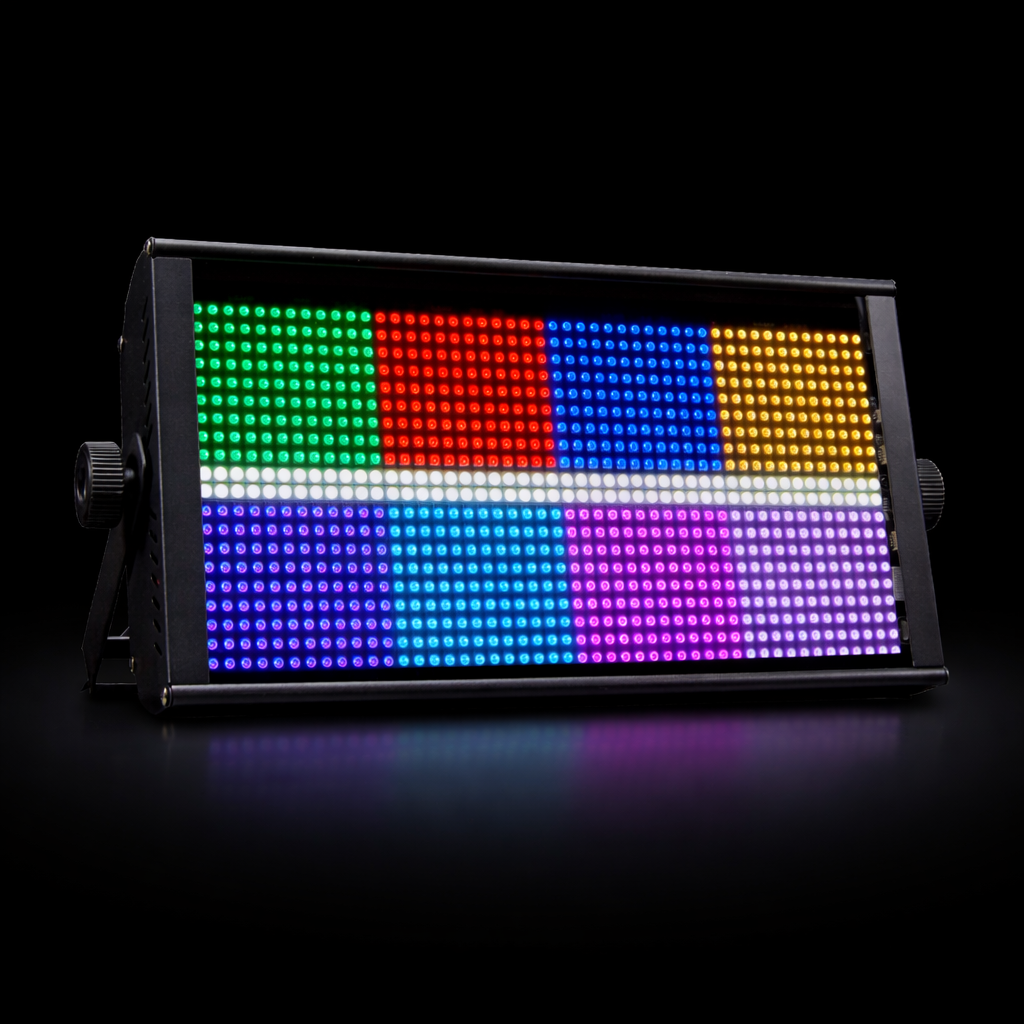

REDJET STROBE 88LS is a static pixel strobe light designed for stage, rental, and broadcast applications.
Featuring 8+8 segmented RGB pixel zones and independent white sections, it delivers high-impact strobe, chase, and pixel-mapping effects with precise DMX control.
STROBE 88LS
Pricing available upon request.
Please contact our sales team for technical consultation and quotation.
REDJET STROBE 88LS
Static Pixel Strobe Light
Overview
REDJET STROBE 88LS is a professional static pixel strobe light designed for stage,
rental, touring, and broadcast applications. With advanced segmented RGB and white
pixel control, it delivers powerful strobe, chase, and pixel-mapping effects
for demanding lighting environments.
Key Features
- 8 RGB pixel segments + 8 white light segments
- Advanced strobe, chase, pulse, and pixel effects
- Multiple DMX channel personalities
- Built-in auto and sound-activated programs
- RDM supported for remote management
- Intelligent cooling and temperature protection
Technical Specifications
| Product Type | Static Pixel Strobe Light |
|---|---|
| Voltage | AC 100–240 V, 50/60 Hz |
| Power Consumption | 280 W |
| LED Source | 864 × RGB (5050) LEDs 96 × White LEDs |
| Pixel Configuration | 8 RGB segments + 8 white segments |
| Dimming | 32-bit, 0–100% linear dimming |
| Strobe Frequency | 1–30 Hz |
| Control Modes | DMX512, Auto, Master/Slave, Sound, RDM |
| DMX Channel Modes | CH04 / CH11 / CH32 / CH39 |
| Operating Temperature | –30 °C to +50 °C |
| IP Rating | IP20 (Indoor use) |
| Housing | Metal, black finish |

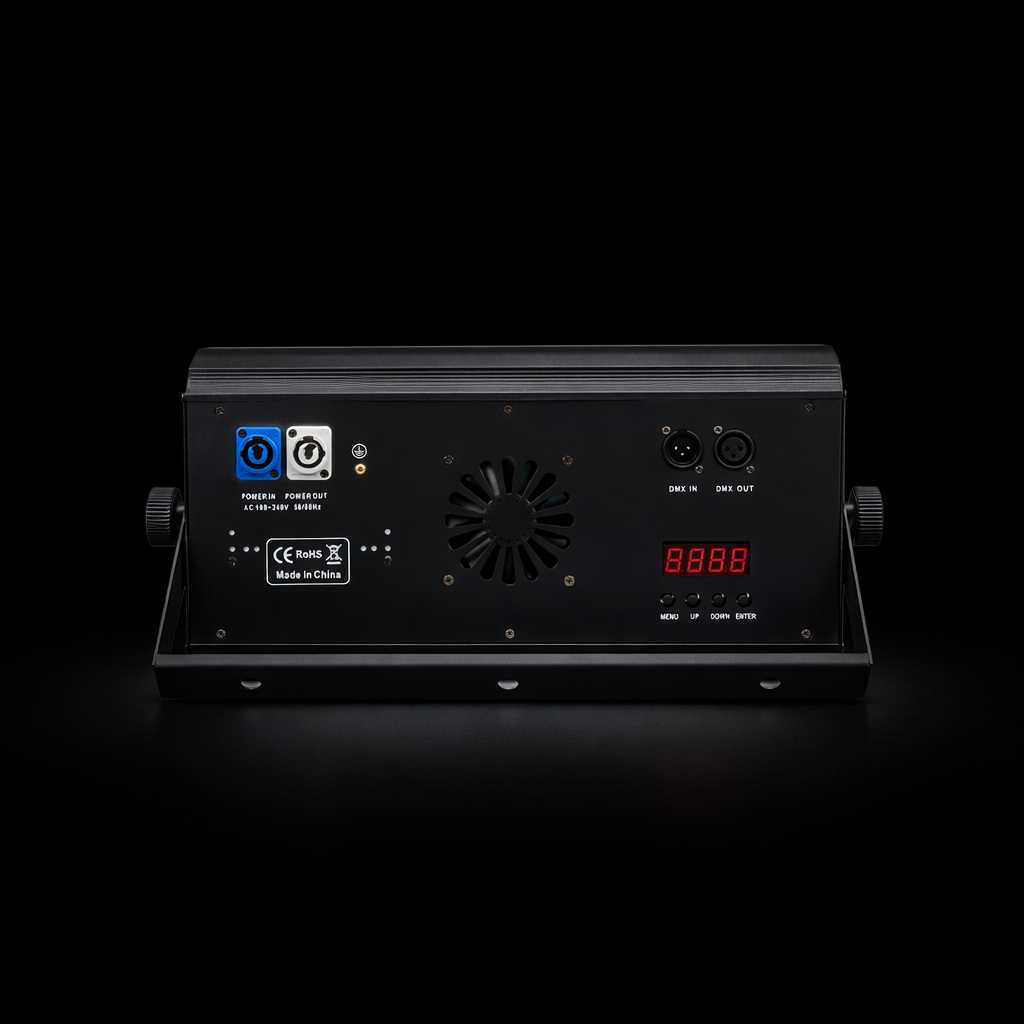

| Connections | DMX In / Out, Power In / Out |
| Applications | Stage, Rental, Touring, Club, Theater, Broadcast |
Control
- DMX512
- Auto Run
- Master / Slave
- Sound Control
- RDM
DMX Personalities
- CH04 – Basic RGBW control
- CH11 – RGB & white effects
- CH32 – Segment pixel control
- CH39 – Full pixel mapping
Downloads
