Professional motorized pixel effect strobe with independent plate and beam mapping, multi-mode DMX personalities, and full DMX512/Art-Net/sACN control—built for touring, rental, and broadcast.
AXION M
Pricing available upon request.
Please contact our sales team for technical consultation and quotation.
Product Overview

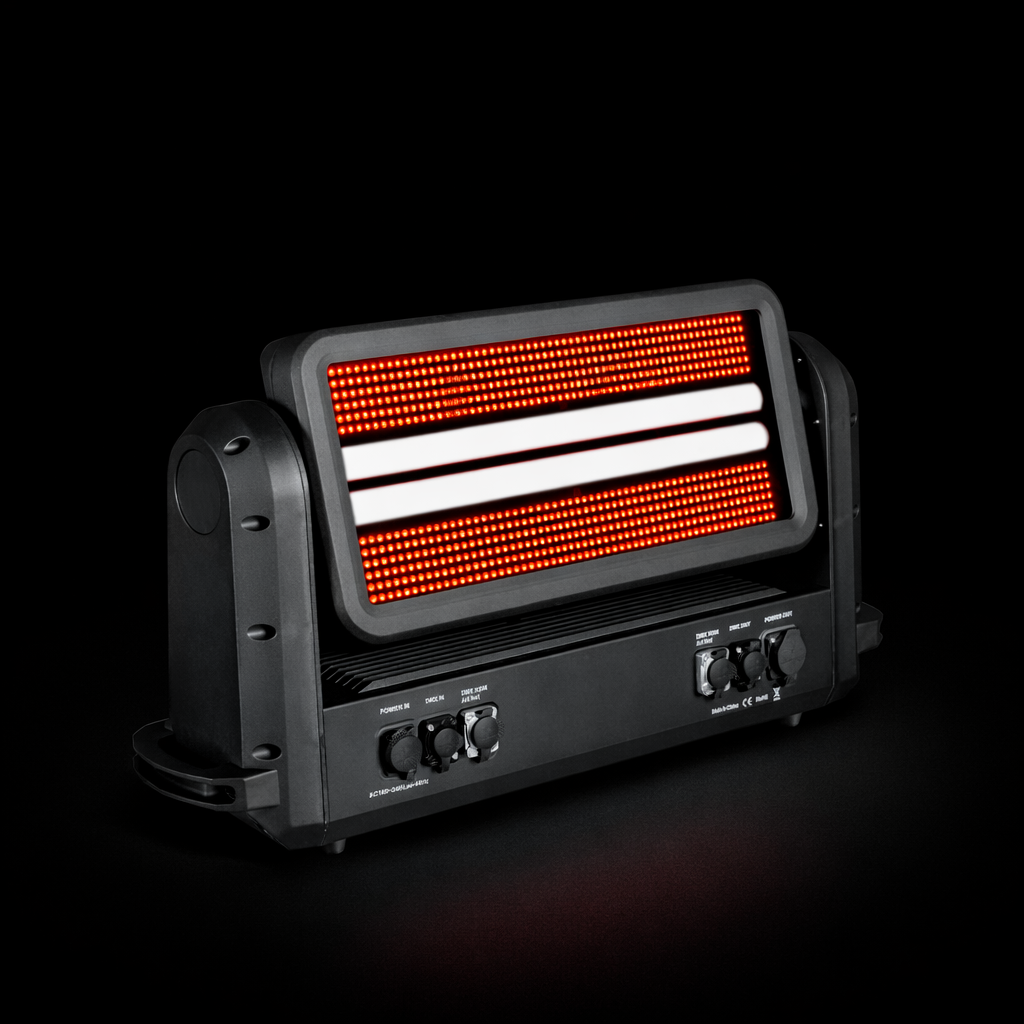

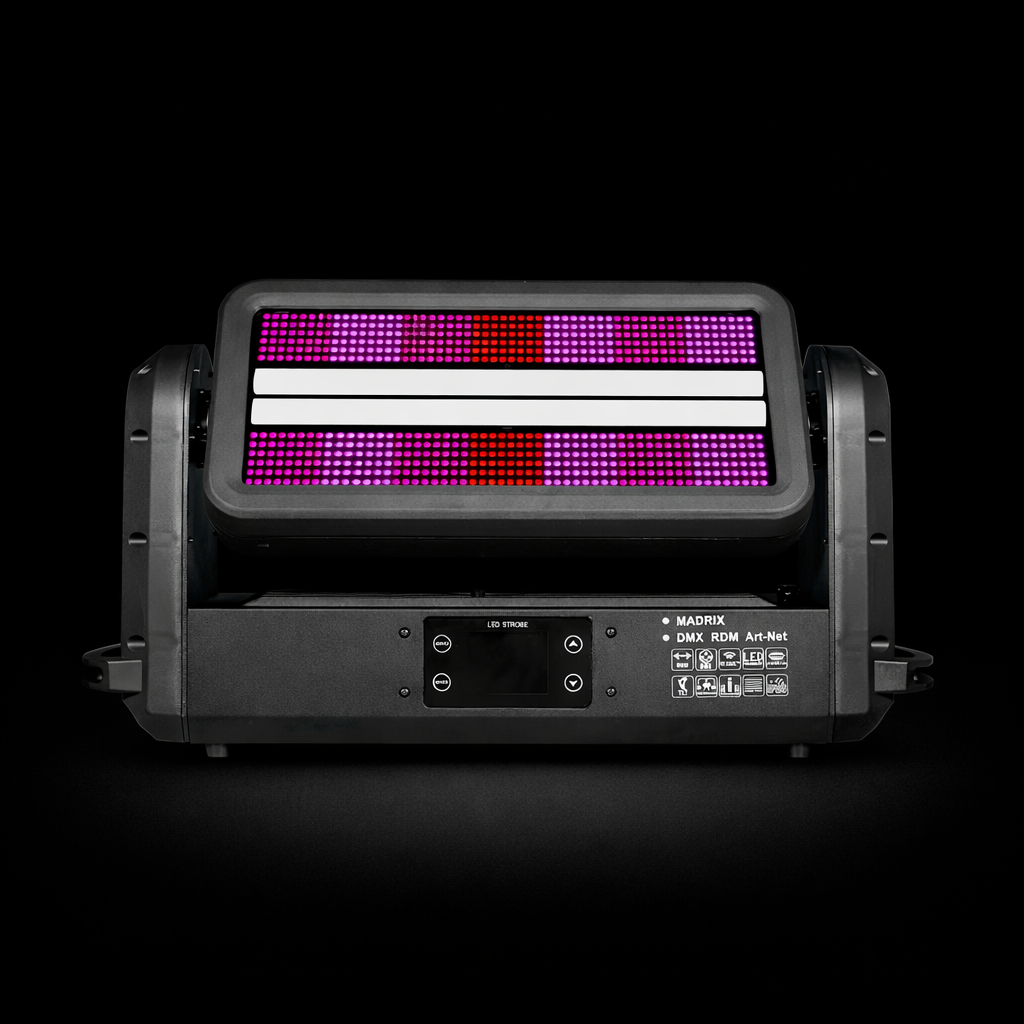

REDJET AXION M is a professional motorized pixel effect strobe designed for touring, rental, broadcast, and high-impact stage applications. It offers independent plate and beam pixel control, flexible DMX personalities, and network-ready control for modern lighting systems.
Key Features
-
Motorized tilt with adjustable range (0°–180°)
-
Independent plate and beam pixel mapping
-
Multiple DMX channel modes (8CH to 97CH)
-
DMX512, Art-Net, and sACN control support
-
High-frequency PWM up to 25 kHz for camera-friendly output
-
Selectable dimming curves and fan modes
-
On-board display, key lock, and firmware upgrade support
Control & Protocols
-
Control protocols: DMX512 / Art-Net / sACN
-
DMX address: 1–512 (depending on personality)
-
DMX personalities: 8CH, 11CH, 13CH, 24CH, 30CH, 47CH, 68CH, 74CH, 97CH
Movement & Output Management
-
Tilt: 0°–180° (invert and offset options)
-
Dimming curves: Linear, DIM1–DIM3
-
PWM frequency: 600 Hz / 1200 Hz / 2000 Hz / 4000 Hz / 6000 Hz / 25 kHz
-
Fan mode: Auto / On
Notes
Electrical ratings, IP classification, dimensions, and weight are model-specific. Please confirm technical datasheet values before final installation.
User Manual
REDJET AXION M — Operation & DMX Overview
Please read the instructions carefully before use.
DMX512
Art-Net
sACN
Art-Net
sACN
Quick Setup
Protocol
- DMX512
- Art-Net
- sACN
DMX Address
Range: 1–512 (highest channel depends on selected personality)
DMX Modes
8CH, 11CH, 13CH, 24CH, 30CH, 47CH, 68CH, 74CH, 97CH
Menu Map (Key Options)
Operation
Tilt 0–180° (0–255), Tilt Offset (0–255), Tilt Invert (No/Yes)
Color
Static colors: R, G, B, GB, RB, RG, RGB • Manual RGB mixer: 0–255
Plate FX
Plate FX 1–9 • Speed 1–100 • Plate Intensity 0–255
Beam
Beam Intensity 0–255 • Flash Duration 0–255 • Flash Rate 0–255
Dimmer / PWM
Dimmer Mode: OFF (Linear), DIM1–DIM3 • LED Frequency (PWM): 600 / 1200 / 2000 / 4000 / 6000 / 25000 Hz
System
Fan Mode: Auto/On • Display Invert • Backlight: 10s / 30s / 2Min / Always On • Key Lock
DMX Control (Practical Overview)
Compact Modes
8CH / 11CH — basic tilt, dimmer, strobe & primary color control
Advanced Modes
30CH / 47CH / 68CH+ — detailed plate/beam FX and pixel-level control
Tip: For fast programming choose 8CH/11CH. For pixel effects and full control choose 47CH+.
Pixel Mapping (Reference)
- Plate 1: pixels 1–7
- Plate 2: pixels 8–14
- Beam 1: pixels 1–14
- Beam 2: pixels 15–28
FX common logic: Pattern Select (0–255), Speed/Direction, Crossfade (Snap → Fade).
Downloads
If you need a branded REDJET manual format, contact us and we will provide a formatted PDF.
