REDJET / Stage Lighting

AXION B

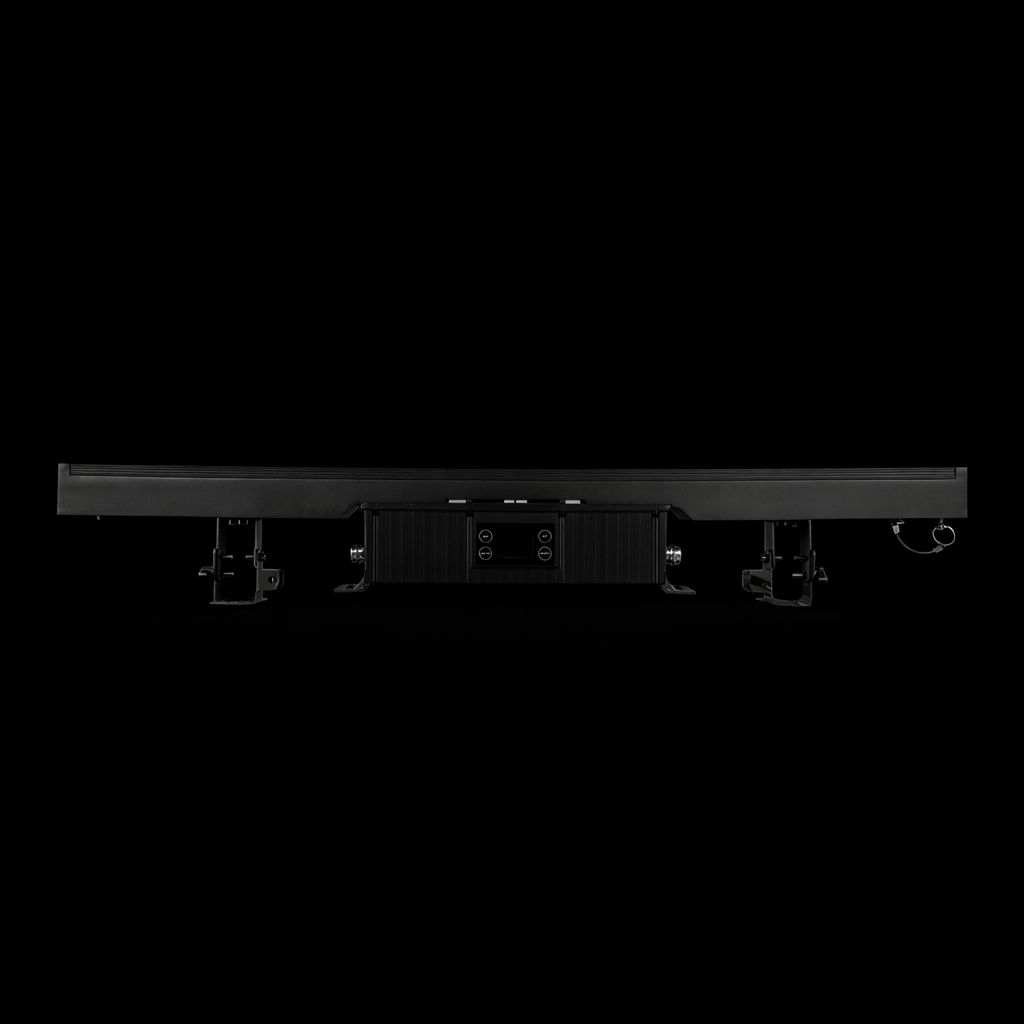

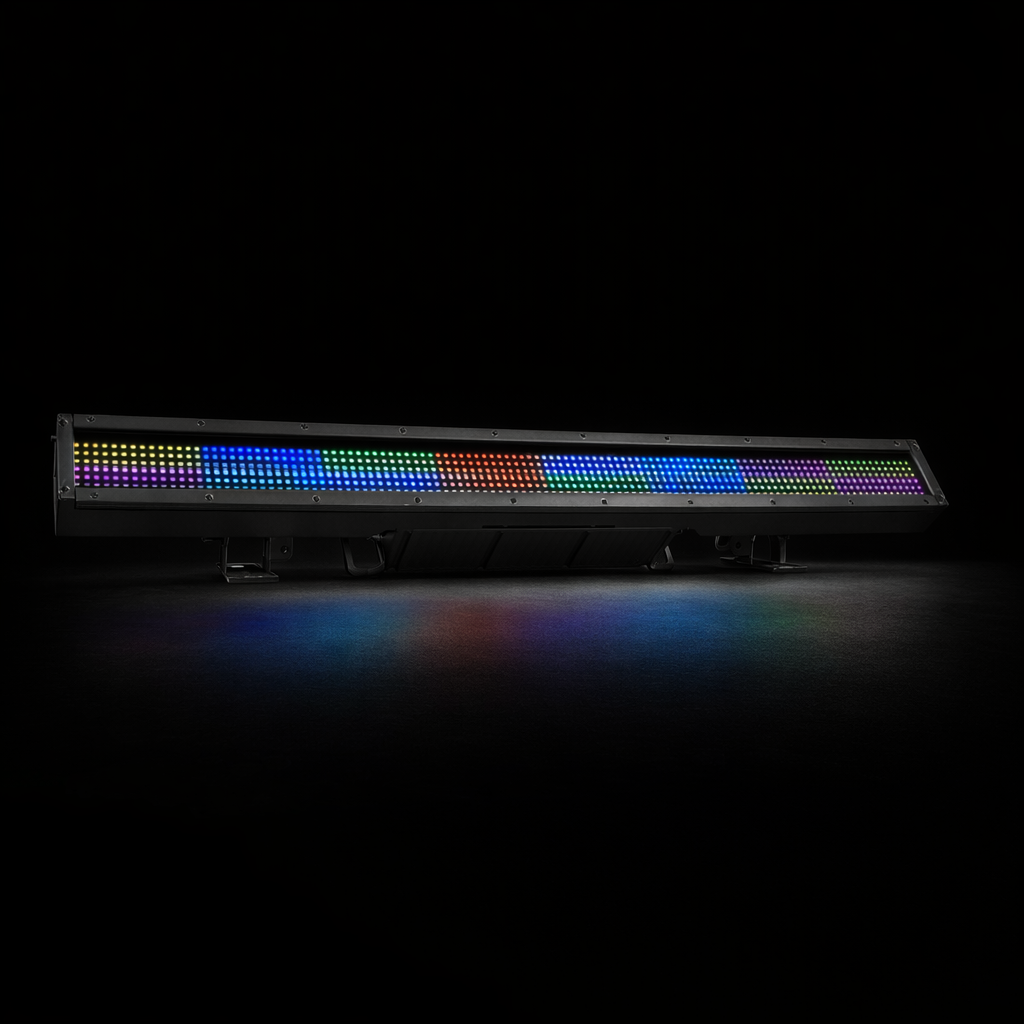

REDJET AXION B LED Wall Wash & Pixel Strobe

The REDJET AXION B is an LED wall-wash and pixel-strobe fixture for stage, architectural and outdoor-event lighting. RGB pixel effects, dedicated white strobe LEDs, multiple DMX modes and an IP67-rated housing support flexible installation and control.

Light source
672 RGB 5050 LEDs (0.3 W each) + 112 white 3030 LEDs (3 W each)
Rated power
500 W
Control
DMX512, Auto, Master/Slave, Sound Control
Movement
Static

Description

Product Overview

The REDJET AXION B is an LED wall-wash and pixel-strobe fixture intended for stage, outdoor-event and architectural lighting applications. Its existing specifications combine RGB pixel effects, white strobe output and multiple DMX control modes in an IP67-rated housing.

Key Features

  • RGB and white output: Pixel-controlled RGB LEDs combined with dedicated white strobe LEDs.
  • Control: DMX512 personalities for basic and detailed operation, with RDM support.
  • Lighting effects: Strobe effects, RGB pixel effects and an atomization-style lighting effect.
  • Dimming: 16-bit linear intensity control from 0–100%.
  • Outdoor housing: IP67 protection rating as listed for this model.

Technical Specifications

Model AXION B
Product Type LED Wall Wash & Pixel Strobe
Voltage AC 100–240 V, 50/60 Hz
Power Consumption 500 W
Light Source 672 RGB 5050 LEDs (0.3 W each) + 112 white 3030 LEDs (3 W each)
Dimming 16-bit linear, 0–100%
Strobe Frequency 1–30 Hz
Control Protocols DMX512, RDM
DMX Channel Modes 7 / 15 / 17 / 21 / 33 / 39 / 65 / 68 / 70 / 112 / 117 CH
Control Modes DMX512, Auto, Master/Slave, Sound Control
Operating Temperature −30 °C to +50 °C
Housing Metal, black finish
Protection Rating IP67
Connections DMX In/Out, Power In/Out

Applications

Outdoor stages, live performances, concert touring and architectural wall-wash installations using RGB pixel effects and white strobe output.

Compatibility & Notes

Check the selected DMX personality, mounting and electrical supply before operation. The existing product record lists an IP67 protection rating; confirm the model-specific operating instructions for the intended environment.
