REDJET / Control & Signal

6DXH

6DXH Distributor

The 6DXH Distributor is a six-output DMX signal distributor with one input for compatible professional stage-lighting systems. It includes independent channel indication and a dedicated signal amplifier system.

Connections
Standard: XLR 3-pin (Option: XLR 5-pin by order)
Power input
AC 88–256V, 50/60Hz

Description

Product Overview

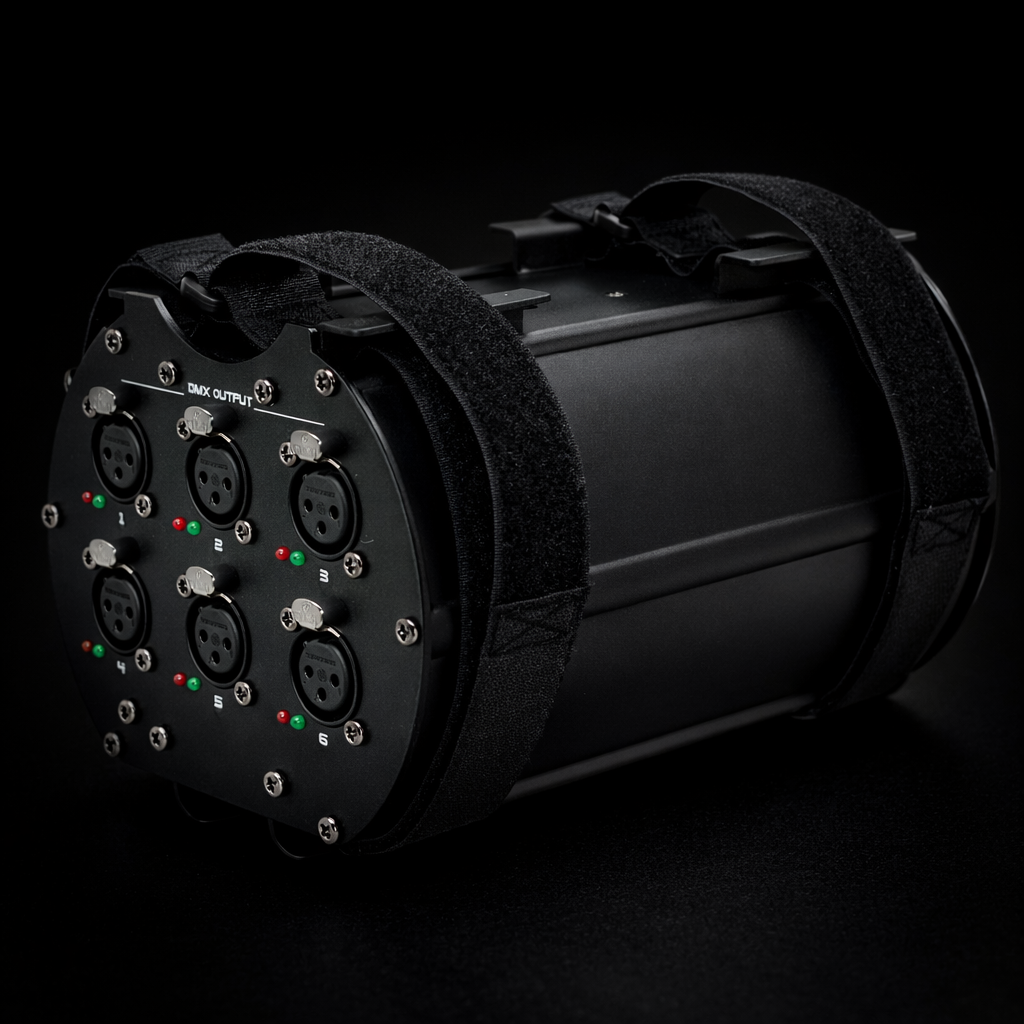

6DXH Distributor is a 6-way DMX signal distributor built for reliable DMX distribution in stage, touring, and rental environments. It provides one DMX input and six DMX outputs with a dedicated signal amplifier system and individual LED indication per channel.

Key Features

  • Multiple installation methods to support different rigging and placement needs
  • High voltage protection
  • Independent input and output signal (includes signal earth cable)
  • Neutrik 3-pin XLR (5-pin optional by order)

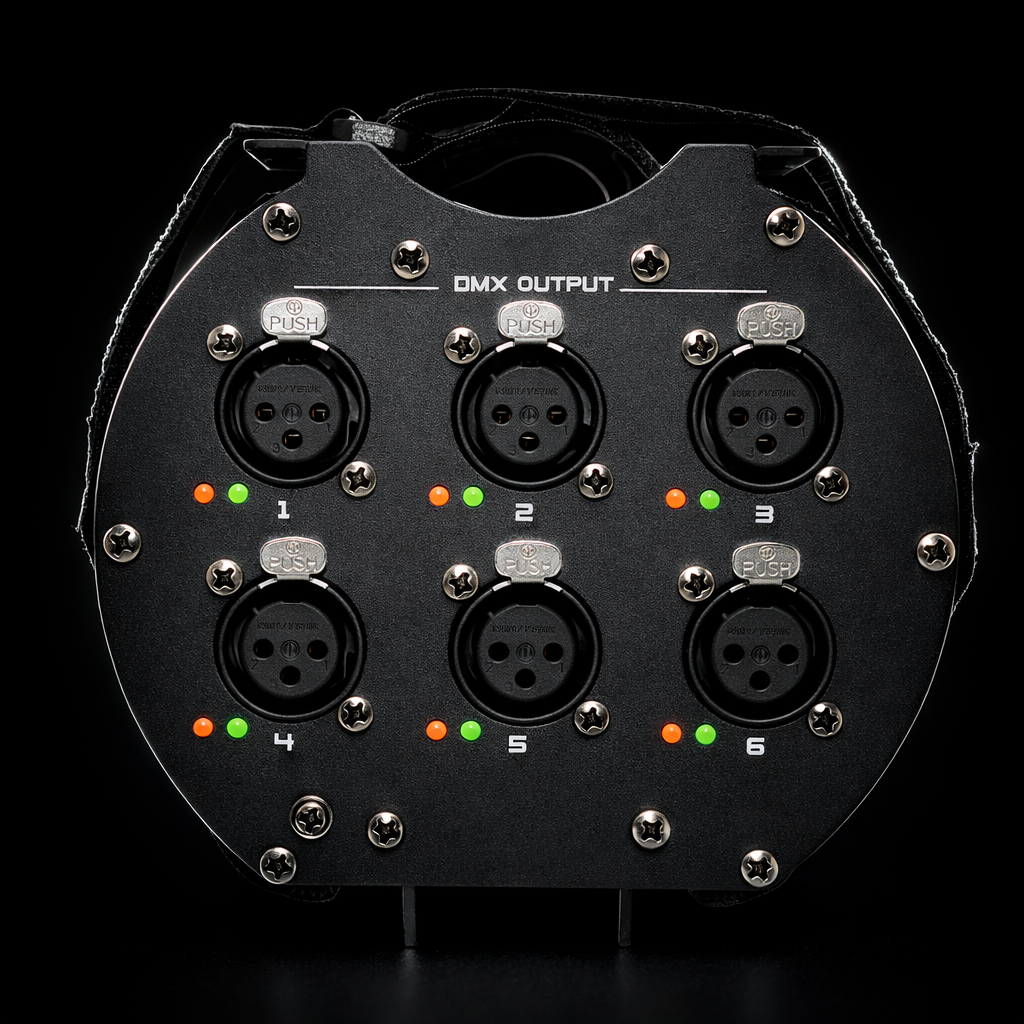

  • Separate signal amplifier system with individual LED light for each channel

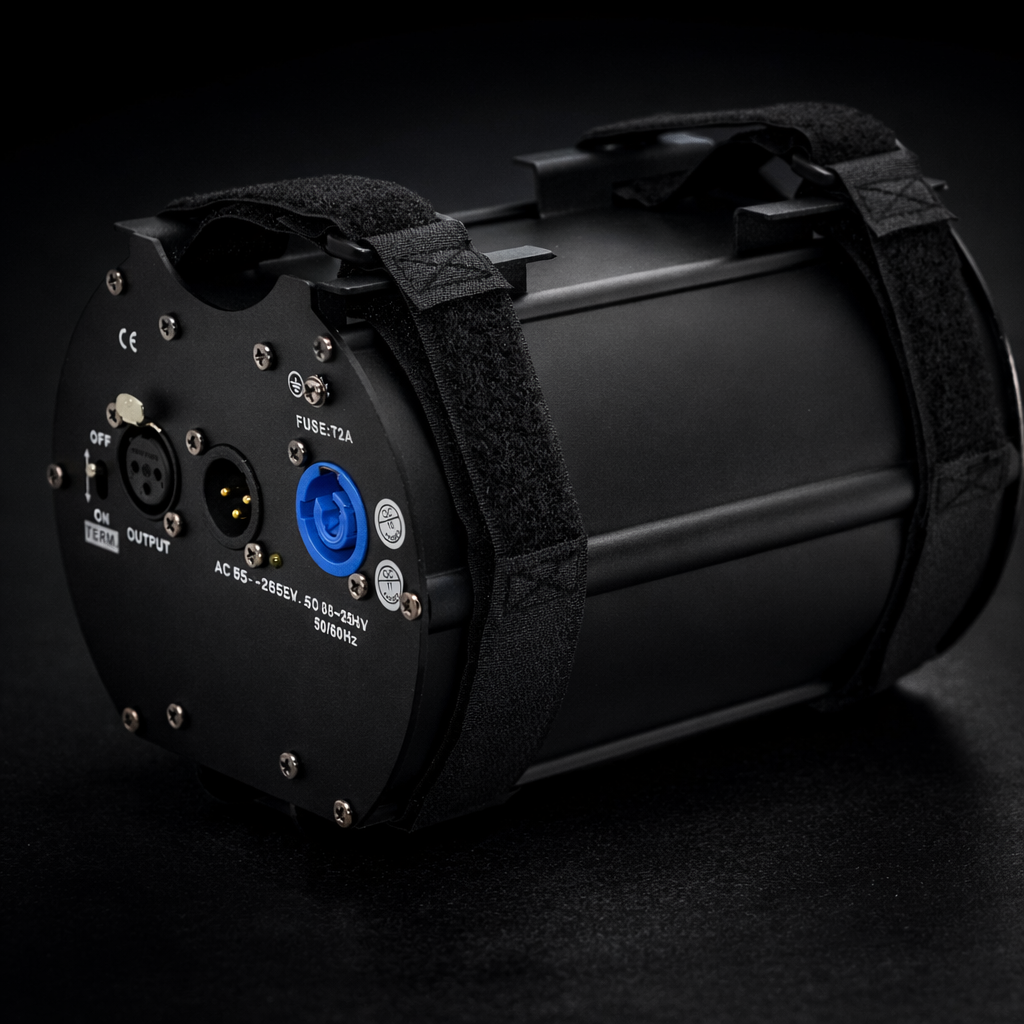

  • PowerCON connector for rental and mobile shows
  • Wide input stable electric power supply: AC 88–256V, 50/60Hz
  • Lightweight design

Technical Specifications

DMX Standard DMX512/1990
Input / Output Standard: XLR 3-pin (Option: XLR 5-pin by order)
Distribution Six-way DMX distributor with one input
Power Input AC 88–256V, 50/60Hz
Dimensions 186 × 128 × 124 mm
Net Weight 0.85 kg
Compliance (as stated) CE / UL / GB 7000.15-2000

Applications

Touring & rental lighting systems; Mobile shows and temporary setups; Fixed installations requiring multi-output DMX distribution.

Compatibility & Notes

Standard connection: 3-pin XLR. The 5-pin XLR version is listed as an option by order. Verify electrical and connector compatibility before installation.
