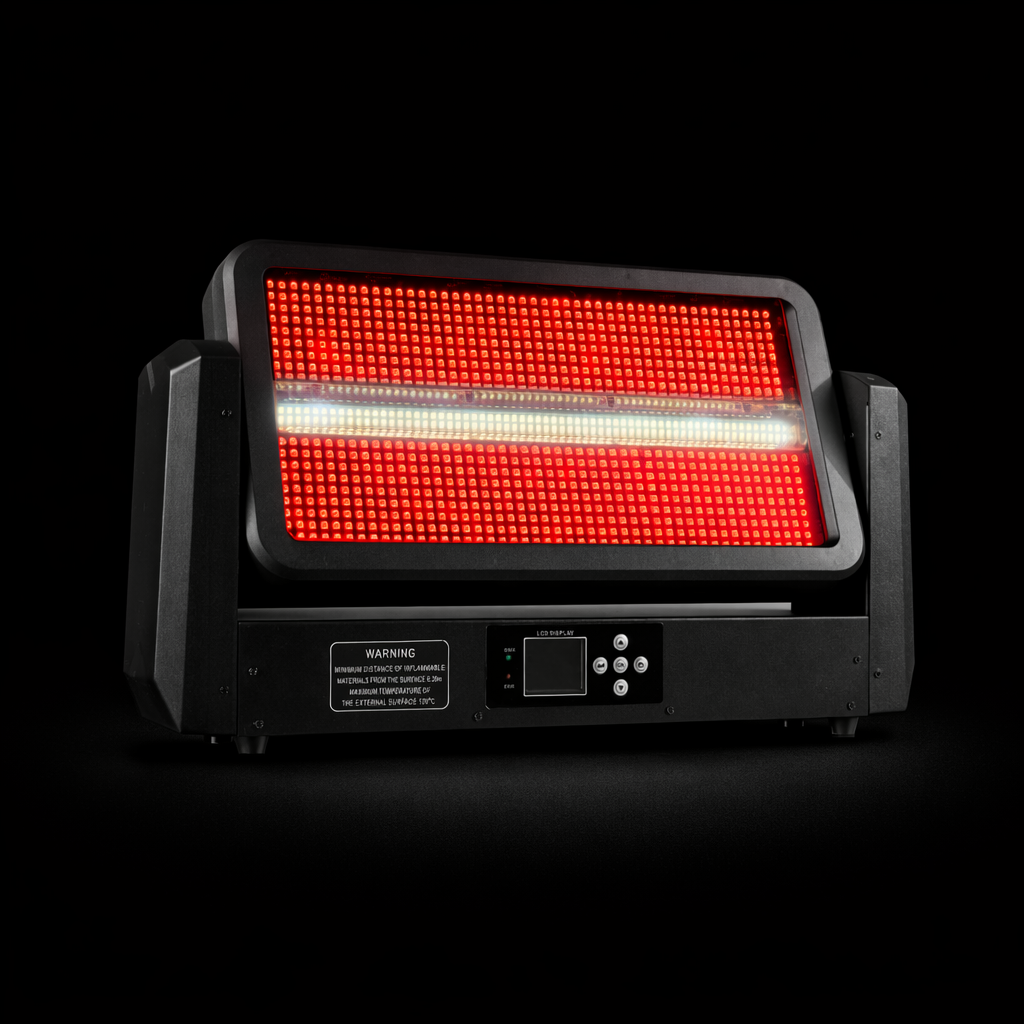

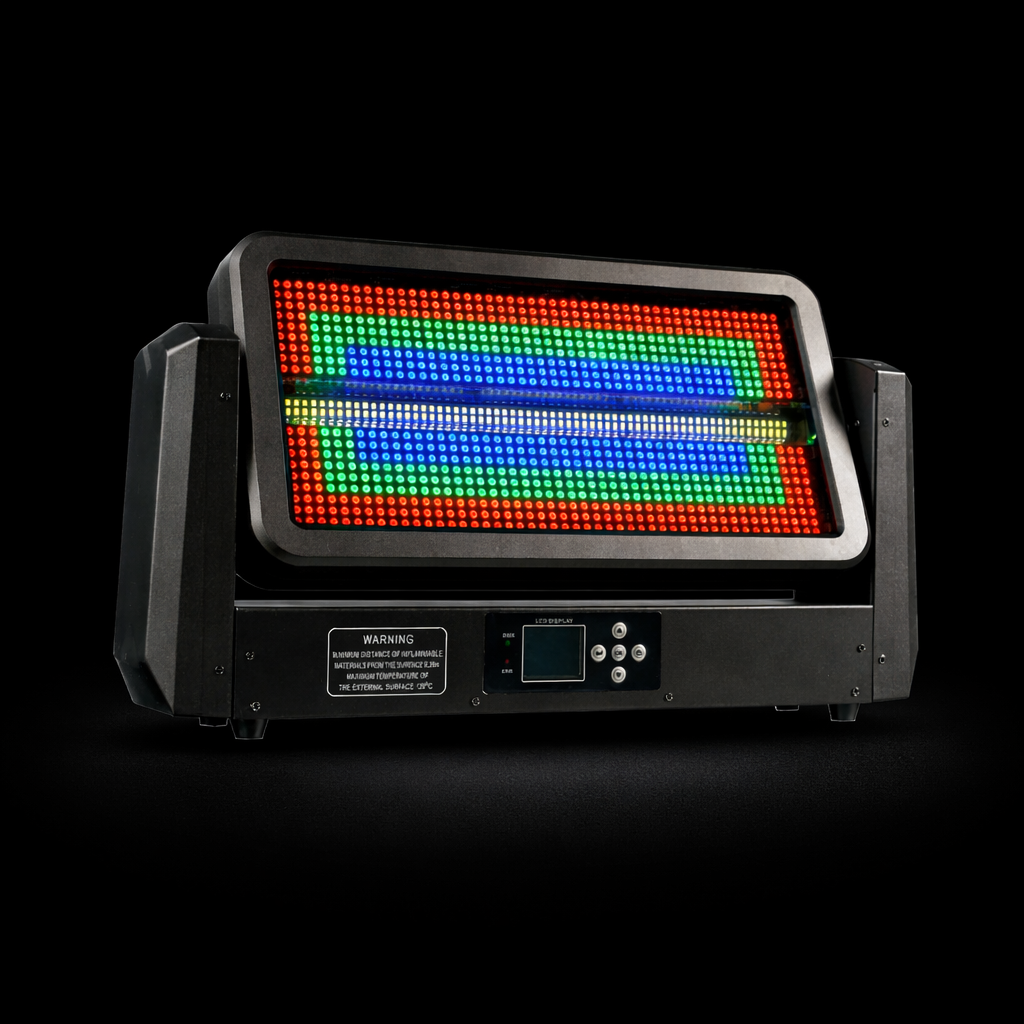

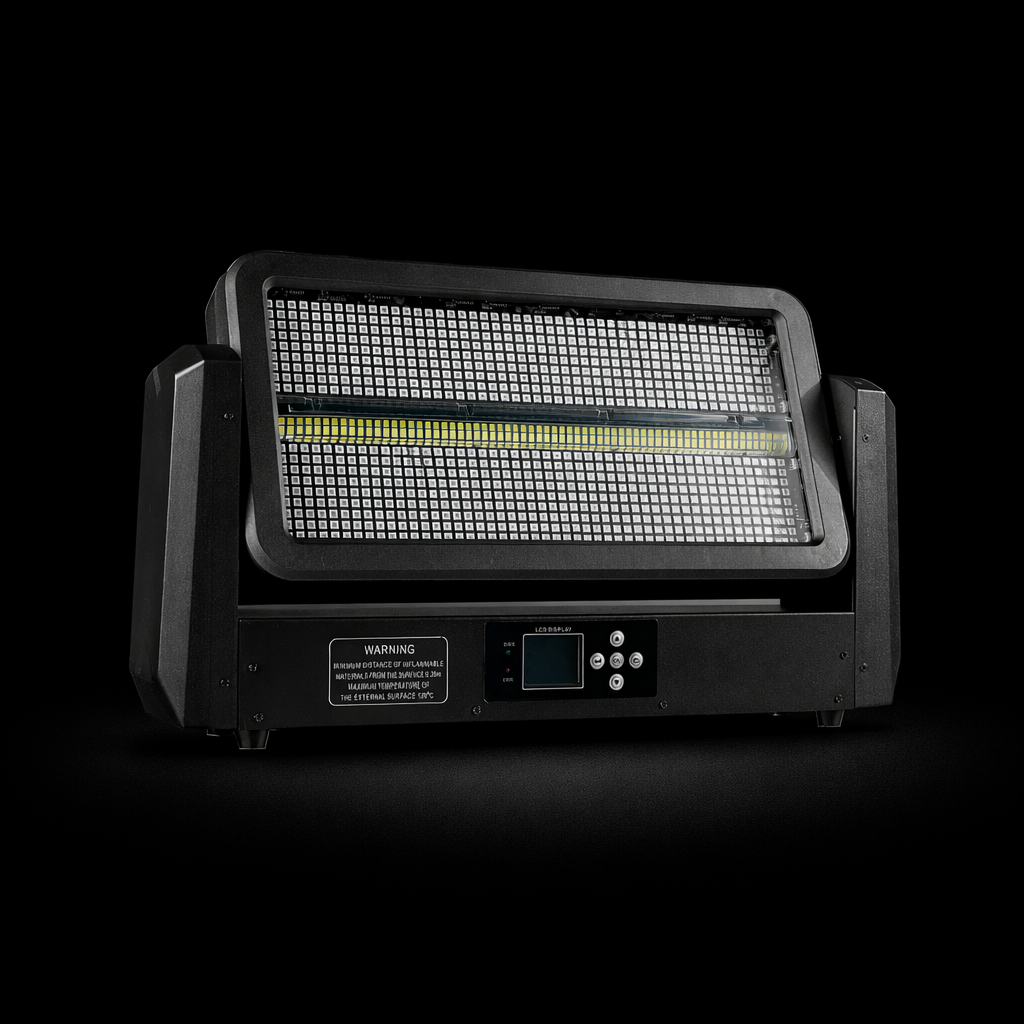

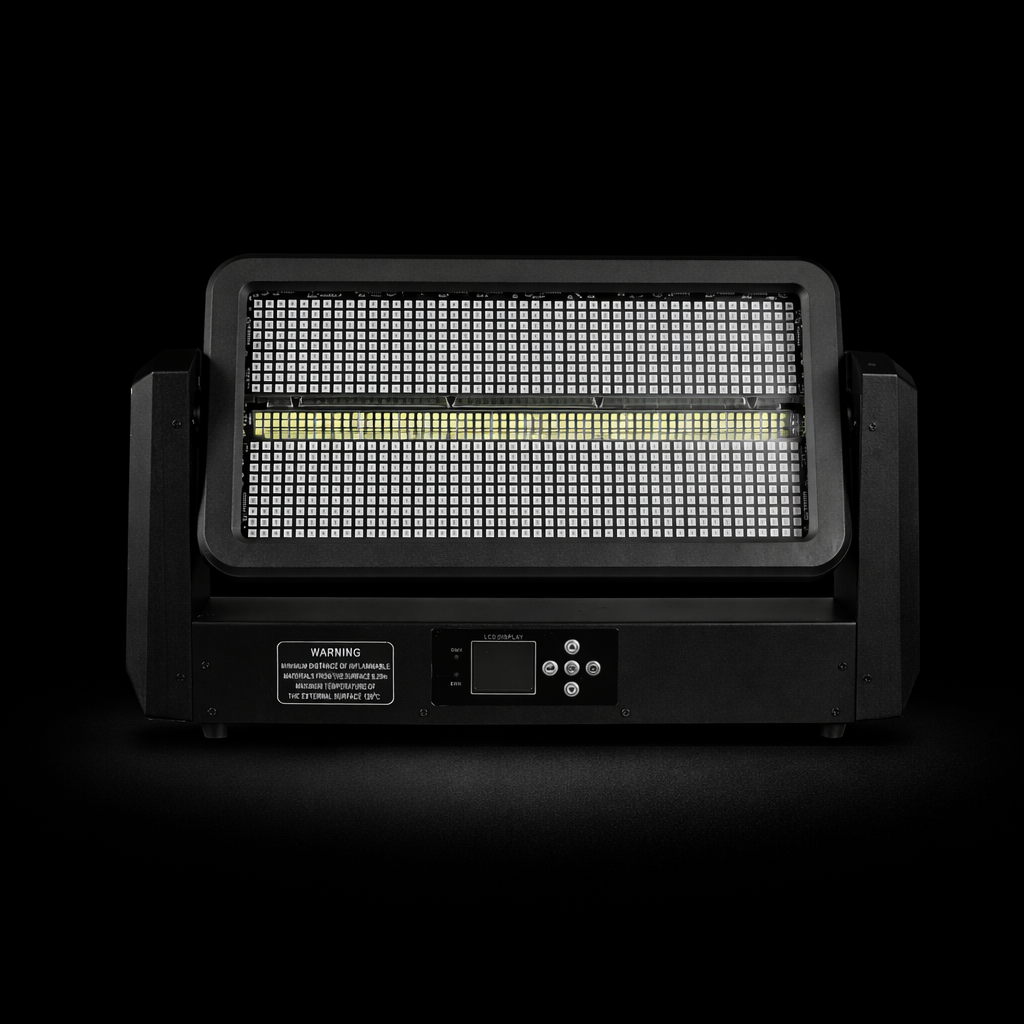

REDJET STROBE 1212LS is a high-power motorized pixel strobe light designed for professional touring, rental, and stage applications.
Featuring motorized tilt movement, advanced RGBW pixel mapping, and multiple DMX channel modes, it delivers powerful strobe and dynamic visual effects for modern lighting systems.
STROBE 1212LS
Pricing available upon request.
Please contact our sales team for technical consultation and quotation.
REDJET STROBE 1212LS
Motorized Pixel Strobe Light
Product Overview
REDJET STROBE 1212LS is a high-power motorized pixel strobe designed for professional
stage, touring, and rental applications. Combining motorized tilt movement with
advanced pixel mapping capabilities, it delivers powerful strobe effects and
dynamic visual performance for modern lighting designs.
Key Features
- Motorized tilt movement with adjustable speed
- Advanced RGBW pixel mapping with multi-segment control
- High-output strobe and wash effect in one fixture
- Multiple DMX channel modes for flexible programming
- 32-bit linear dimming for smooth, flicker-free output
- RDM supported for remote configuration
Technical Specifications
| Product Type | Motorized Pixel Strobe Light |
|---|---|
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 400 W |
| Light Source | 960 pcs RGB+W LEDs |
| Pixel Segments | 96 RGB segments + 12 strobe zones |
| Dimming | 32-bit linear dimming (0–100%) |
| Strobe Rate | 1–30 Hz |
| Tilt Movement | Motorized tilt with speed control |
| Control Modes | DMX512, Auto, Sound, Master/Slave, RDM |
| DMX Channel Modes | 6 CH / 20 CH / 41 CH / 300 CH |
| Operating Temperature | -30 °C to +50 °C |
| Housing | Metal, black finish |
| IP Rating | IP20 (Indoor use) |

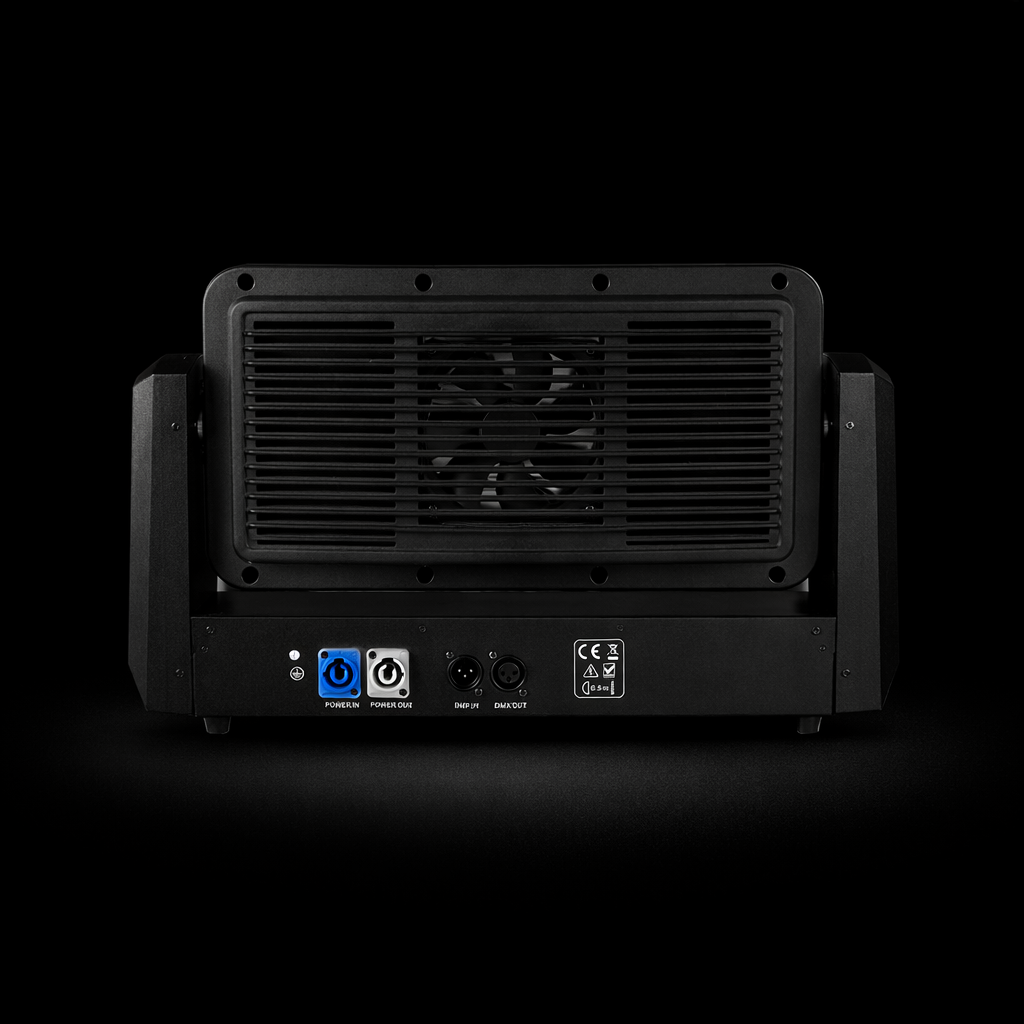

| Connections | DMX In / Out • Power In / Out |
Control
- DMX512
- Auto Programs
- Sound Control
- Master / Slave
- RDM
Applications
- Touring & Rental
- Concert Stages
- Clubs & Live Venues
- TV & Broadcast Studios
- Pixel Mapping Shows
