Description
REDJET XH-DJ001

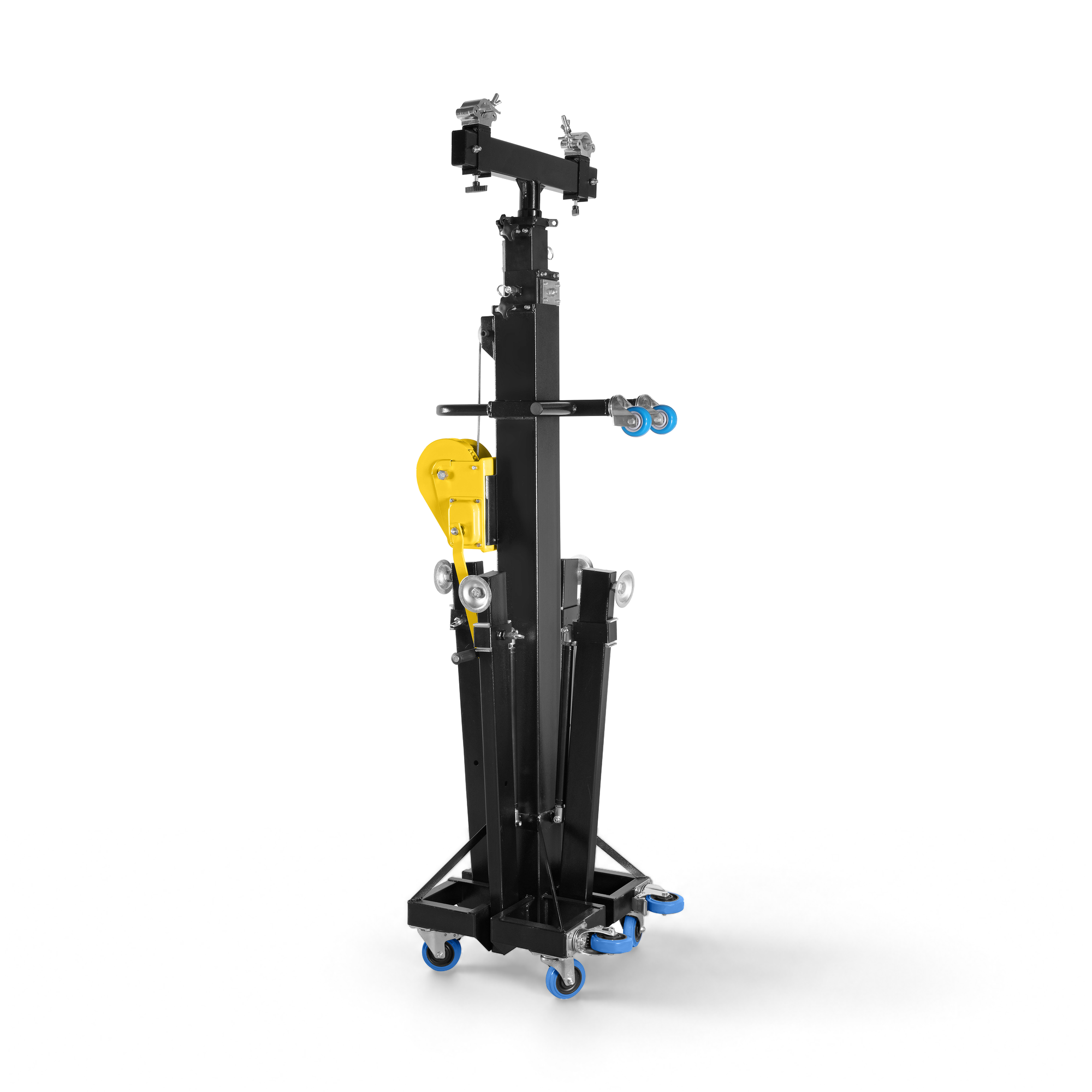

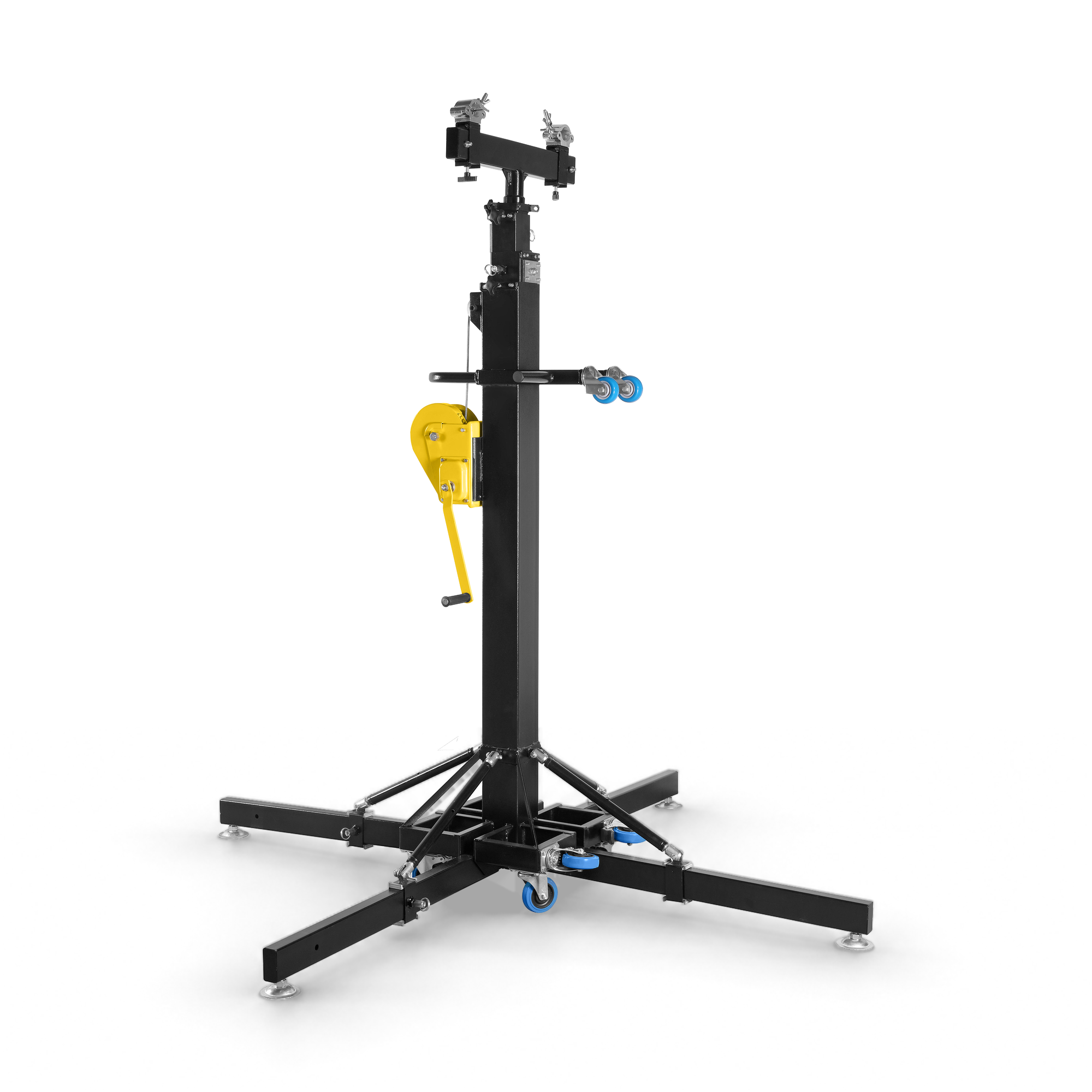

Telescopic Lighting Lift Stand
6 m working height. Supplier-stated 230 kg maximum load. The REDJET XH-DJ001 is a telescopic lighting lift stand intended for positioning compatible stage lighting and event equipment. It combines a 1.9–6.0 m adjustable height range with square-profile telescopic construction and support legs.
At a glance
-
1.9–6.0 m Working Height:
Telescopic height adjustment for different stage lighting positions. -
Supplier-Stated 230 kg Maximum Load:
Rated by the supplier; independent safe working load verification is not available. -
Square-Profile Telescopic Mast:
Multi-section tube construction for adjustable height. -

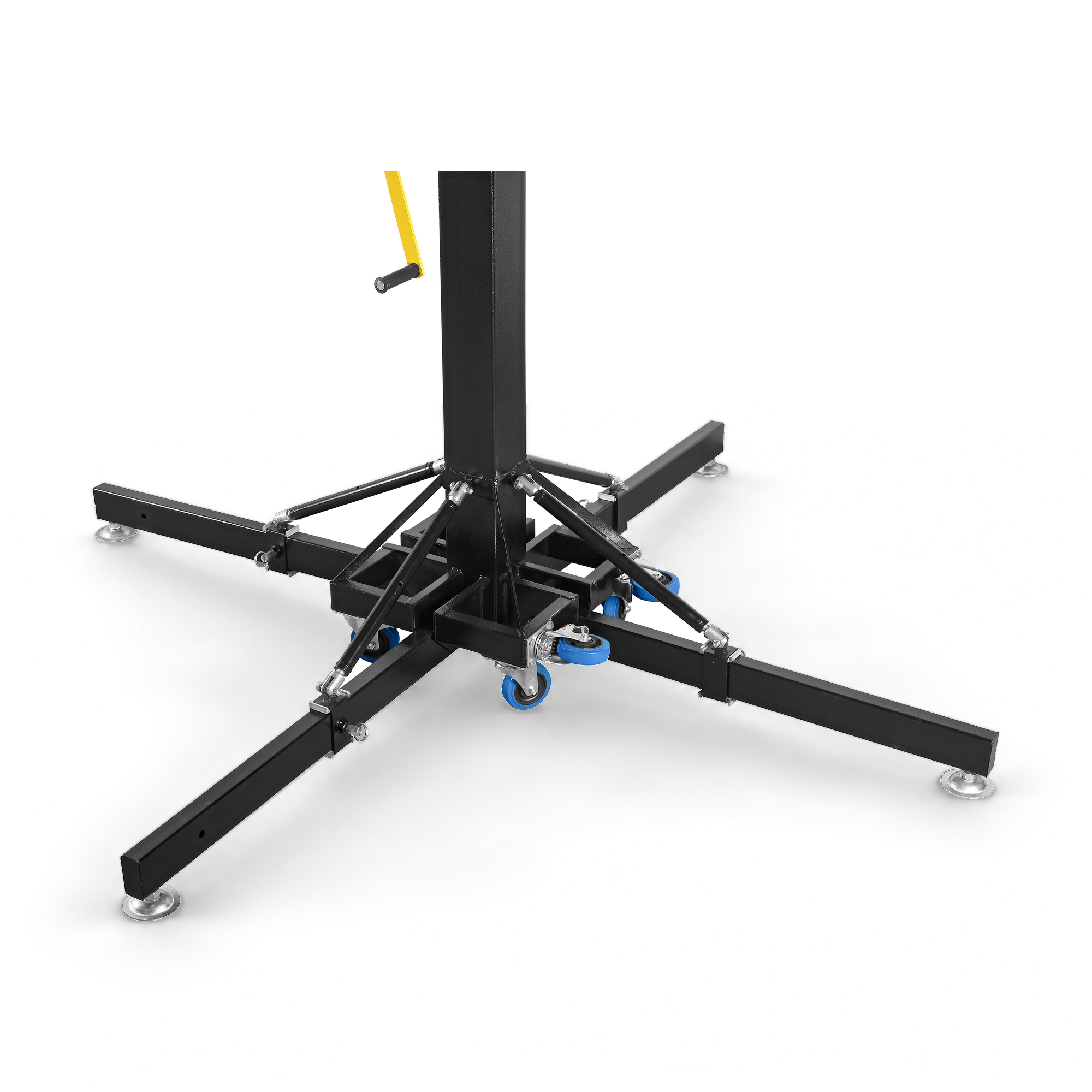

Support Legs:
Square-profile leg construction measuring 80 × 40 × 980 mm.
Technical details
Working height & load
| Model | XH-DJ001 |
|---|---|
| Product Type | Telescopic Lighting Lift Stand |
| Working Height | 1.9–6.0 m |
| Supplier-Stated Maximum Load | 230 kg |
Construction & mounting
- Base Plate: 460 × 460 mm base plate dimensions.
| Base Plate Dimensions | 460 × 460 mm |
|---|---|
| Support Leg Dimensions | 80 × 40 × 980 mm |
Weight & transport
| Net Weight | 120 kg |
|---|---|
| Packed Weight | 123 kg |
| Package Dimensions | 200 × 46 × 60 cm |
Applications & compatibility
Intended for compatible stage lighting and event equipment in professional productions, venue installations and rental setups. Select equipment and mounting arrangements according to the installation requirements.
Use only with appropriately rated mounting hardware and suitable supporting surfaces. The stated 230 kg maximum load is based on supplier information and must not be treated as an independently verified safe working load. Confirm the manufacturer’s operating instructions, load distribution, securing requirements and compatibility before lifting equipment.
