REDJET / Video Processing

VS100 Series

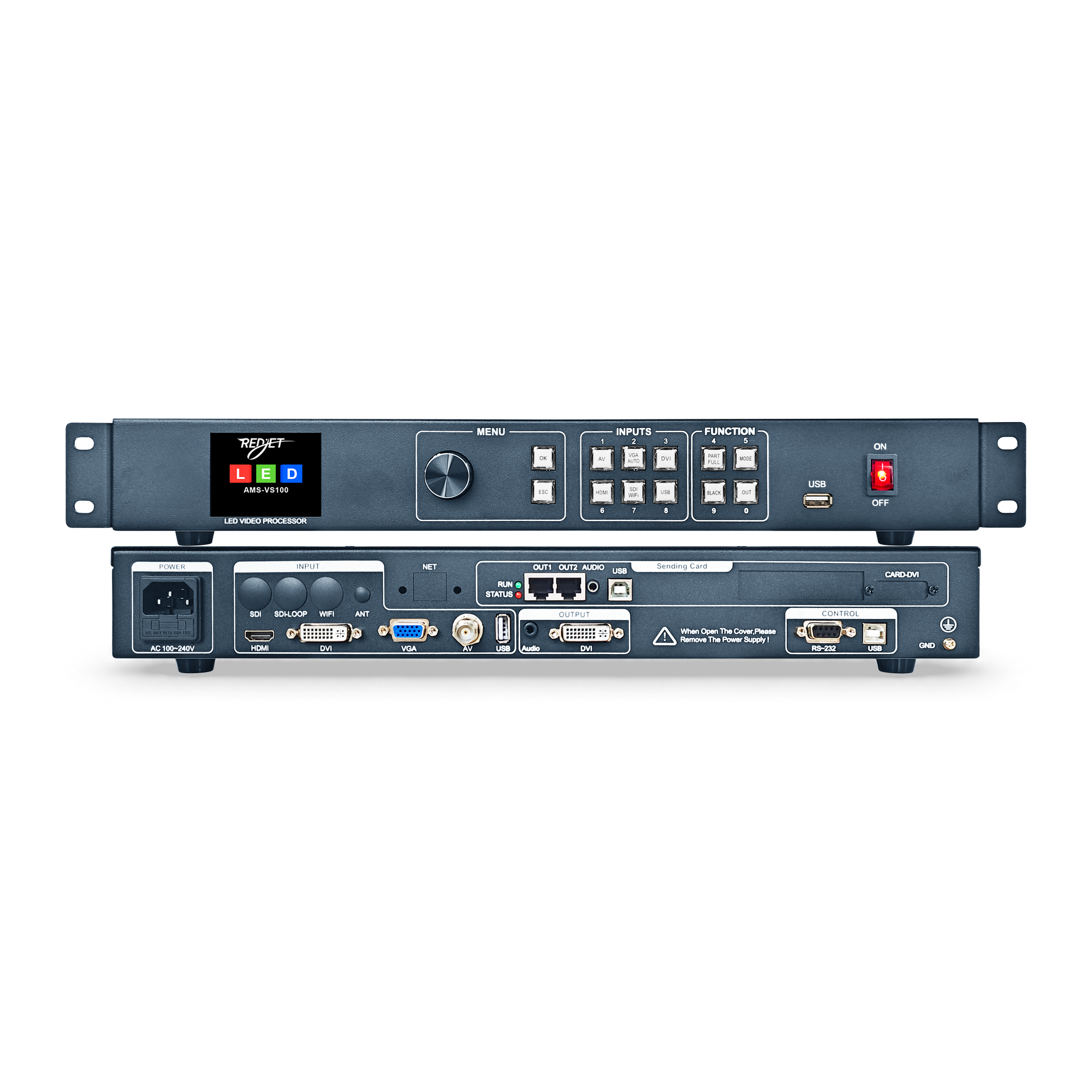

REDJET VS100 Series | LED Video Processor

$1,000.00

HDMI, DVI, VGA and composite AV sources. USB media playback, seamless switching and 10 presets. Choose the standard processor or add remote-control support, SDI or Wi-Fi display.

Preset memories
10
Power input
100–240 V AC, 50–60 Hz
HDMI input
1 input
DVI input
1 input

Description

REDJET VS100 Series

Your sources. One clear workflow.

A versatile LED video processor family for wired video, USB media playback and seamless source switching. Start with the shared platform, then choose remote-control support, SDI connectivity or Wi-Fi display to suit your setup.

Built into every model

  • Five core inputs
    HDMI, DVI, VGA, composite AV and USB media playback.
  • 10 saved setups
    Store and recall source, display and image settings for repeat use.
  • Direct front-panel control
    LCD, rotary control and dedicated source keys with signal-status indicators.
  • Practical show controls
    Seamless switching, full or partial picture, key lock and assignable black-screen or freeze operation.

Four models, clearly defined

VS100

Standard

The shared wired-input and USB playback platform.

VS100R

Remote control

Adds remote-control support.

VS100S

SDI input & loop

Adds SDI input and an SDI loop connection.

VS100W

Wi-Fi wireless display

Adds wireless display using IEEE 802.11n.

These are separate model options; the additional features are not cumulative.

Technical specifications

Explore the connections, controls and installation requirements below.

Video inputs & supported signals
HDMI 1 input. Documented video formats: 480i/p, 576i/p, 720p and 1080i/p. Documented colour depth: 8, 10 or 12 bit.
DVI 1 input. VESA signals up to 1920 × 1080 at 60 Hz. DVI-I input connector; the manual lists DVI-I and DVI-D cables.
VGA 1 input. VESA signals up to 1920 × 1080 at 60 Hz. Automatic image correction and manual position, width and clock-phase adjustment.
Composite AV 1 BNC input. PAL, NTSC, PAL-M/N and SECAM signal support.
USB media USB picture and video playback. Player settings include photo effects, delay and repeat mode.

Input resolution describes accepted source signals. It does not establish the pixel capacity or output resolution of the complete LED system.

Video output & LED display setup
  • DVI output: one programmed DVI video output for a compatible LED sending card or display.
  • Image placement: output settings include horizontal width, vertical height, horizontal position and vertical position.
  • Full / partial image: display the full source or a defined area using the FULL/PART controls and user-adjustable capture settings.
  • Sending-card configuration: the fitted card determines LED network outputs and receiving-system compatibility. Confirm the supplied configuration before specifying screen capacity.

The supplied documents disagree on maximum output resolution, sending-card quantity and RJ45 port count. A fixed maximum resolution or network-port count is therefore not stated as a confirmed specification for this product.

Image processing & source management
  • Seamless switching between supported source channels.
  • Image controls for brightness, contrast, colour saturation and sharpness.
  • VGA automatic adjustment, plus manual horizontal/vertical position, horizontal width and clock-phase controls.
  • The function menu lists EDID management, audio settings and source backup; the supplied manual does not specify every operating mode for these items.
  • Source-key indicators distinguish no signal, signal detection and an active connection.
Presets, front-panel controls & settings memory
  • 10 preset memories: save and recall source selection, display parameters and image settings.
  • Preset access: recall through the preset menu or MODE shortcut; the menu also supports save and erase operations.
  • Settings retention: current user parameters are stored in EEPROM and retained after power is removed.
  • BLACK key: assign either black screen or freeze in the function menu, then operate it with the front-panel button.
  • Key lock: helps prevent accidental changes. The manual describes holding OK for five seconds to unlock.
  • LCD and rotary control: navigate and confirm menu settings using the rotary control, OK and ESC.
USB playback & audio
  • Play pictures and videos from USB media.
  • Photo playback controls include effect selection, delay and repeat mode.
  • Audio/video synchronized output is documented for USB and HDMI, and for SDI on the SDI-equipped model.
  • The manual lists a 3.5 mm stereo audio output.

Supported file systems, codecs, maximum media-playback resolution and complete audio routing are not specified in the supplied documents; verify your intended media and signal path before use.

Model-specific connections
  • VS100: standard core-input configuration.
  • VS100R: remote-control support. The supplied documents do not confirm remote accessory inclusion or operating range.
  • VS100S: SDI input and SDI loop. Confirm the required SDI signal format against the supplied unit.
  • VS100W: Wi-Fi wireless display, IEEE 802.11n. Casting protocol, supported operating systems and pairing procedure require confirmation for the supplied unit.
Power, operating environment & weight
  • Power input: 100–240 V AC, 50–60 Hz, with internal power supply. Follow the rating label on the actual unit.
  • Operating temperature: 0 to +50 °C.
  • Storage temperature: −40 to +70 °C.
  • Humidity: 10–90% RH, non-condensing, for operation and storage.
  • Literature weight: 3.0 kg net and 4.0 kg packed. Confirm the shipped configuration and packaging for freight planning.

Use a grounded power supply and keep ventilation openings clear. Internal servicing must be carried out by qualified personnel.

Installation details to confirm before ordering
  • Fitted sending-card model and quantity, RJ45 output count, total pixel capacity and receiving-system compatibility.
  • Required output resolution and refresh rate for the complete LED system.
  • Actual enclosure dimensions, rack clearance and package dimensions; the available records contain conflicting measurements.
  • Included cables and accessories, the remote accessory for VS100R, and the casting protocol for VS100W.

Specifications above are compiled from the supplied VS100 series brochure and user manual. Configuration-dependent or contradictory values are identified explicitly.

Additional information

See what every model shares and which features make each option different.

Available Available Not available Not available — Not specified

Swipe across to compare options.

Product option comparison
FeaturesVS100VS100RVS100SVS100W
What makes each model different
ConfigurationStandardRemote controlSDI input & loopWi-Fi display
Remote-control supportNot availableAvailableNot availableNot available
SDI inputNot availableNot availableAvailableNot available
SDI loopNot availableNot availableAvailableNot available
Wi-Fi wireless displayNot availableNot availableNot availableAvailableIEEE 802.11n
Shared features & specifications
HDMI inputAvailable1 inputAvailable1 inputAvailable1 inputAvailable1 input
DVI inputAvailable1 inputAvailable1 inputAvailable1 inputAvailable1 input
VGA inputAvailable1 inputAvailable1 inputAvailable1 inputAvailable1 input
Composite AV inputAvailable1 BNC inputAvailable1 BNC inputAvailable1 BNC inputAvailable1 BNC input
USB picture & video playbackAvailableAvailableAvailableAvailable
Seamless source switchingAvailableAvailableAvailableAvailable
Full / partial imageAvailableAvailableAvailableAvailable
Image controlsBrightness, contrast, colour saturation & sharpnessBrightness, contrast, colour saturation & sharpnessBrightness, contrast, colour saturation & sharpnessBrightness, contrast, colour saturation & sharpness
VGA image adjustmentAvailableAutomatic & manualAvailableAutomatic & manualAvailableAutomatic & manualAvailableAutomatic & manual
Preset memories10101010
LCD & rotary controlAvailableAvailableAvailableAvailable
Source keys & signal indicatorsAvailableAvailableAvailableAvailable
Black screen / freezeAvailableAssignable BLACK keyAvailableAssignable BLACK keyAvailableAssignable BLACK keyAvailableAssignable BLACK key
Key lockAvailableAvailableAvailableAvailable
Settings retained after power-offAvailableEEPROMAvailableEEPROMAvailableEEPROMAvailableEEPROM
DVI video outputAvailable1 outputAvailable1 outputAvailable1 outputAvailable1 output
Stereo audio outputAvailable3.5 mmAvailable3.5 mmAvailable3.5 mmAvailable3.5 mm
HDMI video formats480i/p, 576i/p, 720p, 1080i/p480i/p, 576i/p, 720p, 1080i/p480i/p, 576i/p, 720p, 1080i/p480i/p, 576i/p, 720p, 1080i/p
HDMI colour depth8 / 10 / 12 bit8 / 10 / 12 bit8 / 10 / 12 bit8 / 10 / 12 bit
DVI / VGA input resolutionUp to 1920 × 1080 at 60 HzUp to 1920 × 1080 at 60 HzUp to 1920 × 1080 at 60 HzUp to 1920 × 1080 at 60 Hz
Composite video formatsPAL, NTSC, PAL-M/N, SECAMPAL, NTSC, PAL-M/N, SECAMPAL, NTSC, PAL-M/N, SECAMPAL, NTSC, PAL-M/N, SECAM
USB photo controlsEffects, delay & repeat modeEffects, delay & repeat modeEffects, delay & repeat modeEffects, delay & repeat mode
Function menu itemsEDID management, audio settings & source backupEDID management, audio settings & source backupEDID management, audio settings & source backupEDID management, audio settings & source backup
Power input100–240 V AC, 50–60 Hz100–240 V AC, 50–60 Hz100–240 V AC, 50–60 Hz100–240 V AC, 50–60 Hz
Operating temperature0 to +50 °C0 to +50 °C0 to +50 °C0 to +50 °C
Storage temperature−40 to +70 °C−40 to +70 °C−40 to +70 °C−40 to +70 °C
Humidity10–90% RH, non-condensing10–90% RH, non-condensing10–90% RH, non-condensing10–90% RH, non-condensing
Net weight3.0 kg3.0 kg3.0 kg3.0 kg
Packed weight4.0 kg4.0 kg4.0 kg4.0 kg
Output resolution & pixel capacityConfiguration dependentConfiguration dependentConfiguration dependentConfiguration dependent
LED sending-card & network outputsConfiguration dependentConfiguration dependentConfiguration dependentConfiguration dependent
Enclosure & package dimensionsTo be confirmed for the supplied unitTo be confirmed for the supplied unitTo be confirmed for the supplied unitTo be confirmed for the supplied unit
Choose your model
Price$1,000.00 USD$1,000.00 USD$1,000.00 USD$1,000.00 USD
AvailabilityIn stockIn stockIn stockIn stock
Your choiceSelect optionSelect optionSelect optionSelect option
