Description

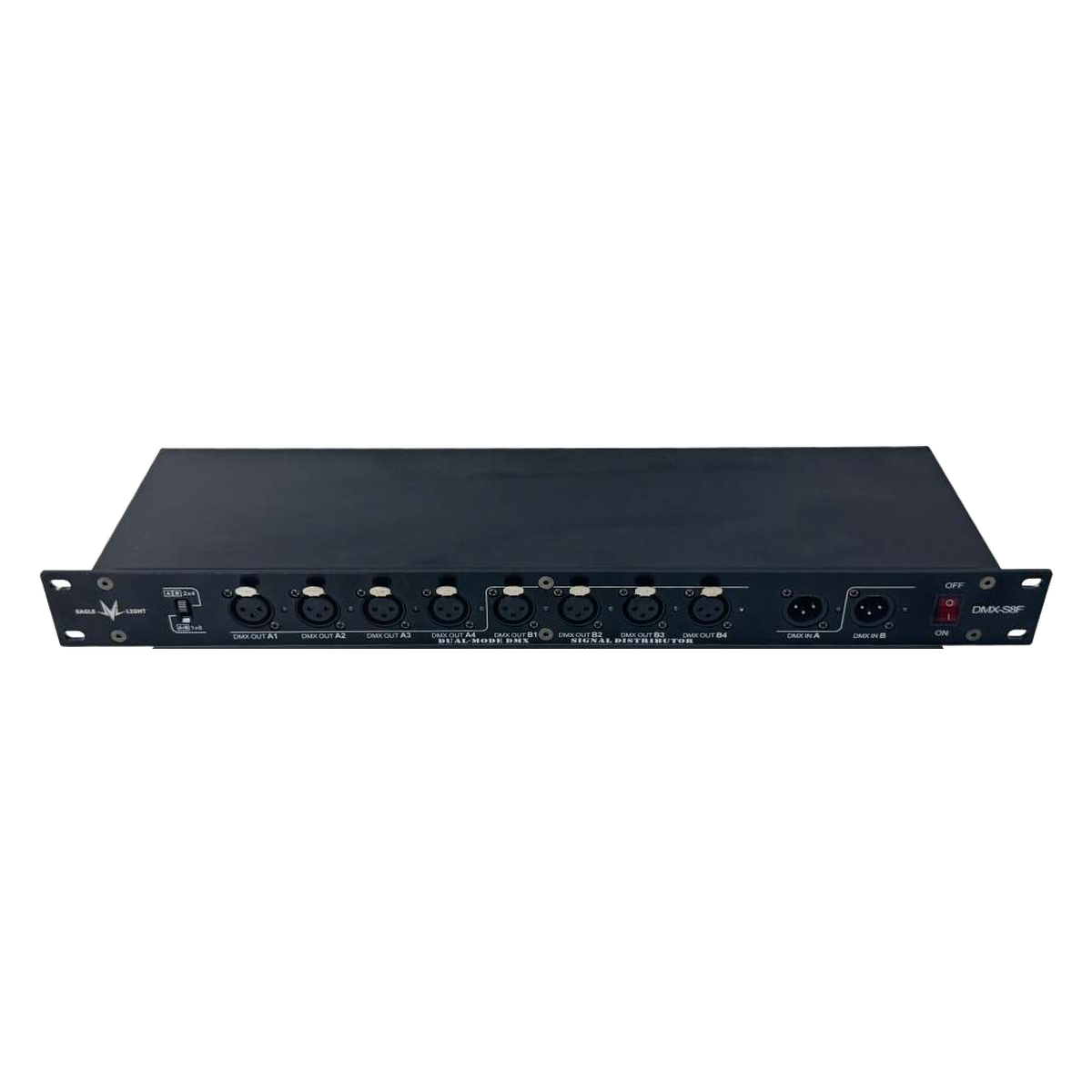

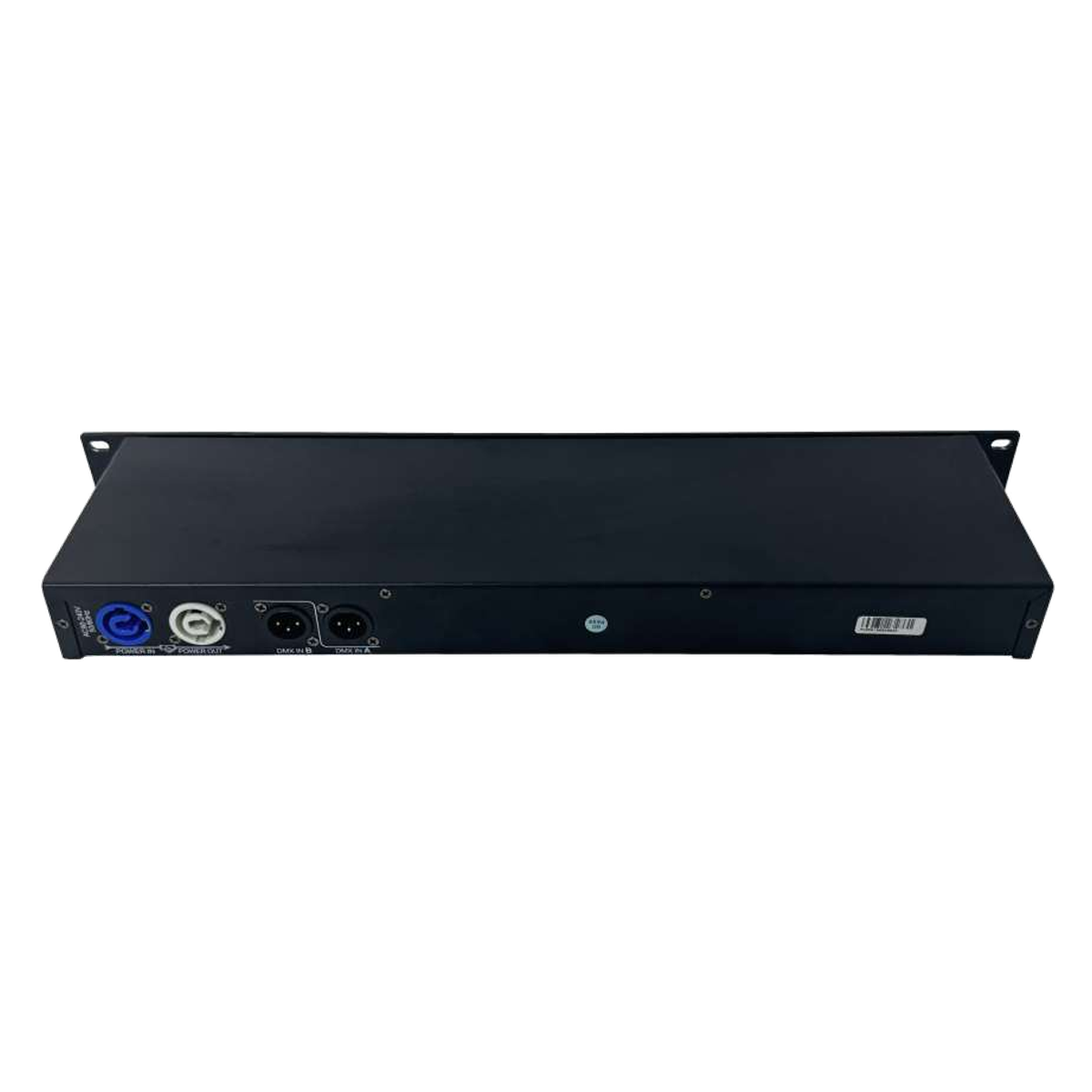

EAGLE LIGHT DMX-S8F 8-Channel Dual-Mode DMX Signal Splitter
The EAGLE LIGHT DMX-S8F is a 8-channel dual-mode dmx signal splitter for professional DMX lighting signal routing. The manufacturer’s catalog specifies the following model-specific configuration and connection features.
Key Features & Benefits
- Control protocol: DMX512.
- Interface: RS-485.
- Operating mode 1: Two groups: 1 input to 4 outputs each.
- Operating mode 2: One group: 1 input to 8 outputs.
- Status and isolation: Independent signal indicators, photoelectric isolation.
Professional Signal Distribution
This unit provides the documented connection or operating arrangement for distributing DMX lighting-control signals in stage or venue signal systems. Select the correct model according to its output count, physical connection type and installation format.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Model (catalog text) | DMX-S8F |
| Product type | 8-Channel Dual-Mode DMX Signal Splitter |
| Control protocol | DMX512 |
| Interface | RS-485 |
| Operating mode 1 | Two groups: 1 input to 4 outputs each |
| Operating mode 2 | One group: 1 input to 8 outputs |
| Status and isolation | Independent signal indicators, photoelectric isolation |
Model & Installation Notes
The product model and technical characteristics are taken only from this model’s entry in the supplied EAGLE LIGHT catalog.
Electrical ratings, dimensions and certifications not stated for this model are not estimated.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 5.
