EAGLE LIGHT CS0302I DMX Mixer – 3 Inputs / 2 Outputs
The EAGLE LIGHT CS0302I is a DMX mixer for professional lighting-control installations where control signals need to be managed from multiple connection points. The manufacturer's catalog specifies three DMX signal inputs and two signal outputs, with multi-point control of lighting fixtures and seamless switching when devices are added on-site.
Key Features & Benefits
- Three signal inputs: The unit has three documented signal-input connections for a multi-input control arrangement.
- Two signal outputs: Two signal outputs are specified in the manufacturer listing.
- Multi-point lighting control: The catalog describes control of lighting fixtures from multiple points.
- On-site signal switching: The manufacturer describes seamless switching when additional devices are connected on-site.

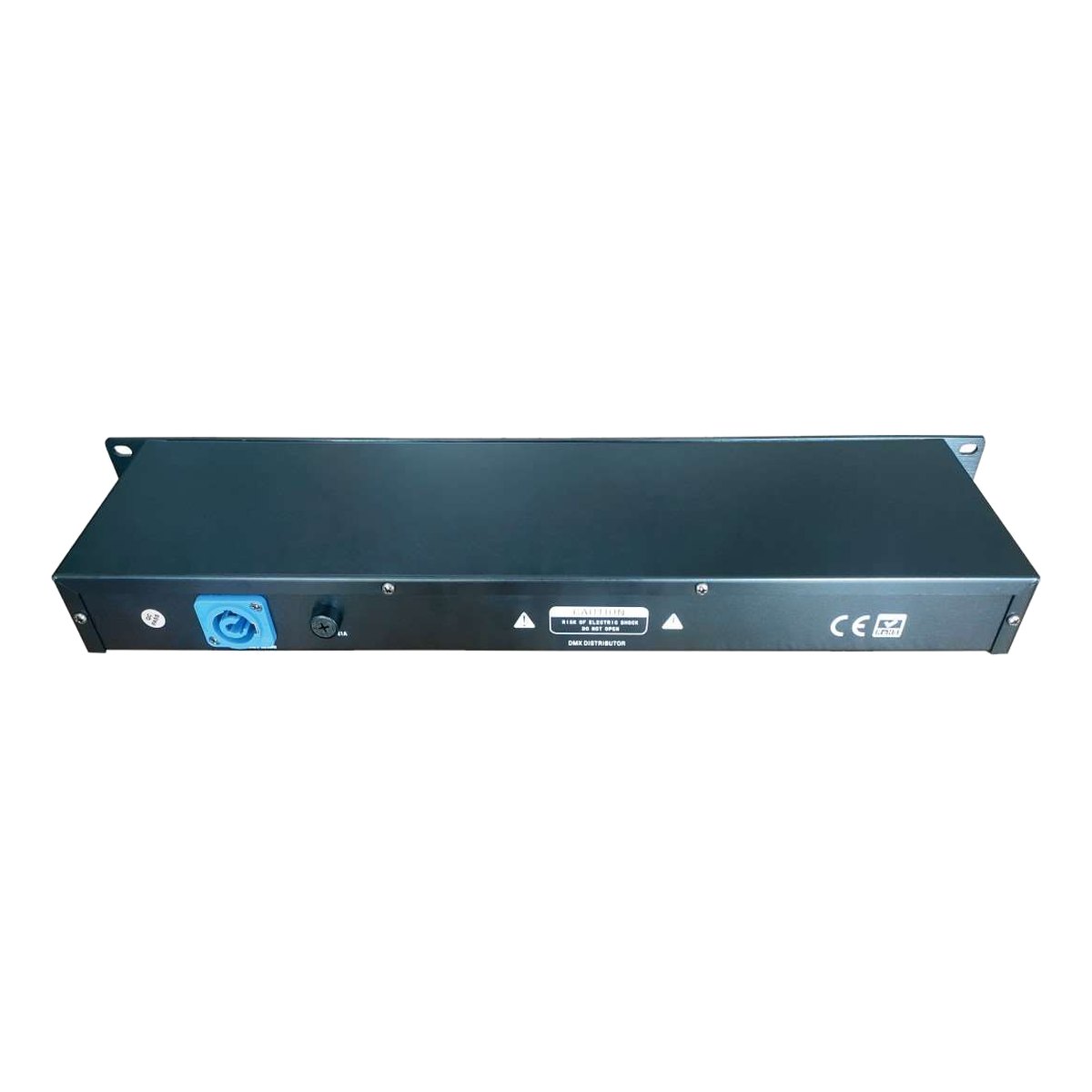

- Rack-style control unit: The original manufacturer photos show a low-profile rack-mounted style chassis and clearly arranged front/rear connection panels.
Professional DMX & RDM Applications
Designed for stage and venue lighting control systems that require documented multi-input DMX signal routing. The manufacturer has not specified the internal mixing priority, HTP/LTP behavior, electrical power requirements, isolation, or dimensions for this catalog entry; confirm these before integration.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Catalog model | CS0302I |
| Product type | DMX Mixer |
| DMX signal inputs | 3 |
| DMX signal outputs | 2 |
| Control use | Multi-point lighting fixture control |
| On-site switching | Seamless switching when adding devices (manufacturer-described) |
Manufacturer Model Identification

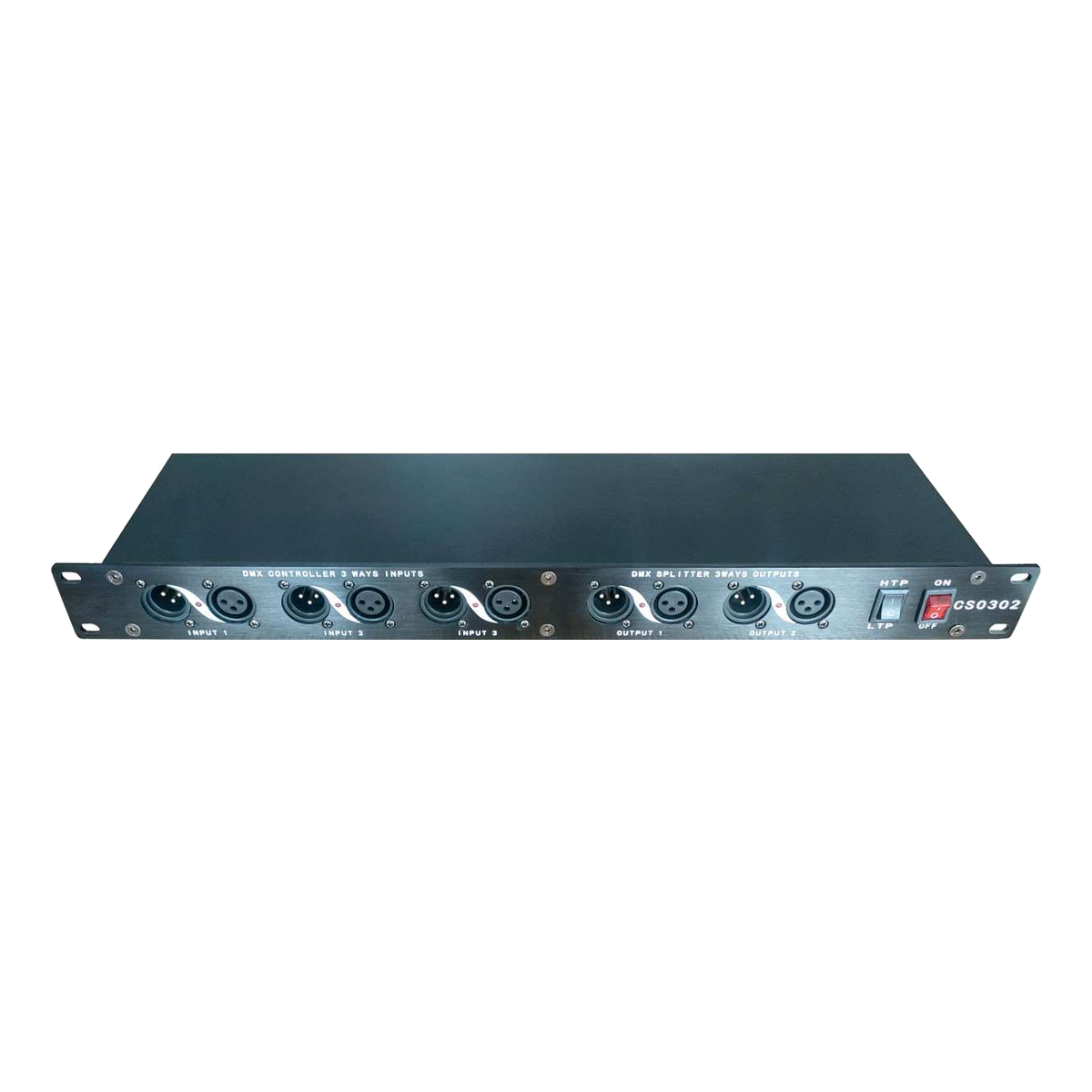

Model-label discrepancy: The searchable catalog text identifies this product as CS0302I, but the visible catalog heading and hardware front-panel label read CS0302. The catalog does not explain whether the final 'I' denotes a revision or alternate designation. This listing uses the catalog text model CS0302I; confirm the delivered hardware model before ordering. Do not assume that every CS0302 and CS0302I unit is identical.
Technical claims are limited to the user-supplied EAGLE LIGHT manufacturer catalog, PDF page 7 (printed page 3). No undocumented electrical ratings, performance data or certifications have been estimated.
