Description

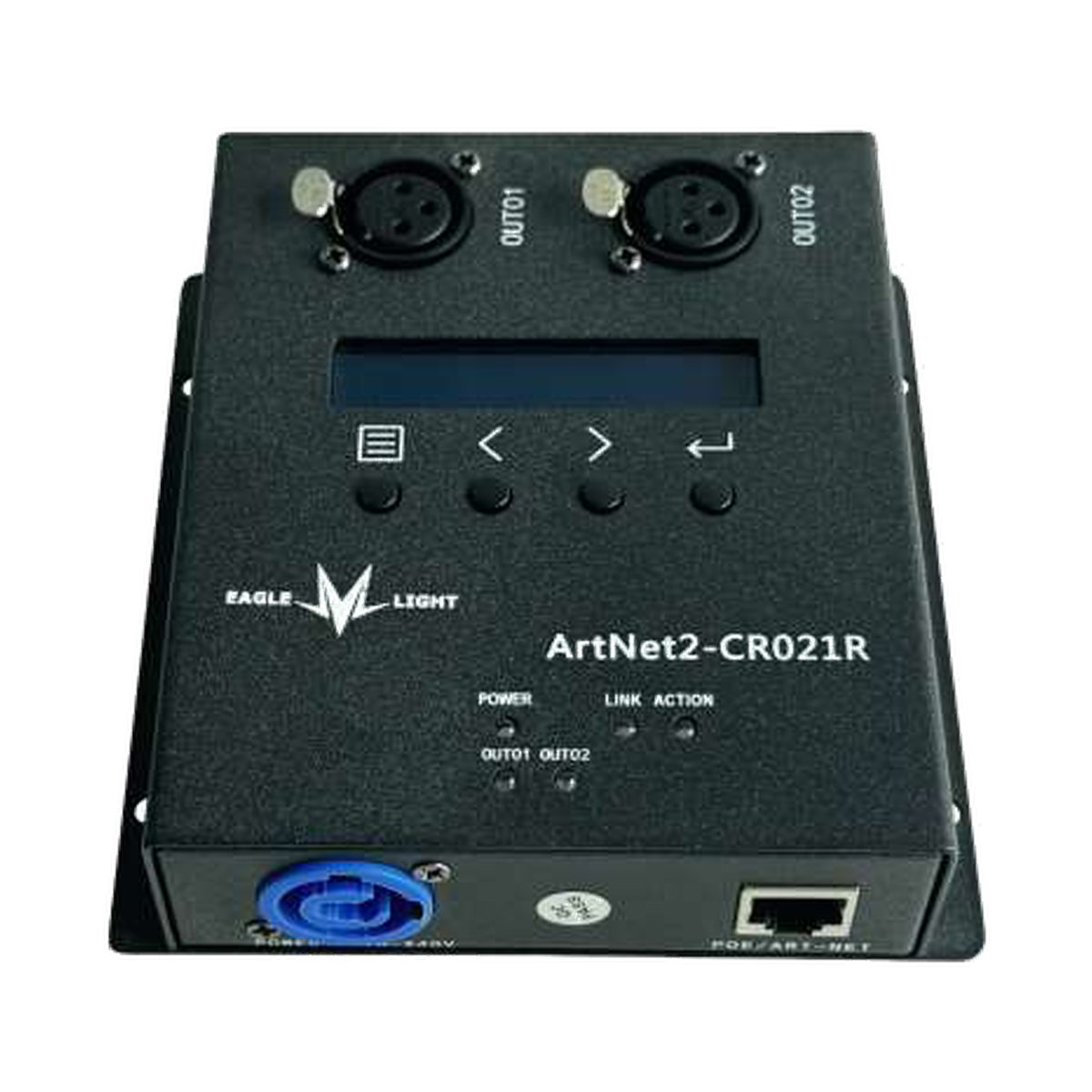

EAGLE LIGHT CR021R — Professional 2-Channel Art-Net DMX Network Controller
CR021R is an EAGLE LIGHT 2-channel art-net dmx network controller providing Art-Net broadcast/unicast management and bidirectional protocol conversion, with two DMX512 outputs. The following features are documented for this exact model in the manufacturer catalog.
Key Features
- Broadcast and unicast: Supports Art-Net management by broadcast or unicast.
- Bidirectional conversion: Supports conversion between Art-Net and DMX control data.
- Two DMX512 outputs: Distributes the network-control data to two DMX512 outputs.
- Console integration: Catalog examples include Tiger Touch, MA console series and Madrix systems.
Lighting Signal Workflow
This device is intended for professional stage-lighting control installations using the supported network and lighting-control protocols. Select the model according to the specified direction of signal conversion, output count and connection requirements; capabilities vary between models.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Model | CR021R |
| Product type | 2-Channel Art-Net DMX Network Controller |
| Art-Net management | Broadcast or unicast |
| Signal conversion | Bidirectional |
| Art-Net data input | 1 channel |
| DMX512 data outputs | 2 channels |
Model-specific specifications from the supplied EAGLE LIGHT manufacturer catalog; unspecified electrical and physical parameters are not estimated.
