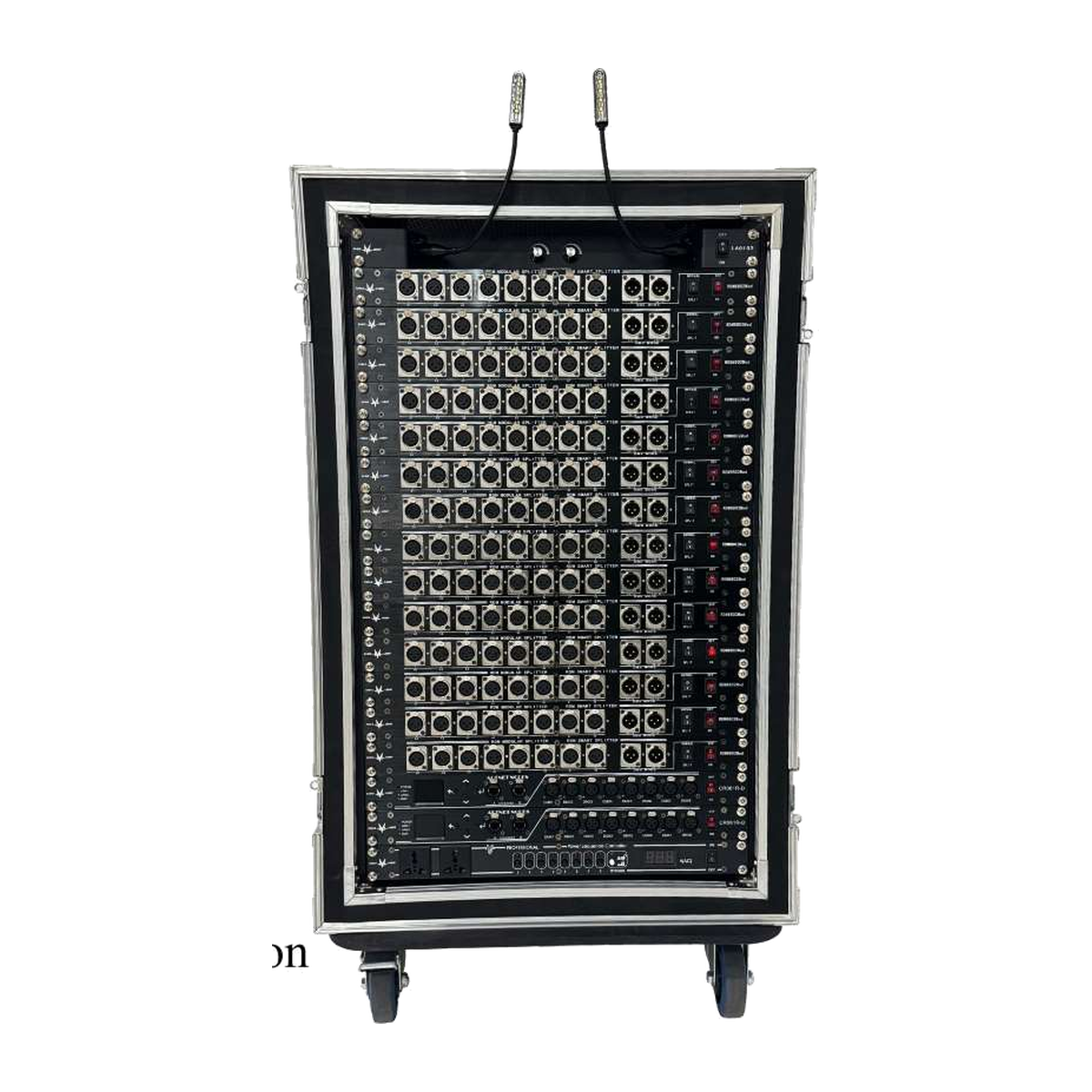

EAGLE LIGHT CPS18S-1 — 18U Integrated Signal Cabinet
The EAGLE LIGHT CPS18S-1 is a 18U modular rdm & art-net signal cabinet for organized stage-lighting equipment and signal distribution. The manufacturer specifies this exact model with the integrated components and signal capabilities listed below.
Key Features & Benefits
- RDM distribution: The catalog specifies 14-universe, eight-channel RDM distributed output.
- Dual Art-Net connection: Dual Art-Net input is explicitly listed.
- Modular signal architecture: Each RDM output port is described as using a modular structure.
- Adjustable cabinet lighting: The included cabinet light has adjustable brightness for wiring and maintenance.
- Manufacturer-listed switching option: The catalog says the RDM distributor can be switched for up to 48-universe input; the switching arrangement is not further specified.

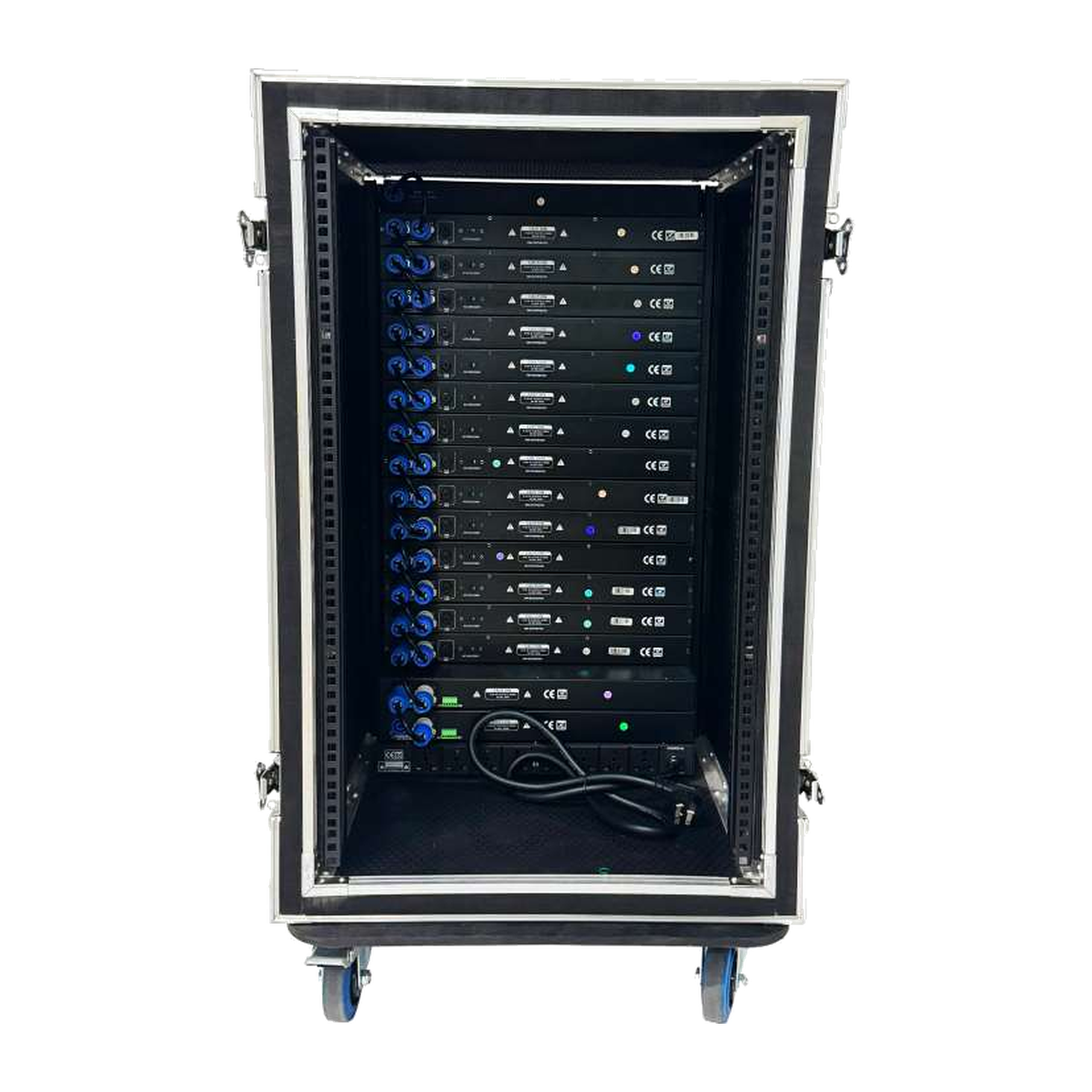

Manufacturer-Listed Cabinet Configuration
| Component | Model | Quantity |
|---|---|---|
| Cabinet light | LA0102 | 1 |
| 8-channel RDM signal splitter | RDM8802Mod | 14 |
| 8-channel RDM Art-Net controller | CR061R-D | 2 |
| 8-channel power sequencer | CP0803 | 1 |
Professional Lighting System Applications
Designed for centralized lighting-control wiring in large bars, banquet halls and multifunction venues where multiple RDM signal distribution branches and Art-Net input are needed.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CPS18S-1 |
| Cabinet type | Modular RDM & Art-Net Signal Cabinet |
| Cabinet rack size | 18U |
| Series | Stage Signal & Power Cabinet Series |
Model & Configuration Notes
Cabinet component quantities are those listed by the manufacturer. The 48-universe input statement is a catalog claim without a documented port-by-port configuration, so no additional DMX universe performance is inferred.
Plan system cabling, electrical power and compatible signal connections using the actual manufacturer installation information. No dimensions, power ratings or certifications have been estimated from the illustrations.
Source: supplied EAGLE LIGHT catalog, PDF page 30.
