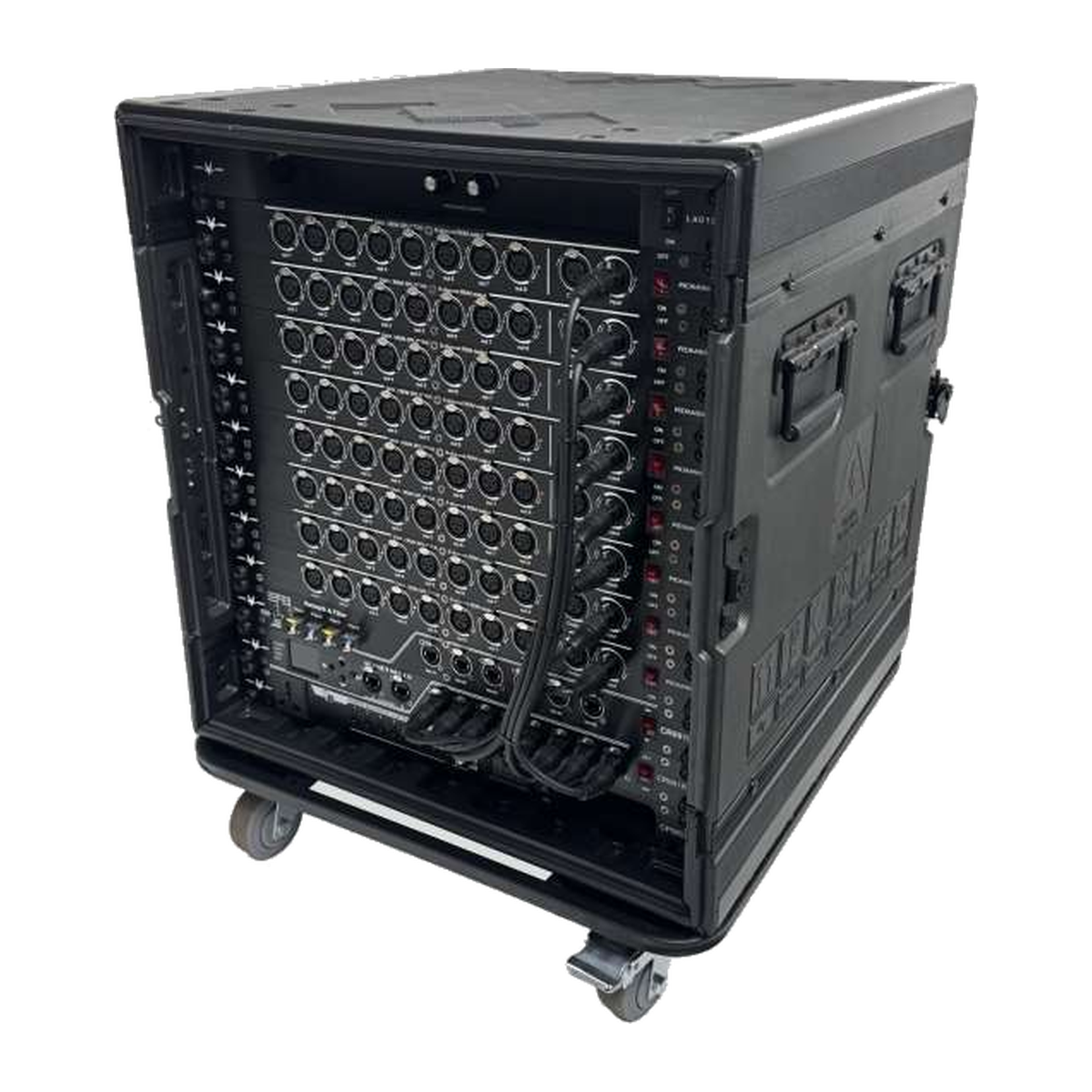

EAGLE LIGHT CPS12S-1 — 12U Integrated Signal Cabinet
The EAGLE LIGHT CPS12S-1 is a 12U rdm art-net & fiber network signal cabinet for organized stage-lighting equipment and signal distribution. The manufacturer specifies this exact model with the integrated components and signal capabilities listed below.
Key Features & Benefits
- Eight RDM universes: Supports the catalog-listed eight-universe, eight-channel RDM distribution arrangement.
- Art-Net input: The integrated system is listed with Art-Net input support.
- Fiber and Ethernet networking: The included network configuration is described as four Gigabit optical ports and eight Gigabit Ethernet ports.
- Cabinet illumination: A dedicated cabinet light with adjustable brightness assists with centralized wiring and maintenance.

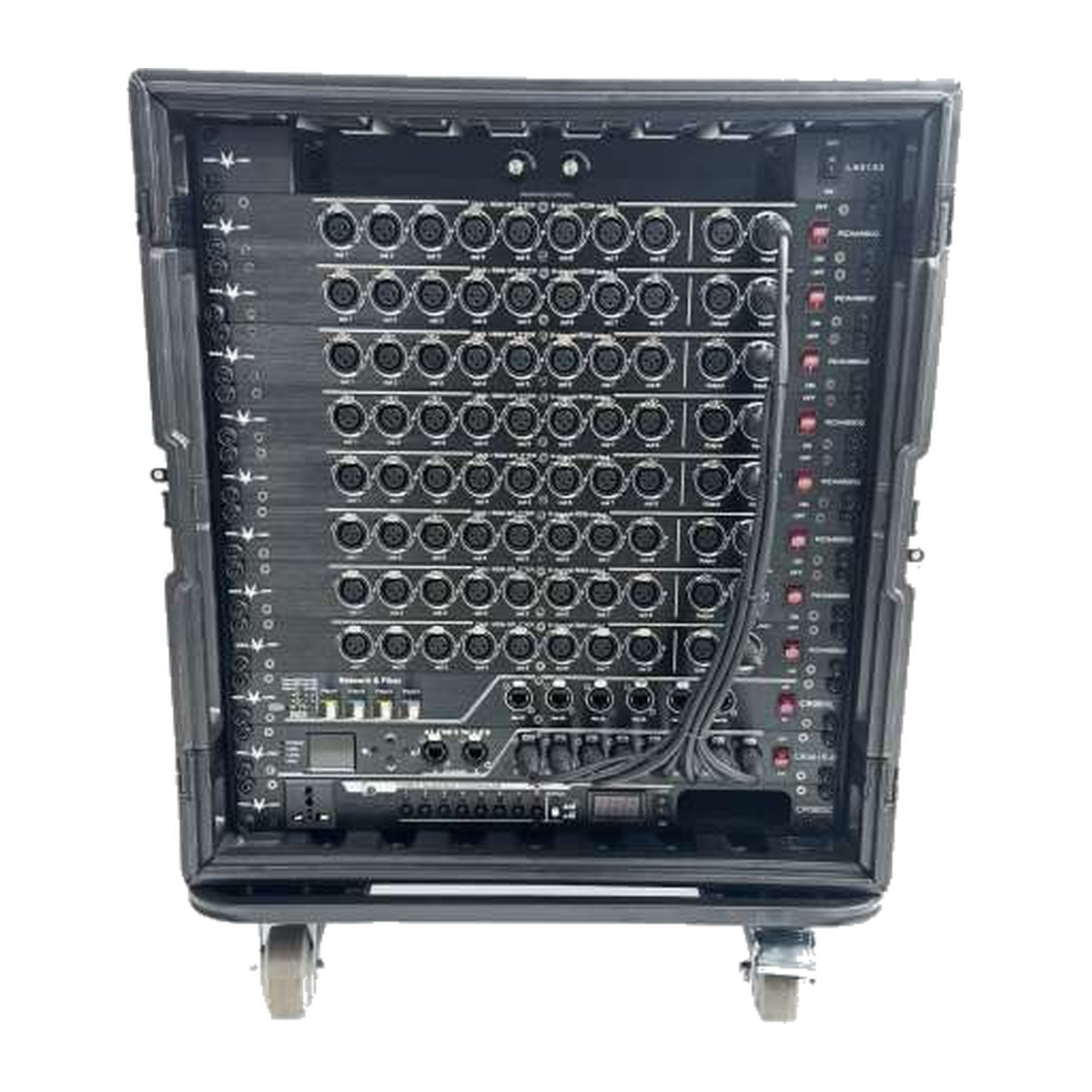

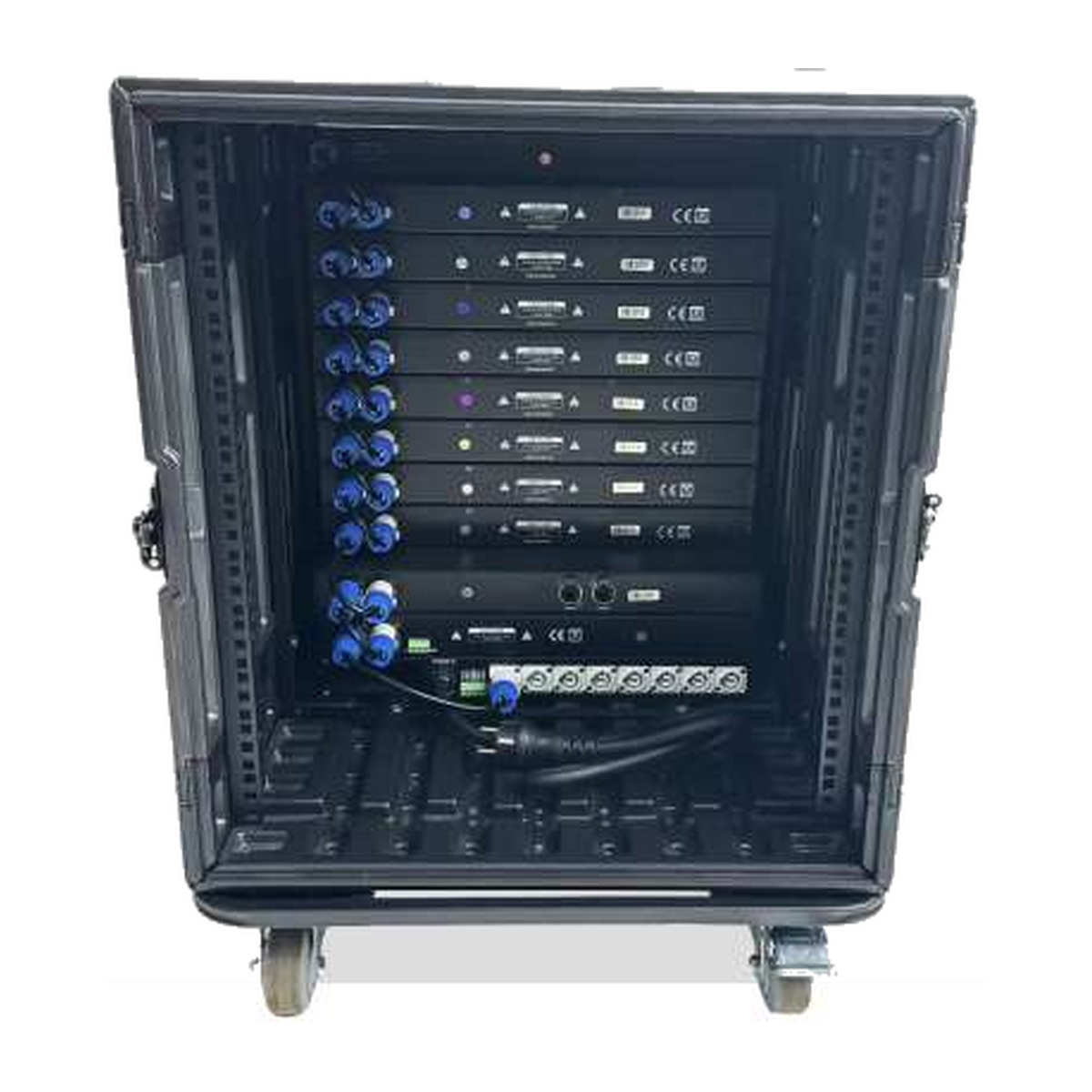

Manufacturer-Listed Cabinet Configuration
| Component | Model | Quantity |
|---|---|---|
| Cabinet light | LA0102 | 1 |
| 8-channel RDM signal splitter | RDM8802 | 8 |
| 8-port fiber optic switch | CR091L | 1 |
| 8-channel RDM Art-Net controller | CR061R-D | 1 |
| 8-channel power sequencer | CP0803C | 1 |
Professional Lighting System Applications
For medium to large bar, banquet-hall and multipurpose-venue installations that call for Art-Net, RDM distribution, fiber networking and organized cabinet-based signal wiring.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CPS12S-1 |
| Cabinet type | RDM Art-Net & Fiber Network Signal Cabinet |
| Cabinet rack size | 12U |
| Series | Stage Signal & Power Cabinet Series |
Model & Configuration Notes
The advertised optical and Ethernet port counts apply to the listed cabinet configuration. They are not assumed to be the port counts of every component in isolation.
Plan system cabling, electrical power and compatible signal connections using the actual manufacturer installation information. No dimensions, power ratings or certifications have been estimated from the illustrations.
Source: supplied EAGLE LIGHT catalog, PDF page 30.
