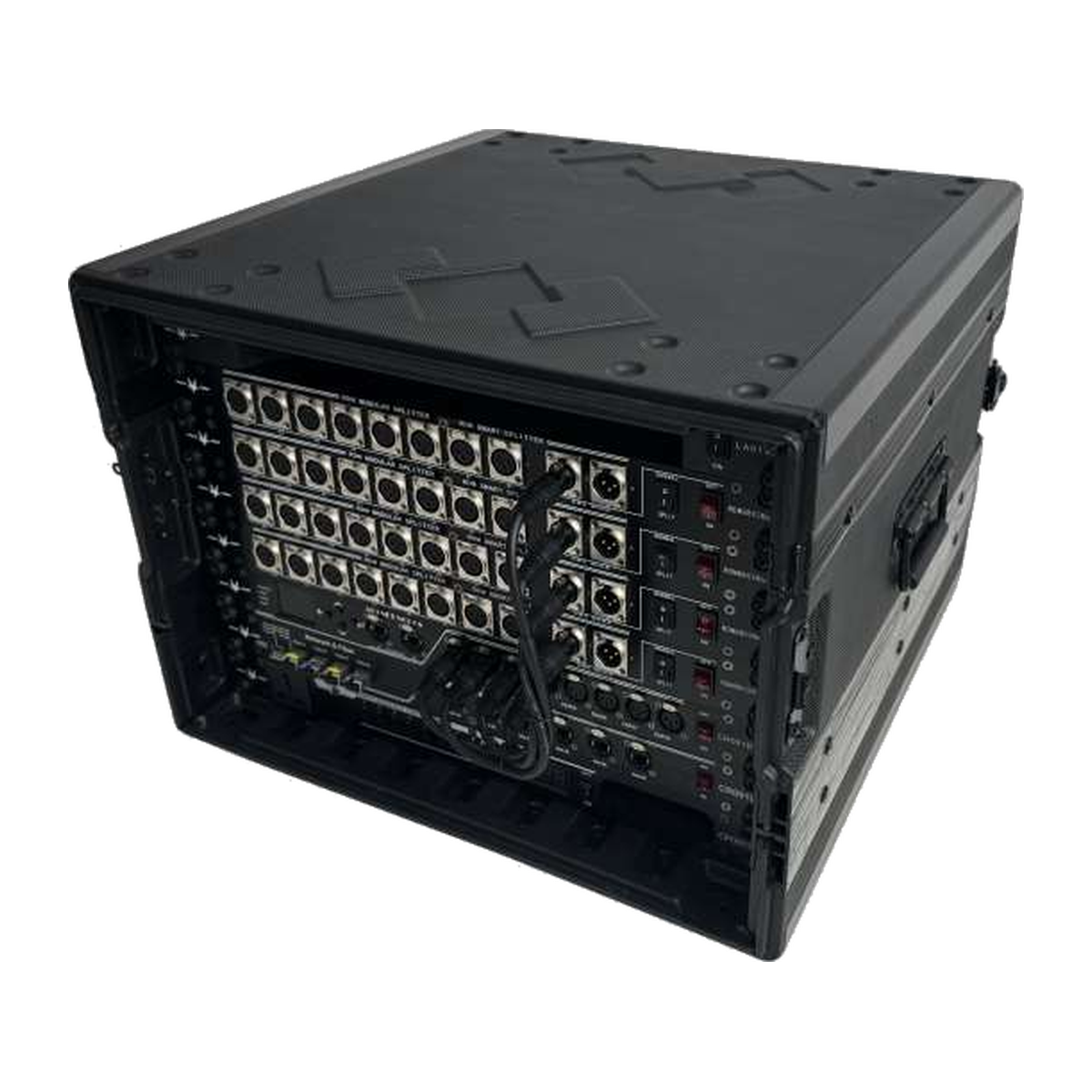

EAGLE LIGHT CPS08S-1 — 8U Integrated Signal Cabinet
The EAGLE LIGHT CPS08S-1 is a 8U rdm art-net & fiber network signal cabinet for organized stage-lighting equipment and signal distribution. The manufacturer specifies this exact model with the integrated components and signal capabilities listed below.
Key Features & Benefits
- Four-universe RDM distribution: The manufacturer lists four-universe, eight-channel RDM distributed output.
- Art-Net signal input: Art-Net input is included for networked stage-lighting control.
- Fiber network connections: The catalog specifies four Gigabit optical ports and eight Gigabit Ethernet ports.
- Illuminated signal cabinet: The cabinet includes a dedicated adjustable-brightness light.

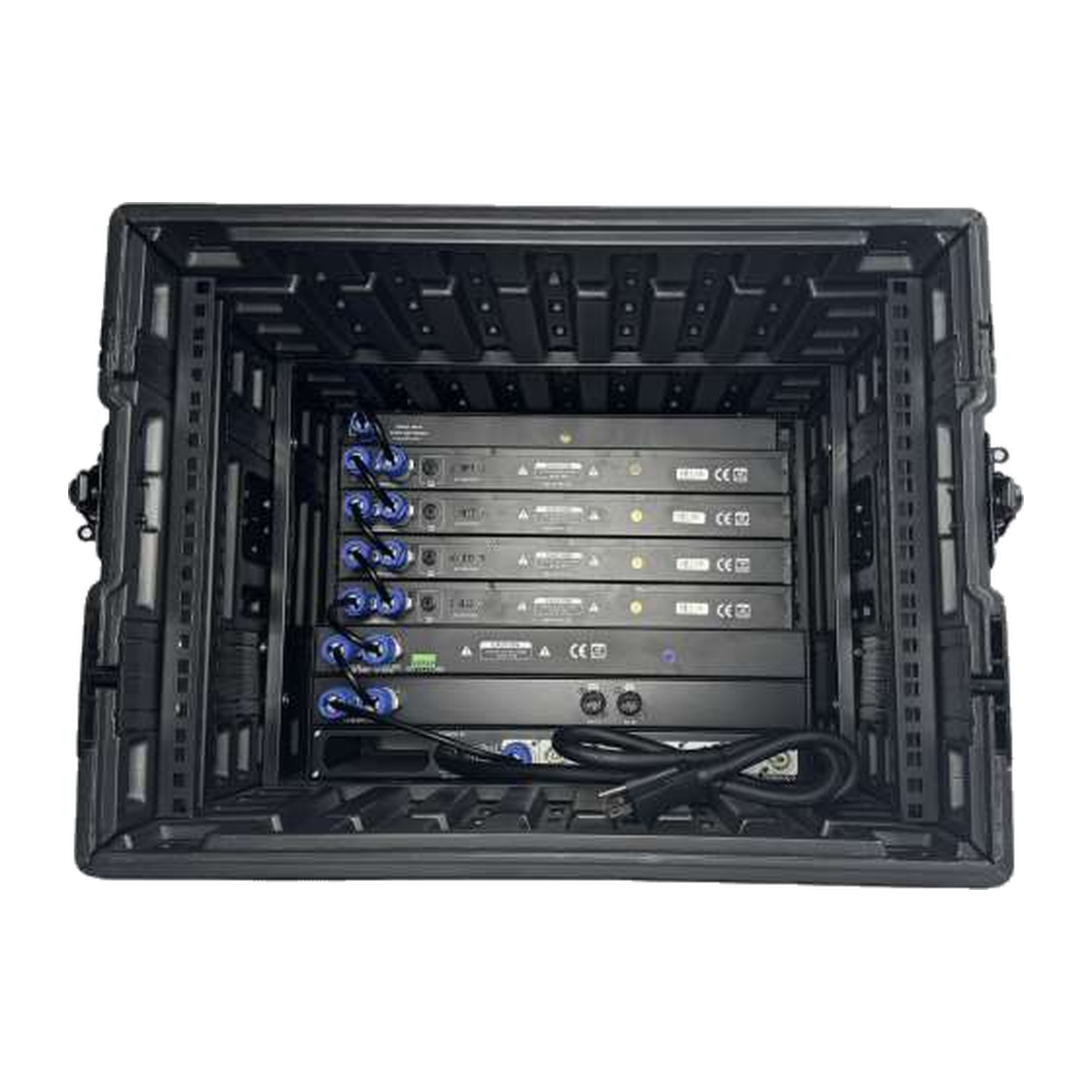

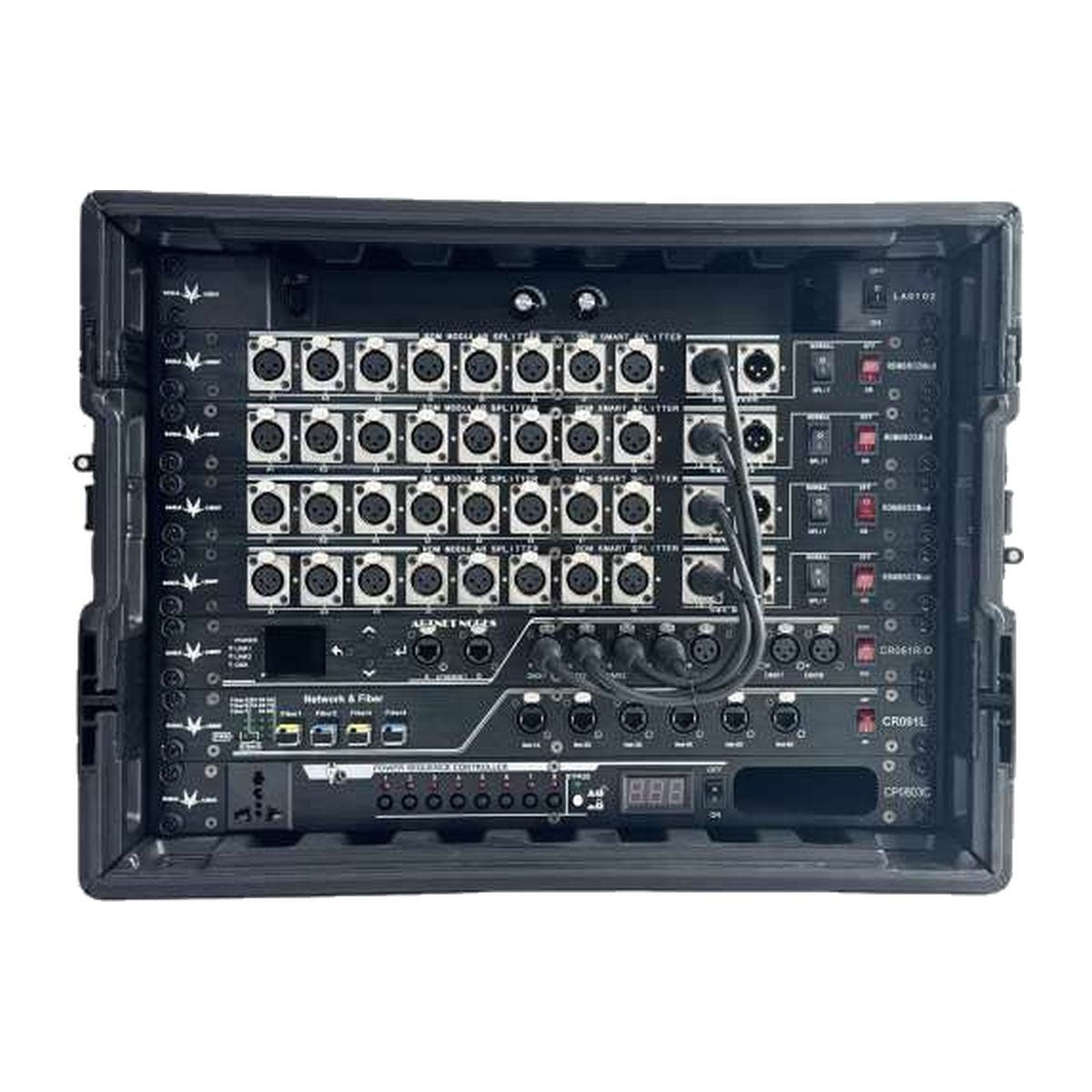

Manufacturer-Listed Cabinet Configuration
| Component | Model | Quantity |
|---|---|---|
| Cabinet light | LA0102 | 1 |
| 8-channel modular RDM splitter | RDM8802Mod | 4 |
| 8-channel RDM Art-Net controller | CR061R-D | 1 |
| 8-port fiber optic switch | CR091L | 1 |
| 8-channel power sequencer | CP0803C | 1 |
Professional Lighting System Applications
Suitable for small and medium performance venues, lounges, bars, KTV rooms and event systems requiring combined RDM, Art-Net and fiber-network connectivity.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CPS08S-1 |
| Cabinet type | RDM Art-Net & Fiber Network Signal Cabinet |
| Cabinet rack size | 8U |
| Series | Stage Signal & Power Cabinet Series |
Model & Configuration Notes
This 8U model is distinct from CPS08S-2: its listed configuration uses four modular RDM splitters plus a CR091L fiber switch and CP0803C sequencer.
Plan system cabling, electrical power and compatible signal connections using the actual manufacturer installation information. No dimensions, power ratings or certifications have been estimated from the illustrations.
Source: supplied EAGLE LIGHT catalog, PDF page 31.
