Description
EAGLE LIGHT CPS06S-3 — 6U Integrated Signal Cabinet
The EAGLE LIGHT CPS06S-3 is a 6U rdm art-net signal & power sequencer cabinet for professional stage-lighting signal routing and centralized rack integration. Only the exact model’s components and capabilities documented in the supplied manufacturer catalog are described below.
Key Features & Benefits
- Four-universe RDM distribution: The catalog lists four-universe, eight-channel RDM distributed output.
- Art-Net network input: The integrated controller provides Art-Net input support.
- Power sequencing: The listed internal power-control device is an eight-channel CP0803 power sequencer.
- Centralized stage equipment: Combines RDM signal distribution with the listed sequencer in a 6U housing.

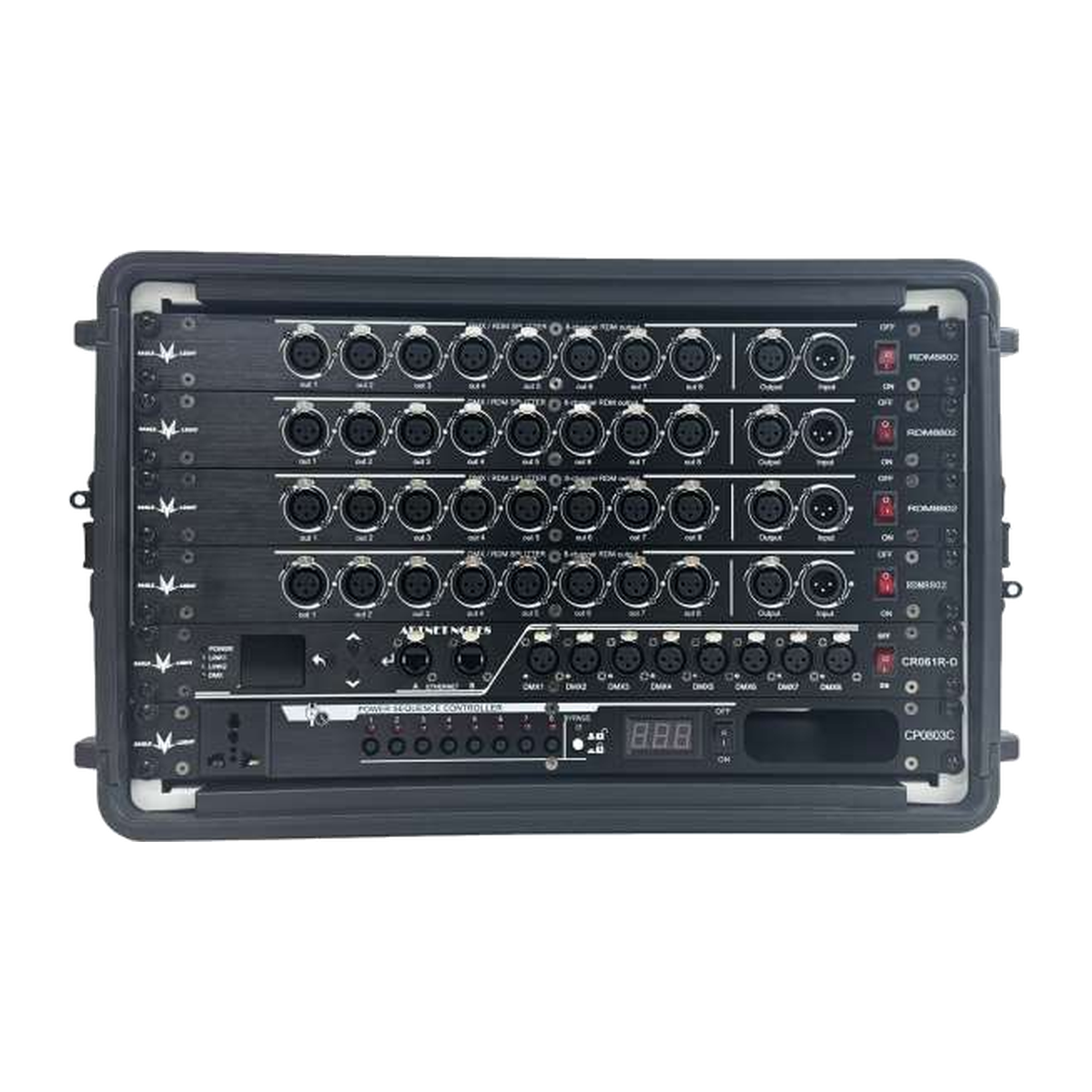

Manufacturer-Listed Cabinet Configuration
| Component | Model | Quantity |
|---|---|---|
| 8-channel RDM signal splitter | RDM8802 | 4 |
| 8-channel RDM Art-Net controller | CR061R-D | 1 |
| 8-channel power sequencer | CP0803 | 1 |
Professional Stage Applications
For compact RDM and Art-Net control systems in weddings, banquet halls, conference rooms, lounges and smaller performances.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CPS06S-3 |
| Cabinet rack size | 6U |
| Cabinet type | RDM Art-Net Signal & Power Sequencer Cabinet |
| Product family | Stage Signal & Power Cabinet Series |
Catalog Consistency & Model Notes
Catalog inconsistency: The components list one CP0803 eight-channel power sequencer, while the general description refers to a ten-channel power distributor with voltage display and overcurrent protection. This listing uses the model-specific component list and does not assert that the ten-channel distributor is installed.
Confirm rack clearance, supply compatibility, signal cabling and equipment requirements before installation. Unspecified electrical ratings and dimensions are not estimated.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 32.
