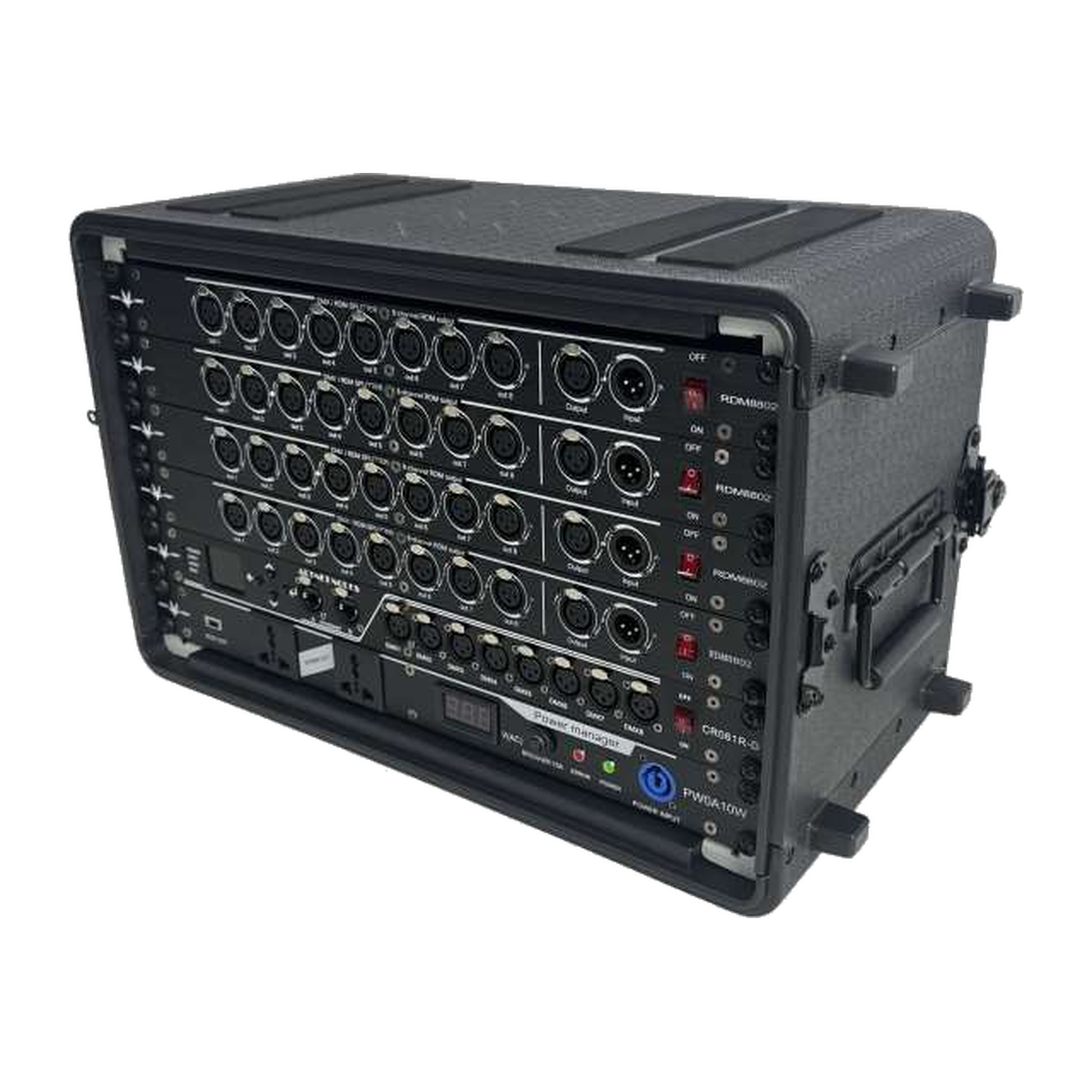

EAGLE LIGHT CPS06S-2 — 6U Integrated Signal Cabinet
The EAGLE LIGHT CPS06S-2 is a 6U rdm art-net & power signal cabinet for organized stage-lighting equipment and signal distribution. The manufacturer specifies this exact model with the integrated components and signal capabilities listed below.
Key Features & Benefits
- Four-universe RDM distribution: Supports four-universe, eight-channel RDM distributed output as described by the manufacturer.
- Art-Net network input: An integrated RDM Art-Net controller provides Art-Net input support.
- Cabinet power system: A PW0A10W ten-way cabinet power supply unit is included.
- Catalog-listed auxiliary supplies: The cabinet description mentions external AC and 5 V DC supply connections.

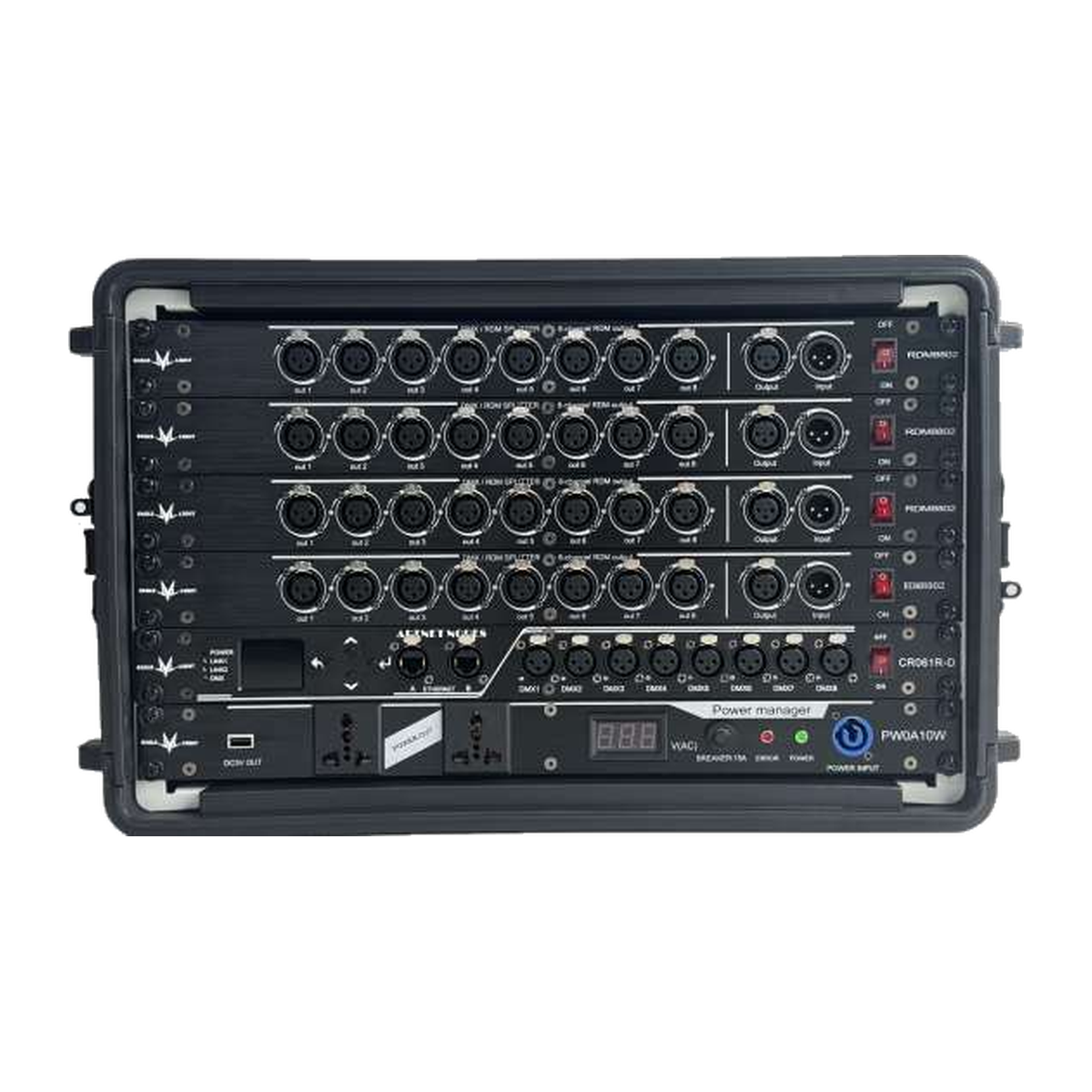

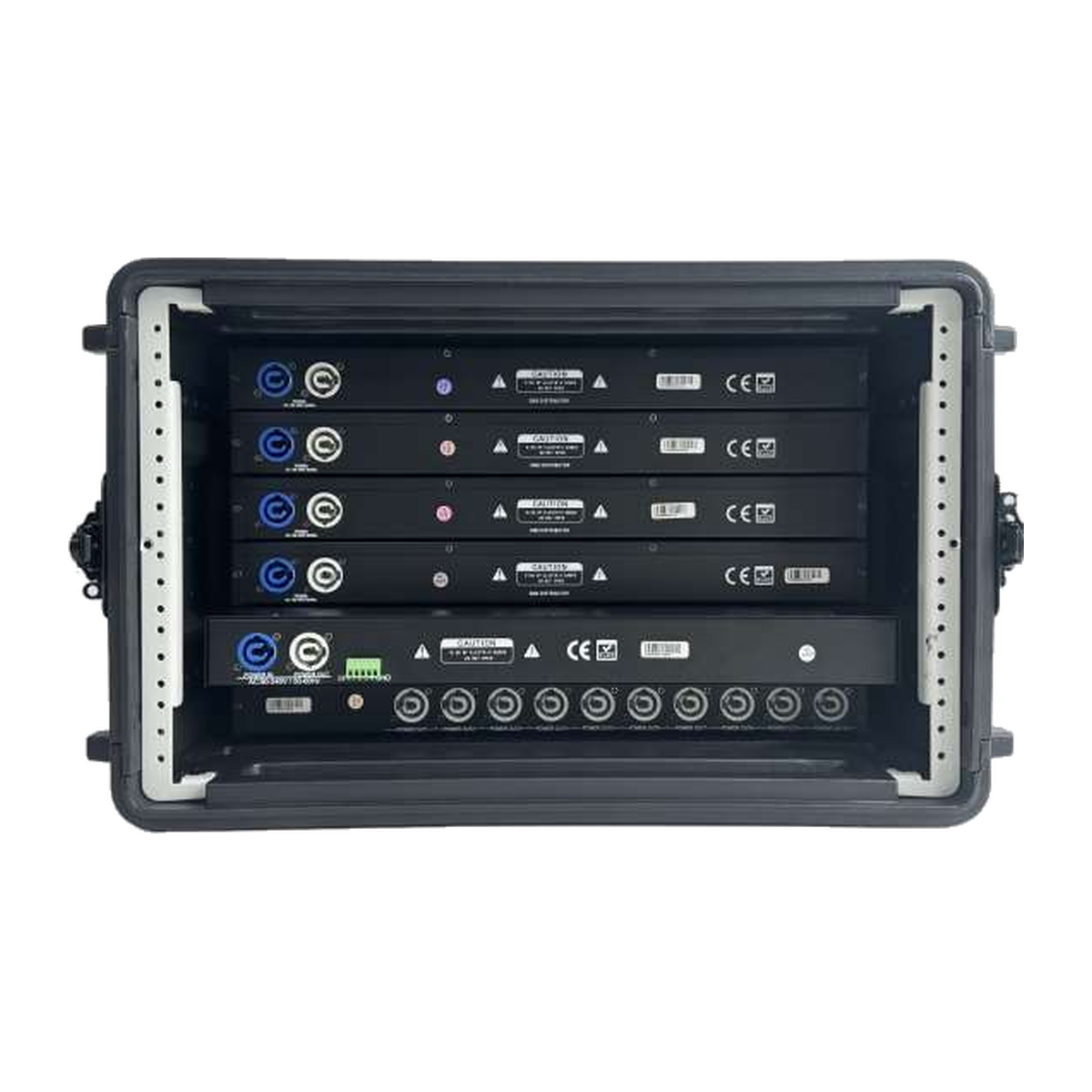

Manufacturer-Listed Cabinet Configuration
| Component | Model | Quantity |
|---|---|---|
| 8-channel RDM signal splitter | RDM8802 | 4 |
| 8-channel RDM Art-Net controller | CR061R-D | 1 |
| 10-way cabinet power supply | PW0A10W | 1 |
Professional Lighting System Applications
For compact stage-control systems that combine RDM distribution, Art-Net network data and centralized power connections within a 6U cabinet.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CPS06S-2 |
| Cabinet type | RDM Art-Net & Power Signal Cabinet |
| Cabinet rack size | 6U |
| Series | Stage Signal & Power Cabinet Series |
Model & Configuration Notes
A voltage display and overcurrent protection are mentioned in the cabinet description, but individual protective device details and ratings are not provided for this assembled configuration.
Plan system cabling, electrical power and compatible signal connections using the actual manufacturer installation information. No dimensions, power ratings or certifications have been estimated from the illustrations.
Source: supplied EAGLE LIGHT catalog, PDF page 32.
