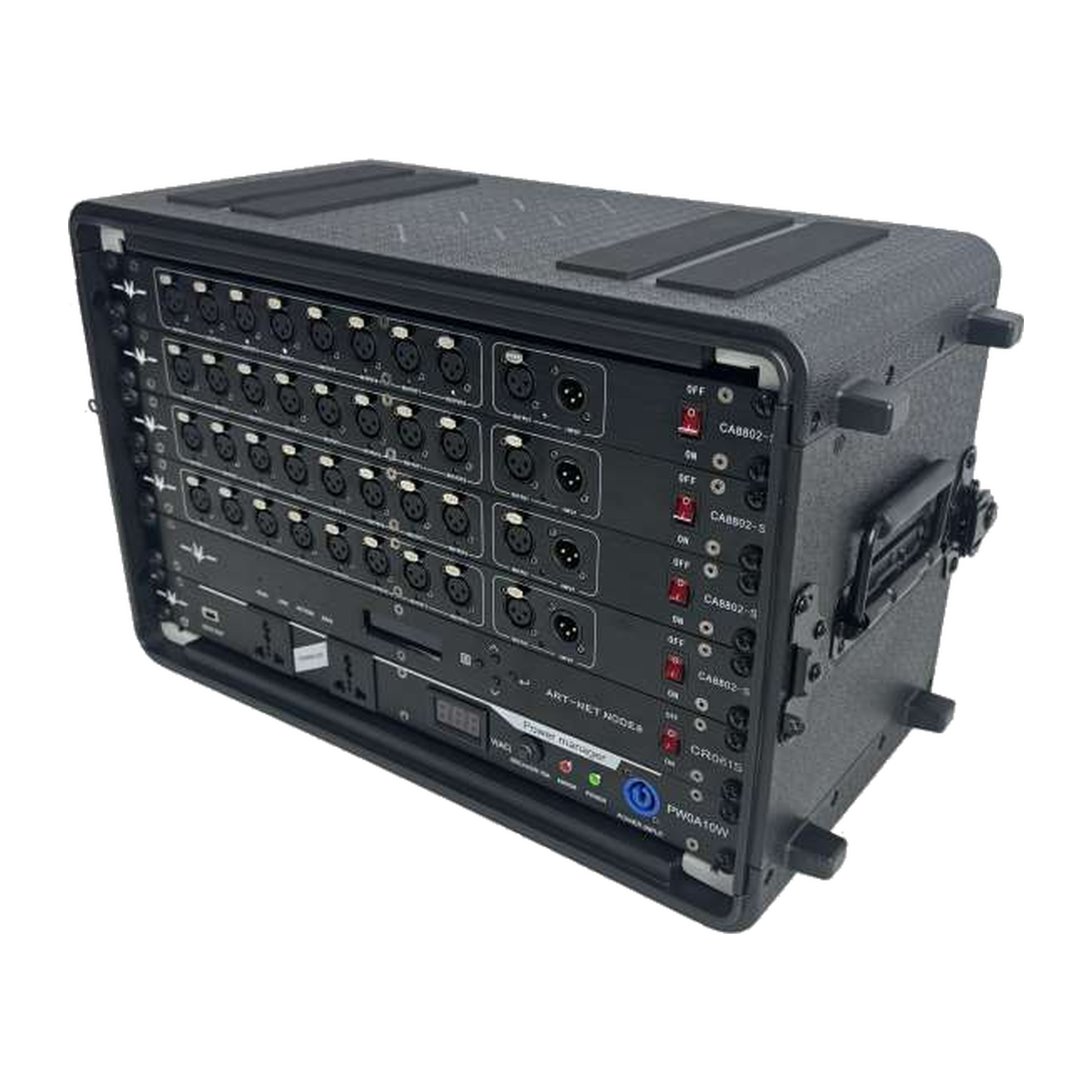

EAGLE LIGHT CPS06S-1 — 6U Integrated Signal Cabinet
The EAGLE LIGHT CPS06S-1 is a 6U dmx art-net & power signal cabinet for organized stage-lighting equipment and signal distribution. The manufacturer specifies this exact model with the integrated components and signal capabilities listed below.
Key Features & Benefits
- Four DMX distribution groups: The catalog specifies four-universe, eight-channel DMX distributed output.
- Art-Net signal input: Art-Net network input is supported by the listed cabinet configuration.
- Integrated power connections: The cabinet configuration includes one PW0A10W ten-way power unit.
- External supply provision: The manufacturer lists external AC power and 5 V DC power supply functionality.
Manufacturer-Listed Cabinet Configuration
| Component | Model | Quantity |
|---|---|---|
| 8-channel DMX signal splitter | CA8802-S | 4 |
| 8-channel DMX Art-Net network controller | CR061S | 1 |
| 10-way cabinet power supply | PW0A10W | 1 |
Professional Lighting System Applications
A compact option for centralized DMX signal routing and power connections in small or medium event, wedding, KTV and performance setups.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CPS06S-1 |
| Cabinet type | DMX Art-Net & Power Signal Cabinet |
| Cabinet rack size | 6U |
| Series | Stage Signal & Power Cabinet Series |
Model & Configuration Notes
Catalog consistency note: The component line labels CA8802-S as an RDM splitter, but CA8802-S is identified elsewhere in this same catalog as a DMX splitter and this cabinet’s own feature text states DMX distribution. The listing therefore describes this configuration as DMX, not RDM.
Plan system cabling, electrical power and compatible signal connections using the actual manufacturer installation information. No dimensions, power ratings or certifications have been estimated from the illustrations.
Source: supplied EAGLE LIGHT catalog, PDF page 31.
