Description

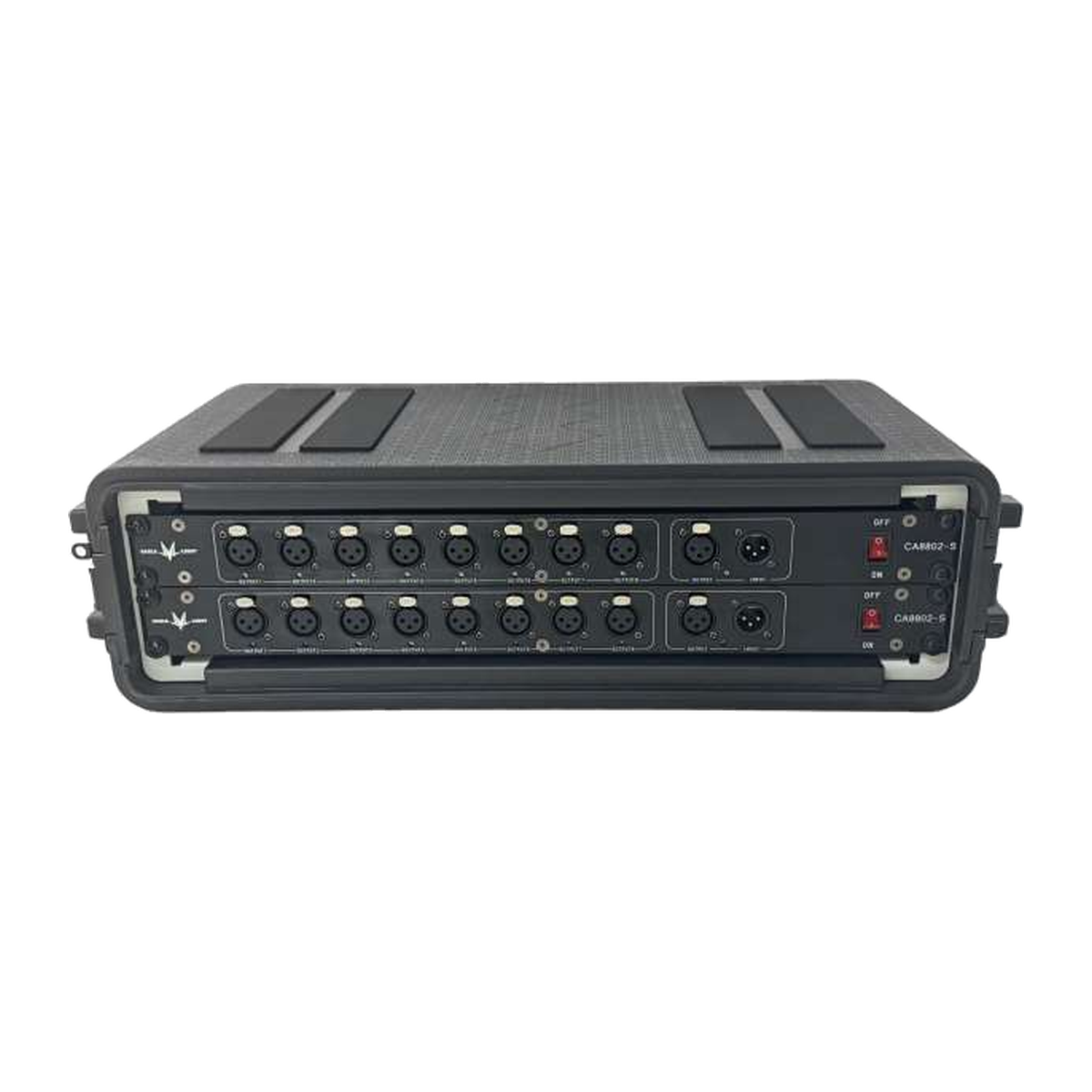

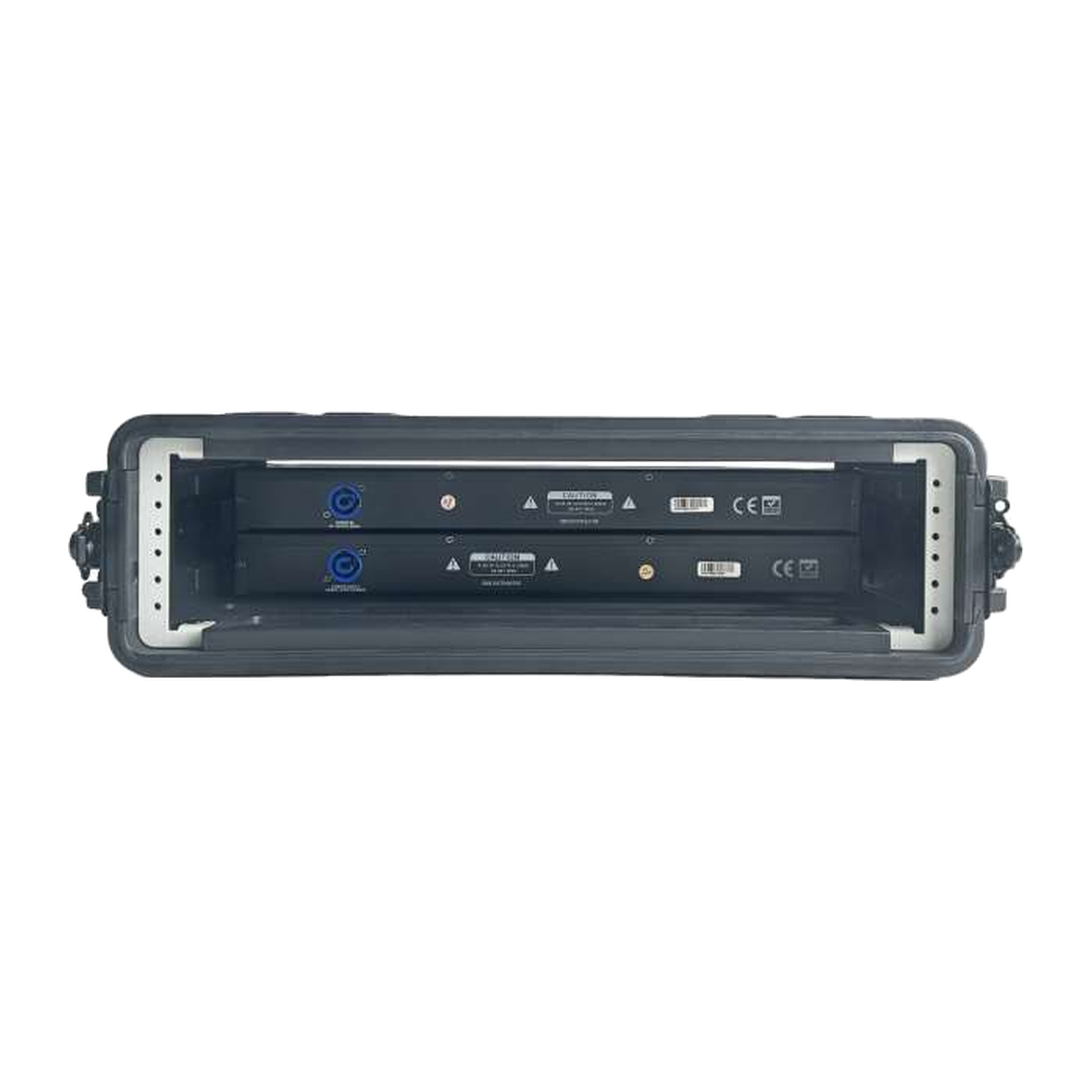

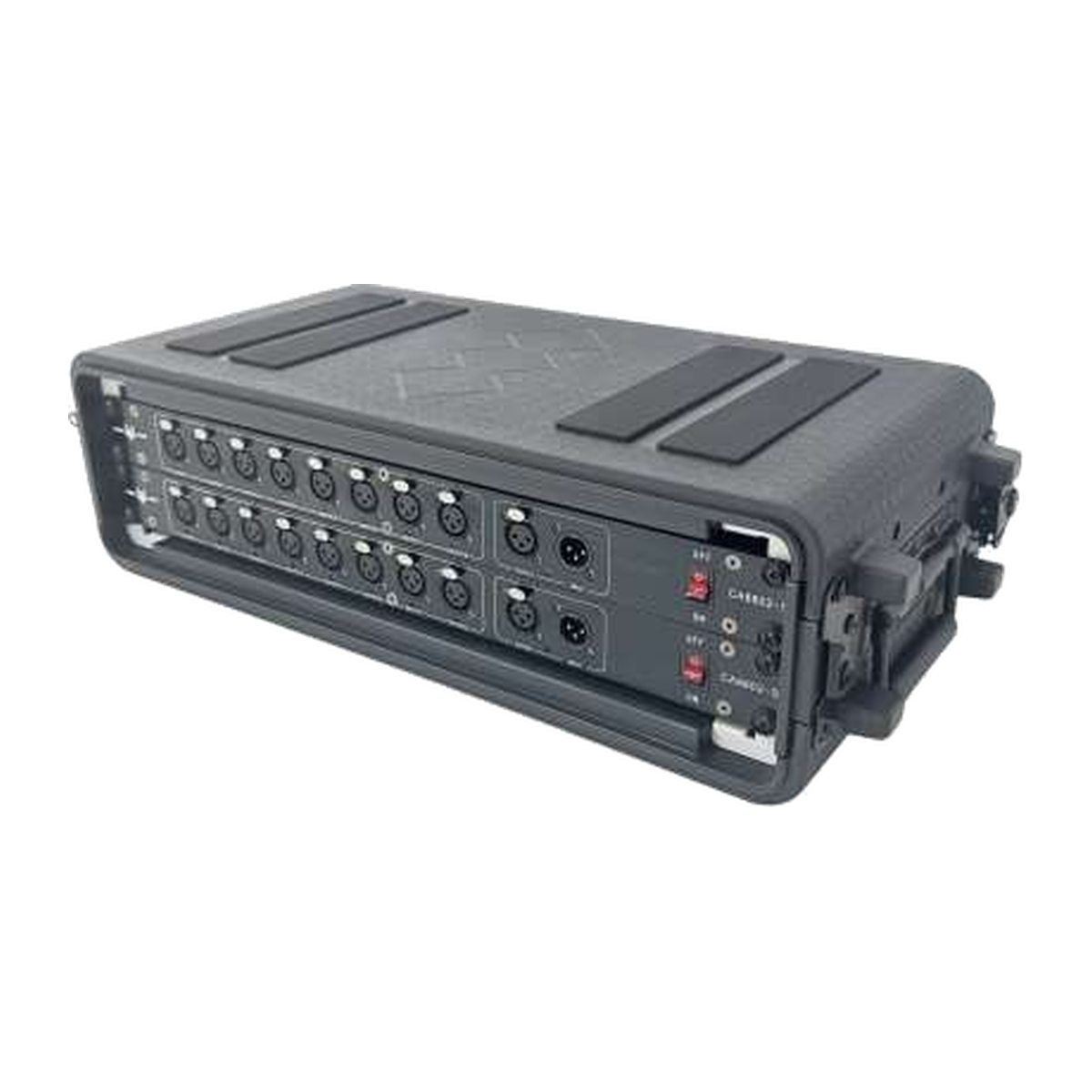

EAGLE LIGHT CPS02S-3 — 2U Integrated Signal Cabinet
The EAGLE LIGHT CPS02S-3 is a 2U 8-channel dmx signal cabinet for professional stage-lighting signal routing and centralized rack integration. Only the exact model’s components and capabilities documented in the supplied manufacturer catalog are described below.
Key Features & Benefits
- Two DMX splitters: The cabinet includes two CA8802-S eight-output DMX signal splitters.
- Centralized DMX connections: The 2U rack groups the two DMX signal distribution units.
- Compact signal routing: The manufacturer highlights tidy wiring, quick installation and equipment protection.
- Model-specific interpretation: The source identifies CA8802-S elsewhere as a DMX splitter, so RDM functionality is not claimed for this cabinet.
Manufacturer-Listed Cabinet Configuration
| Component | Model | Quantity |
|---|---|---|
| 8-channel DMX signal splitter | CA8802-S | 2 |
Professional Stage Applications
Designed as a compact DMX signal splitter cabinet for small performances, meeting rooms and other installations needing two eight-output DMX splitter units.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CPS02S-3 |
| Cabinet rack size | 2U |
| Cabinet type | 8-Channel DMX Signal Cabinet |
| Product family | Stage Signal & Power Cabinet Series |
Catalog Consistency & Model Notes
Catalog inconsistency: The CPS02S-3 component list contains two CA8802-S DMX splitters, but the accompanying benefits paragraph says two-universe, eight-channel RDM distribution. The model and component descriptions support DMX splitting, so RDM output is deliberately not advertised.
Confirm rack clearance, supply compatibility, signal cabling and equipment requirements before installation. Unspecified electrical ratings and dimensions are not estimated.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 33.
