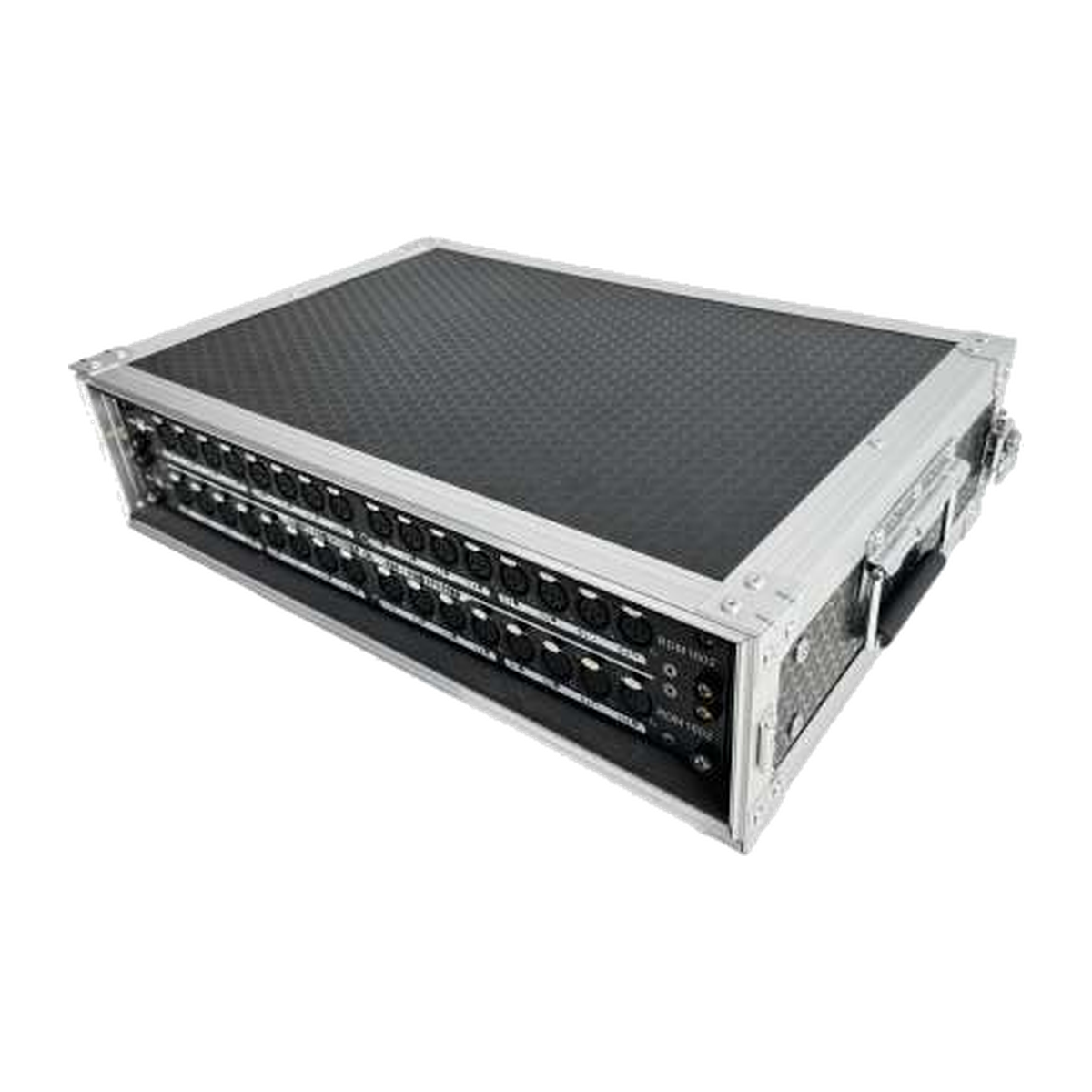

EAGLE LIGHT CPS02S-1 — 2U Integrated Signal Cabinet
The EAGLE LIGHT CPS02S-1 is a 2U 16-channel rdm signal cabinet for professional stage-lighting signal routing and centralized rack integration. Only the exact model’s components and capabilities documented in the supplied manufacturer catalog are described below.
Key Features & Benefits
- Two 16-channel RDM splitters: The listed cabinet configuration incorporates two RDM1602 splitter units.
- Alternative RDM layouts: The manufacturer describes two-universe/16-channel, four-universe/eight-channel and eight-universe/four-channel RDM distribution.

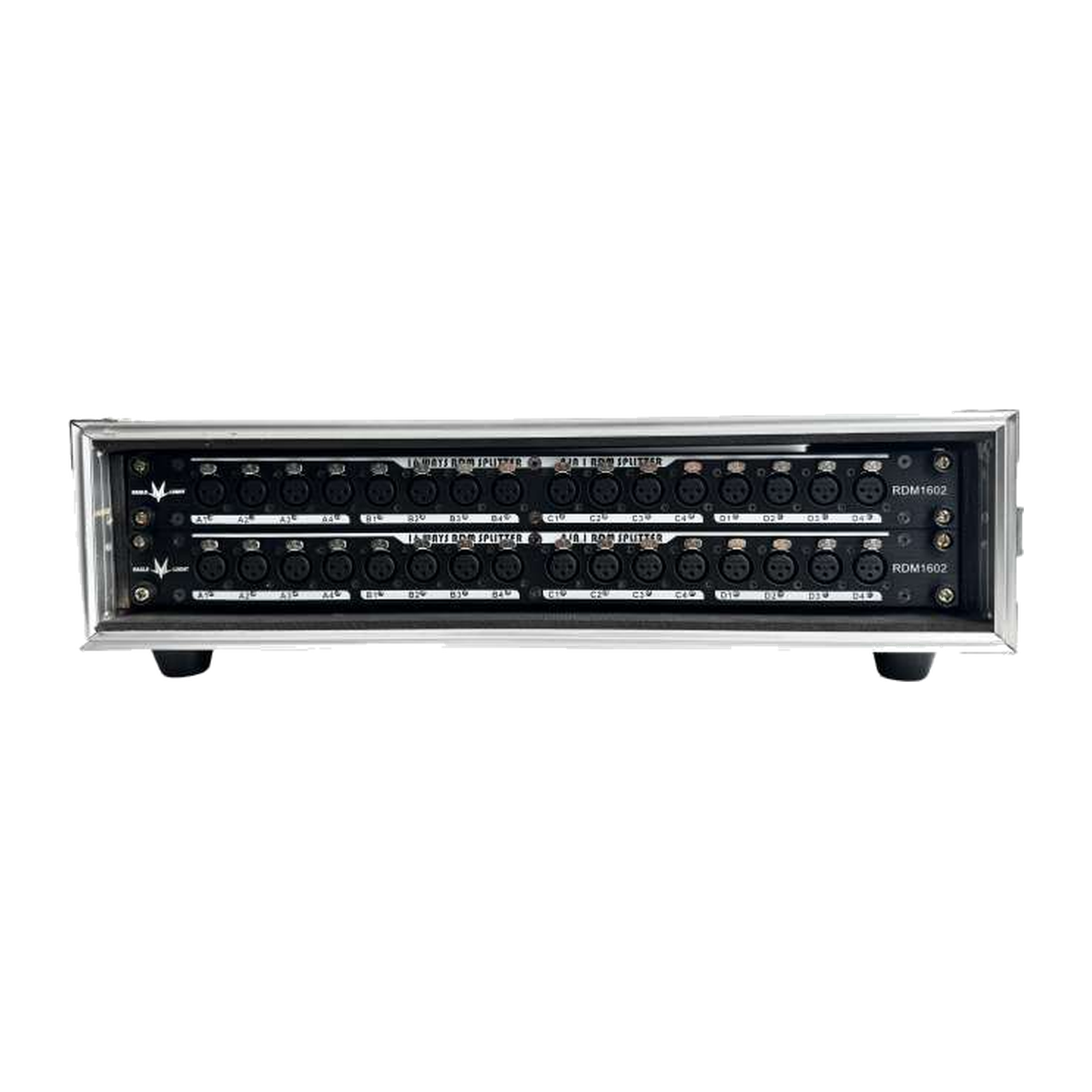

- Compact rack enclosure: The 2U equipment cabinet is described as compact and intended for organized wiring.
- Installation-focused design: The catalog highlights rapid setup, centralized equipment and stable signal transmission.

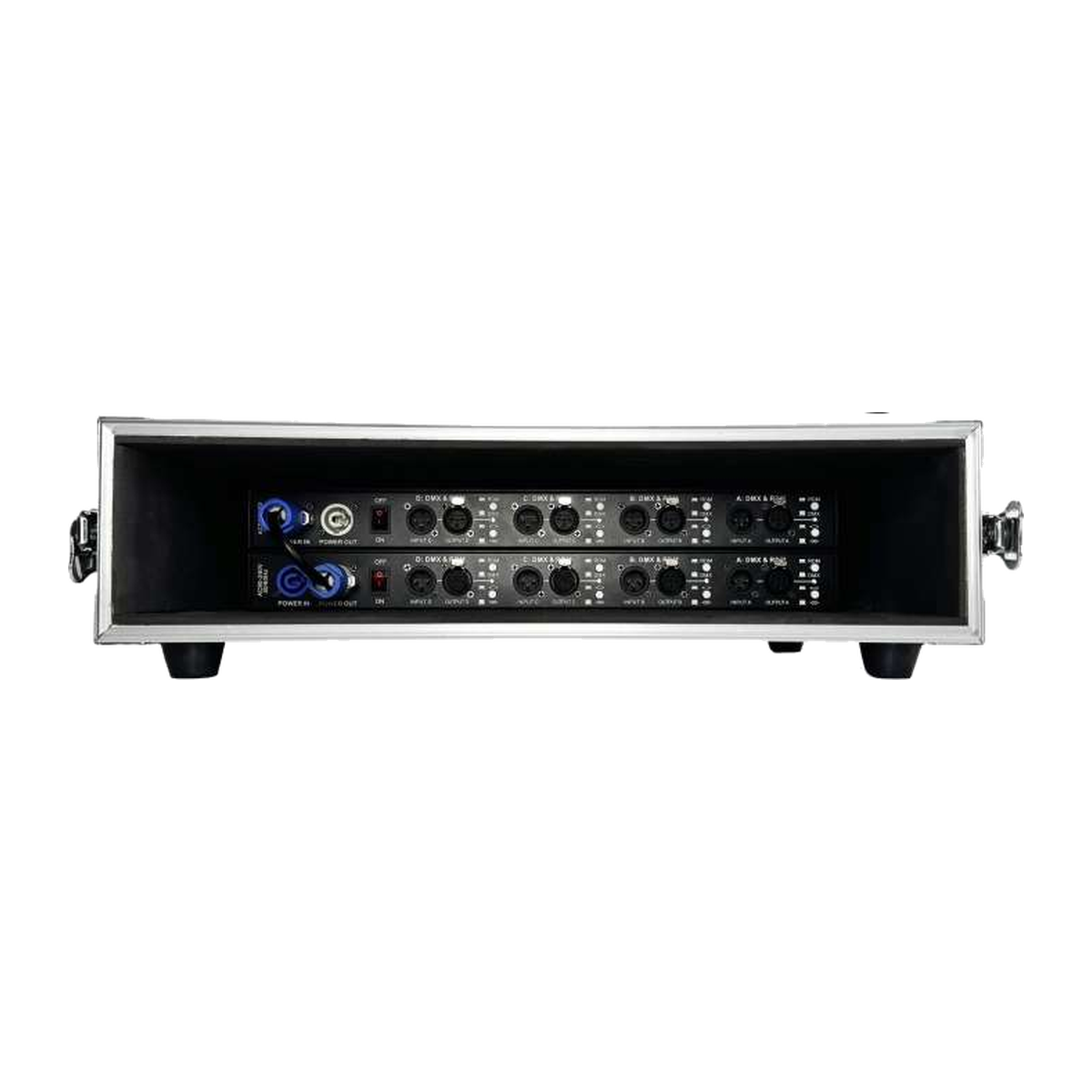

Manufacturer-Listed Cabinet Configuration
| Component | Model | Quantity |
|---|---|---|
| 16-channel RDM signal splitter | RDM1602 | 2 |
Professional Stage Applications
A small-format RDM distribution cabinet for meeting rooms, small performances, weddings and other compact fixed or temporary stage-control setups.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Manufacturer model | CPS02S-1 |
| Cabinet rack size | 2U |
| Cabinet type | 16-Channel RDM Signal Cabinet |
| Product family | Stage Signal & Power Cabinet Series |
Catalog Consistency & Model Notes
The catalog lists multiple distribution arrangements without explaining their configuration steps. No Art-Net input, network switch or integrated power sequencer is stated for CPS02S-1.
Confirm rack clearance, supply compatibility, signal cabling and equipment requirements before installation. Unspecified electrical ratings and dimensions are not estimated.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 33.
