EAGLE LIGHT CM004I 7-inch Super Smart Show Control Panel
The EAGLE LIGHT CM004I is a 7-inch smart show-control panel for coordinated operation of lighting effects, audio signals and compatible smart electrical equipment. The manufacturer describes recording incoming Art-Net or DMX512 lighting signals as effect content, with panel and external-sensor triggering for show operation.
Key Features & Benefits
- 7-inch touch interface: Uses a 7-inch touch screen for local operation of supported show-control functions.
- Coordinated show-control functions: Supports synchronized sound, lighting and smart electrical-equipment operation.
- Art-Net/DMX512 effect recording: Records lighting data from external Art-Net or DMX512 inputs as effect content.
- Multiple control protocols: Art-Net input/output, DMX512 input/output and RS485 input/output are specified.
- SD-card backup: External SD cards can store and back up content.
- Audio and external triggering: Offers 3.5-mm audio output, and effect control through the panel or external sensors.
- Mobile Wi-Fi operation: Provides Wi-Fi control through a connected router using a mobile phone or tablet.
- Wall mounting options: The catalog lists 86-type installation boxes (Chinese national standard) and 80-type European-standard boxes.
Professional Show Control Applications
The CM004I is intended for wall-mounted show-control points where touchscreen access, lighting-signal recording and network-enabled control are needed. Verify installation-box fit, supply voltage and compatible equipment prior to installation. Connector markings visible in product photographs should not be interpreted as additional electrical ratings without manufacturer confirmation.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Catalog model | CM004I |
| Product designation | 7-inch Super Smart Panel |
| Touch display | 7 inches |
| Art-Net | Input / output |
| DMX512 | Input / output |
| RS485 | Input / output |
| Recorded content | External Art-Net or DMX512 lighting data |
| External storage | SD card for storage and backup |
| Audio output | 3.5 mm |
| Effect triggering | Local panel or external sensors |
| Wireless operation | Phone / tablet via connected router |
| Mounting | 86-type national standard box; 80-type European standard box |
| Power requirement | DC 12–24 V, 1 A |
Catalog Model Identification Notice

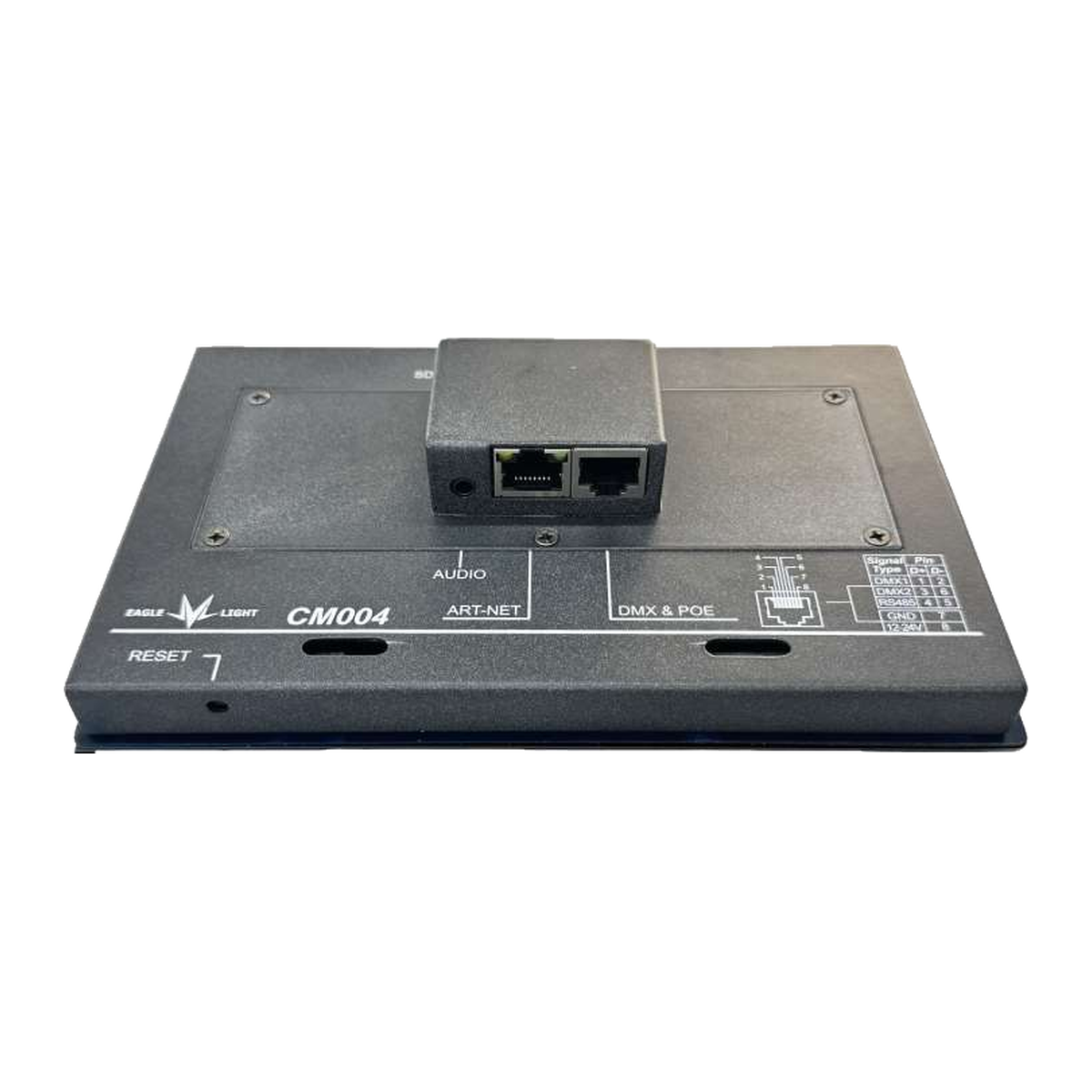

Model identification notice: The catalog names CM004I, the photographed rear housing is marked CM004, and the system diagram reads CM004H. The catalog does not resolve whether these markings refer to a common revision. The listing retains CM004I as the catalog heading, with the marking discrepancy disclosed. A label reading “DMX & POE” is visible on the pictured back panel, but PoE power capability is not independently specified in the product text and is not claimed.
Source: EAGLE LIGHT manufacturer catalog, PDF page 29. No specifications, certifications or model equivalences beyond the supplied source are assumed.
