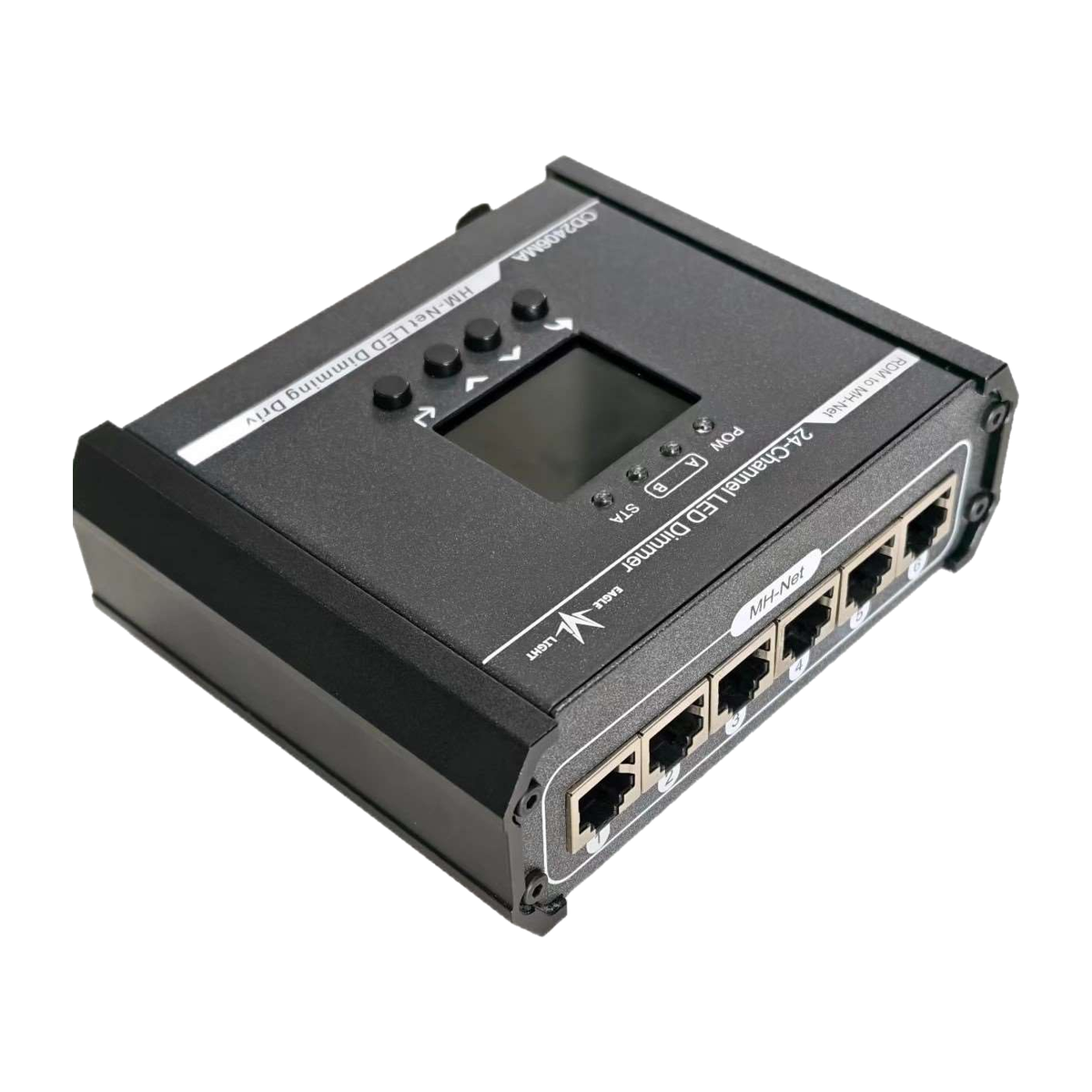

EAGLE LIGHT CD2406MA 24-Channel MH-Net Dimmer Driver — Professional MH-Net Lighting Control
The EAGLE LIGHT CD2406MA is a 24-channel MH-Net dimmer driver designed to connect RDM/DMX512 lighting control with a distributed MH-Net dimming system. The manufacturer specifies reception of RDM/DMX512 signals and output of four-channel MH-Net dimming data. MH-Net transmission can extend up to 200 meters, while hand-in-hand cascading helps organize distributed LED driver locations.
Key Features & Benefits
- RDM/DMX512 signal reception: Receives the RDM/DMX512 control signals identified in the manufacturer catalog.
- MH-Net signal output: Converts the control input into four-channel MH-Net dimming data, as stated in the manufacturer description.
- MH-Net transmission up to 200 m: The catalog specifies long-distance MH-Net dimming signal transmission up to 200 meters.
- Hand-in-hand cascading: Supports cascade connections that help distribute LED driver units across an installation.
- Distributed LED driver coordination: The manufacturer illustration depicts CD2406MA connected to multiple CD0410P driver units over a network transmission layout.
Professional Application & System Integration
CD2406MA serves as the RDM/DMX512-to-MH-Net control stage in the manufacturer-shown distributed dimming layout. Compatible MH-Net LED driver units, such as the CD0410P in the same catalog diagram, then convert MH-Net dimming signals to LED driving outputs. The catalog does not specify independent LED driving current for the CD2406MA.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Model | CD2406MA |
| Product type | 24-Channel MH-Net Dimmer Driver |
| Input control signals | RDM / DMX512 |
| Output control data | 4-channel MH-Net dimming data |
| MH-Net signal transmission | Up to 200 m |
| Cascading | Hand-in-hand cascading supported |
Model Selection Guidance
The 24-channel designation and four-channel MH-Net dimming output are both reproduced from the manufacturer catalog. Do not infer connector-to-channel allocations, electrical output current or power-supply specifications that are not stated.
Technical details are limited to the user-supplied EAGLE LIGHT manufacturer’s catalog, PDF page 22 (printed page 18). Unsupported voltage, power, dimensions, protection ratings and certifications have not been estimated.
