EAGLE LIGHT CB0401-M 4-Channel RDM/DMX512 Signal Merger
The EAGLE LIGHT CB0401-M is the signal-merging module in the manufacturer's four-channel RDM/DMX512 multiplexer system. It combines the transmission paths of four individual RDM/DMX512 signal channels onto a single network cable, as shown in the catalog's control-console-to-fixtures connection diagram.
Key Features & Benefits
- Four-channel signal collection: Supports combining four RDM/DMX512 channel transmission paths for cabling.
- Single-cable transmission: The manufacturer specifies carrying the four channels across one network cable.
- Complementary receiver module: The catalog pairs CB0401-M with CB0401-S, which restores the four independent signal outputs at the destination.

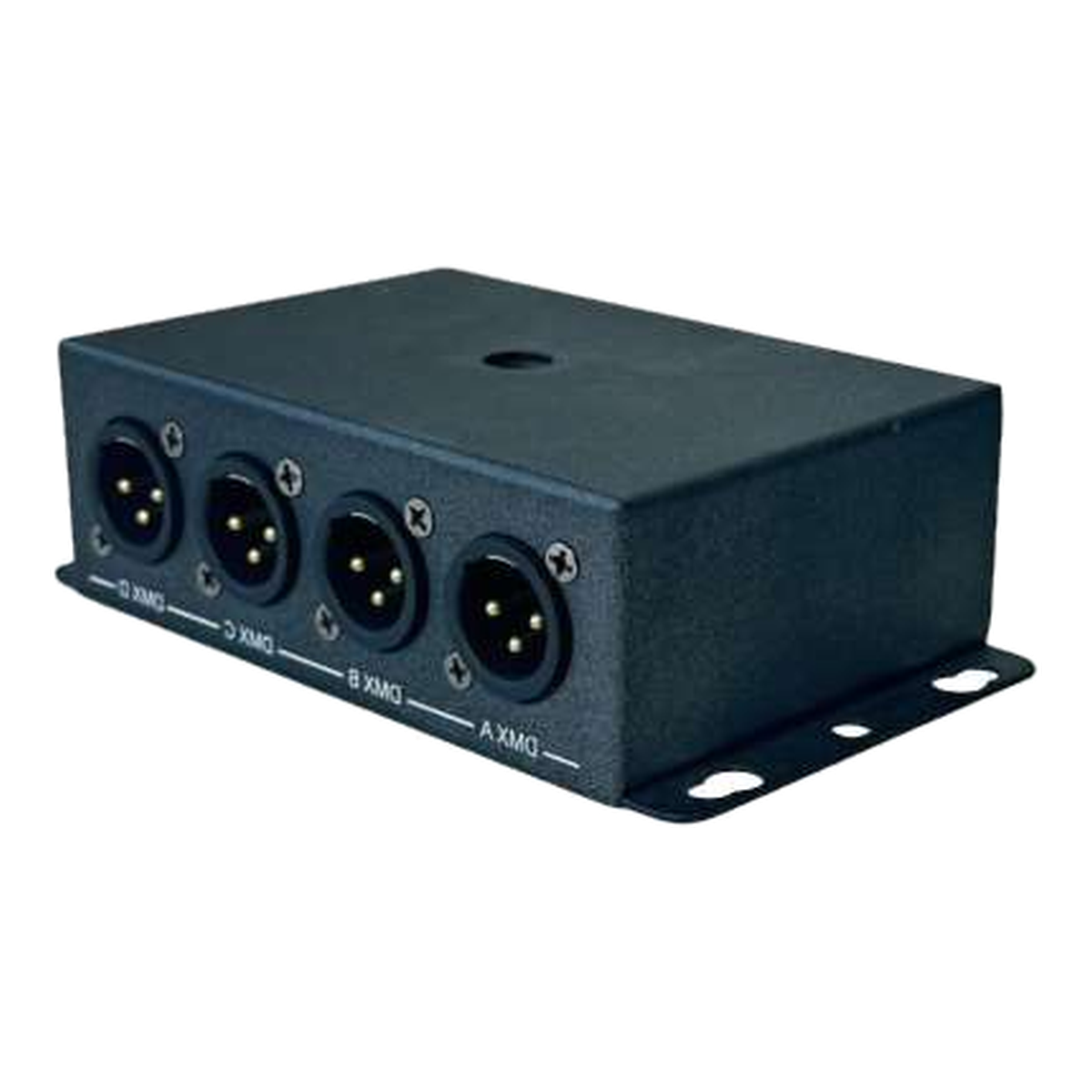

- Product-specific connector view: The catalog labels the four-connector unit pictured for this product as 'Merger: CB0401-M'.
- Mounting options illustrated: A pipe-clamp or clamp-mount installation is illustrated for the CB0401 multiplexer family.
Professional DMX & RDM Applications
Use the CB0401-M as the transmission-side module of the paired four-channel RDM/DMX512 link. This is cable-path multiplexing rather than a documented conversion to IP Ethernet, Art-Net or sACN. Maximum cable distance, supported connector pinouts and mains/power specifications are not stated in the supplied catalog.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Catalog model | CB0401-M |
| Product family | 4-Channel RDM/DMX512 Multiplexer |
| Product role | Signal merger / transmission-end module |
| RDM/DMX512 signal channels | 4 |
| Transport concept | Four independent signal channels carried over one network cable |
| Paired distribution module | CB0401-S (listed separately) |
Manufacturer Model Identification
Model identification: The catalog's family heading is CB0401-(S/M)P, but it explicitly labels the merger as CB0401-M in the unit photograph and connection diagram. The source does not establish whether a terminal 'P' is part of the orderable model code. The displayed Model and SKU use CB0401-M as shown for the individual module; verify the supplier's ordering suffix before purchase.
Technical claims are limited to the user-supplied EAGLE LIGHT manufacturer catalog, PDF page 9 (printed page 5). No undocumented electrical ratings, performance data or certifications have been estimated.
