CA8802Mod

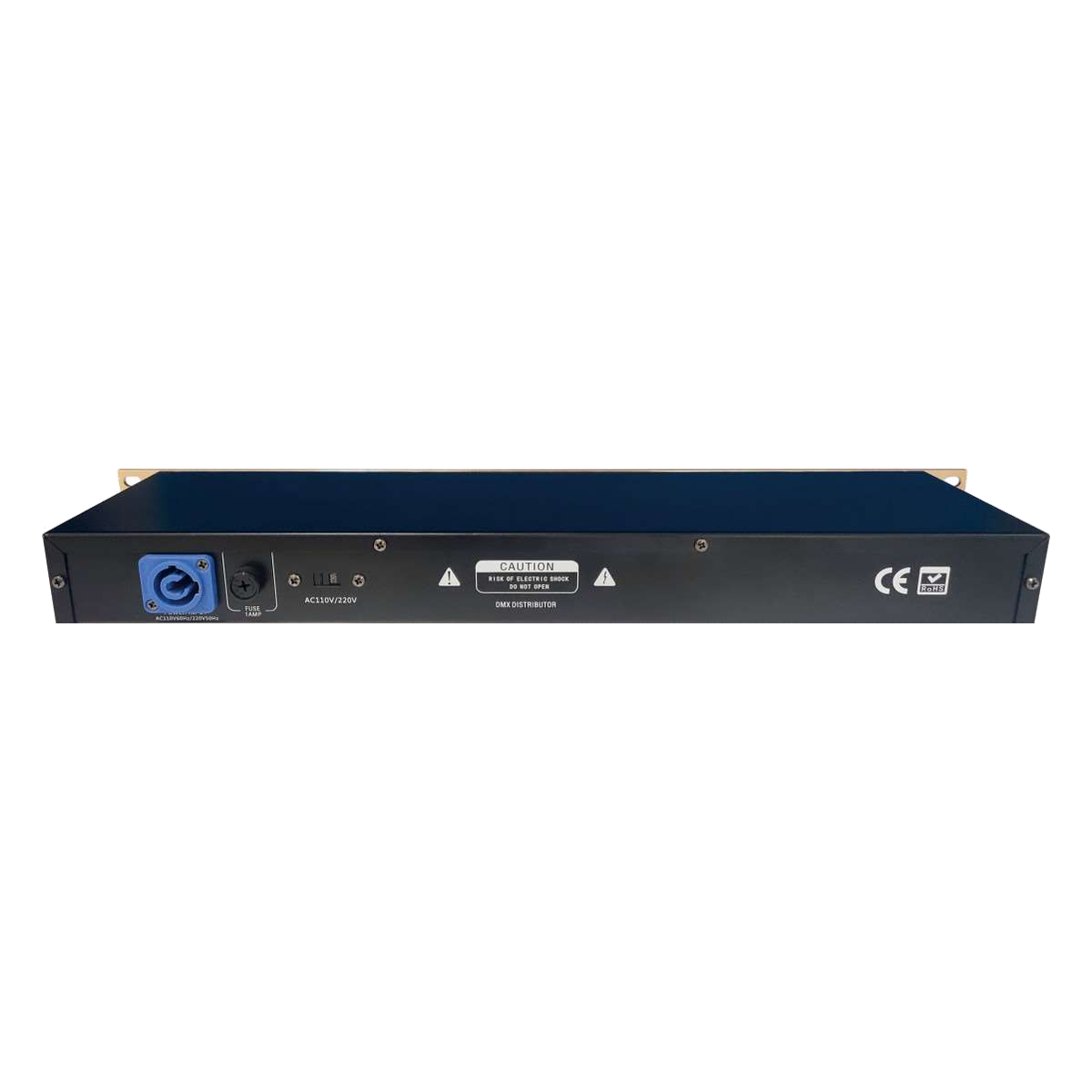

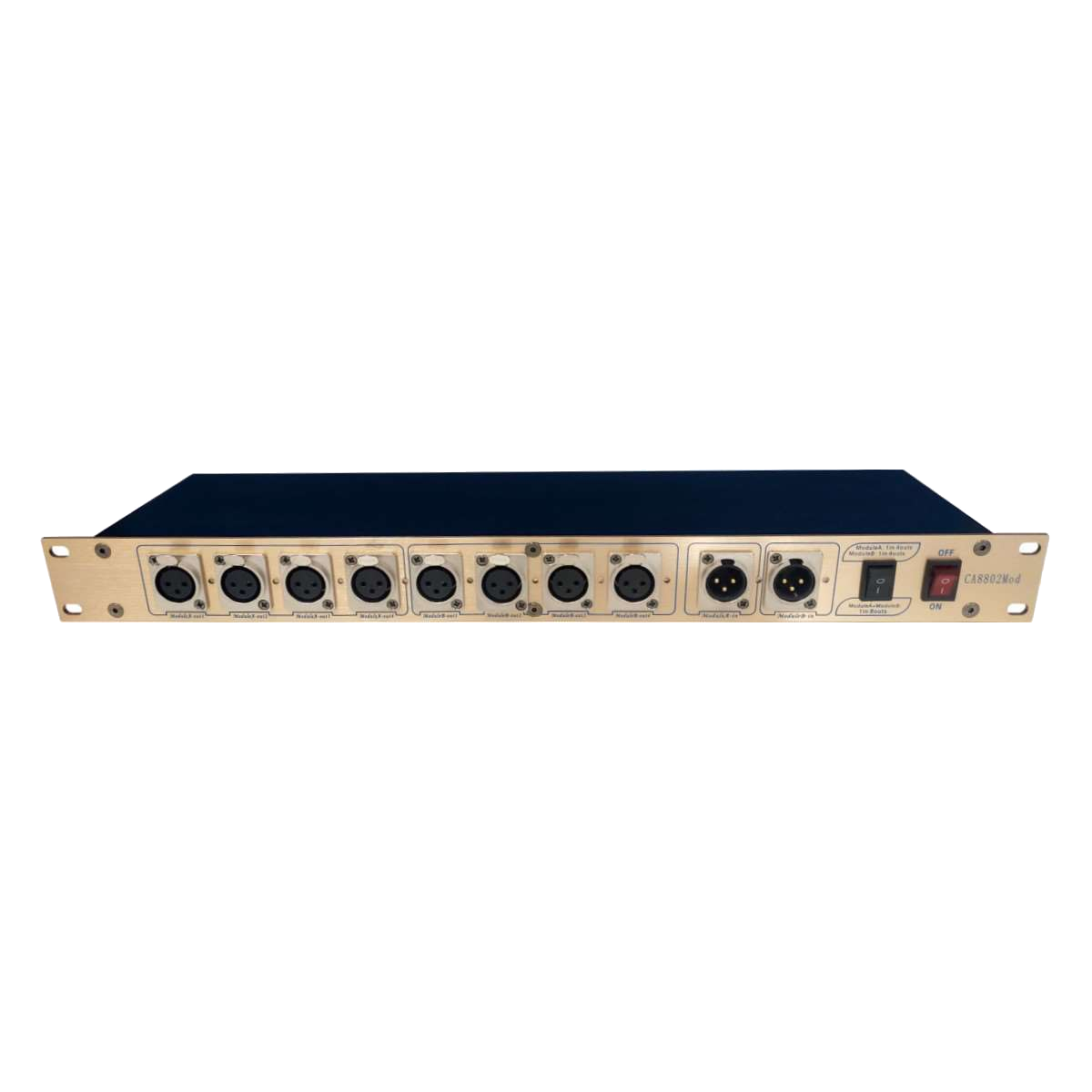

EAGLE LIGHT CA8802Mod 8-Channel Modular DMX Signal Splitter

The EAGLE LIGHT CA8802Mod is an 8-channel modular DMX signal splitter for professional DMX lighting signal routing. Its model-specific connections and signal routing are documented in the specifications.

Isolation
Independent signal indicators, opto-isolation

Description

Product Overview

The EAGLE LIGHT CA8802Mod is an 8-channel modular DMX signal splitter for professional DMX lighting signal routing. The manufacturer’s catalog specifies the following model-specific configuration and connection features.

Key Features

  • Interface layout: Modular input and output port design.
  • Operating mode 1: Two groups of 1 input to 4 outputs.
  • Operating mode 2: One group of 1 input to 8 outputs.
  • Status and isolation: Independent signal indicators, opto-isolation.

Technical Specifications

Brand EAGLE LIGHT
Model (catalog text) CA8802Mod
Product type 8-Channel Modular DMX Signal Splitter
Interface layout Modular input and output port design
Operating mode 1 Two groups of 1 input to 4 outputs
Operating mode 2 One group of 1 input to 8 outputs
Status and isolation Independent signal indicators, opto-isolation

Applications

This unit provides the documented connection or operating arrangement for distributing DMX lighting-control signals in stage or venue signal systems. Select the correct model according to its output count, physical connection type and installation format.

Compatibility & Notes

The product model and technical characteristics are taken only from this model’s entry in the supplied EAGLE LIGHT catalog.

Additional information

Model

CA8802Mod
