EAGLE LIGHT CA8802G 8-Channel Rear-Mounted DMX Signal Splitter

The EAGLE LIGHT CA8802G is a DMX signal distribution unit featuring an RS-485 interface and rear-mounted signal connections. It provides one signal input and eight separate signal distribution outputs for professional lighting signal routing.

Signal inputs
1
Isolation
Photoelectric isolation
Connections
RS-485

Description

Product Overview

The EAGLE LIGHT CA8802G is a DMX signal distribution unit featuring an RS-485 interface and rear-mounted signal connections. It provides one signal input and eight separate signal distribution outputs for professional lighting signal routing.

Key Features

  • Eight DMX distribution outputs: one incoming signal is routed to eight signal paths.

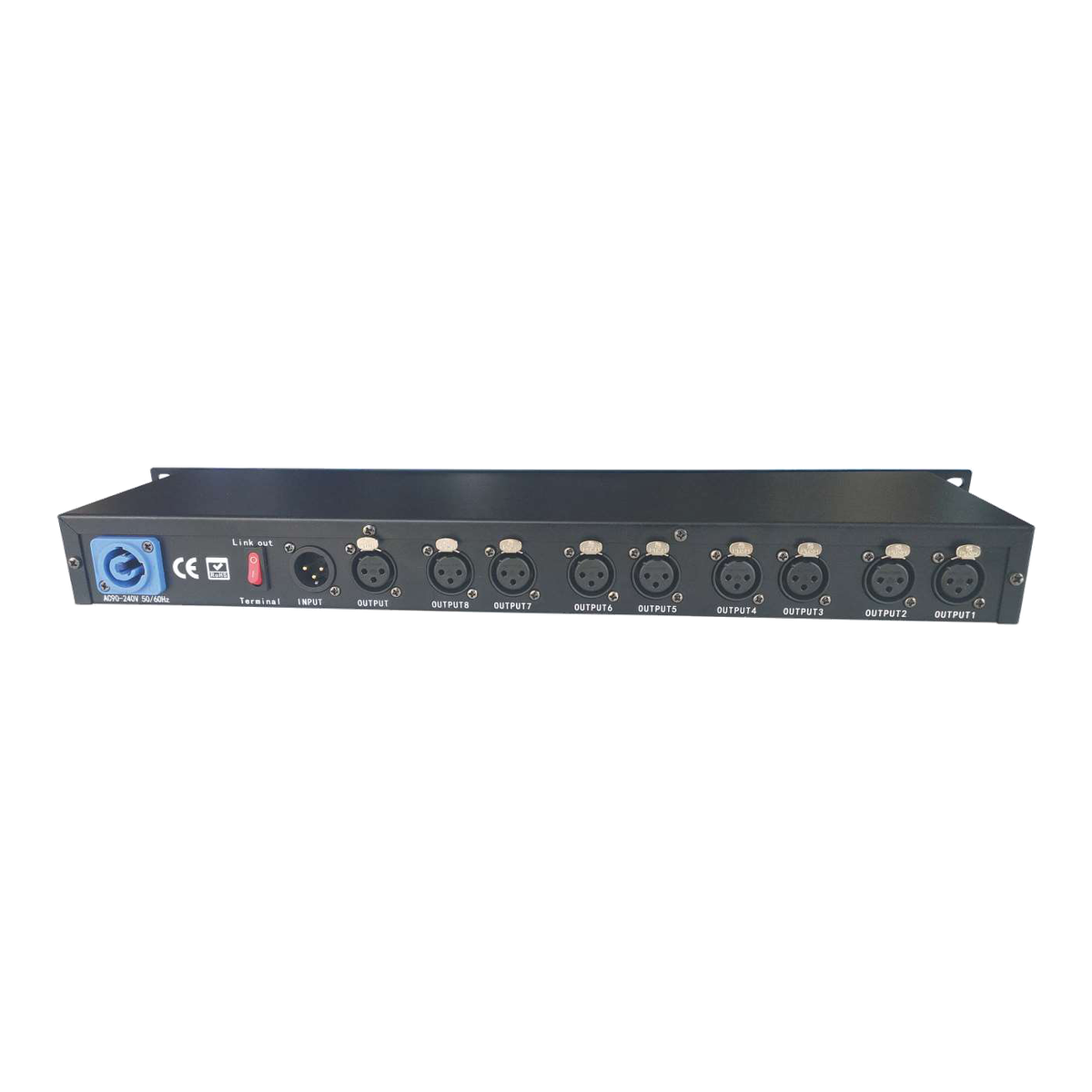

  • Rear-mounted wiring: connections are positioned on the rear side of the unit.
  • RS-485 interface: professional signal connectivity.

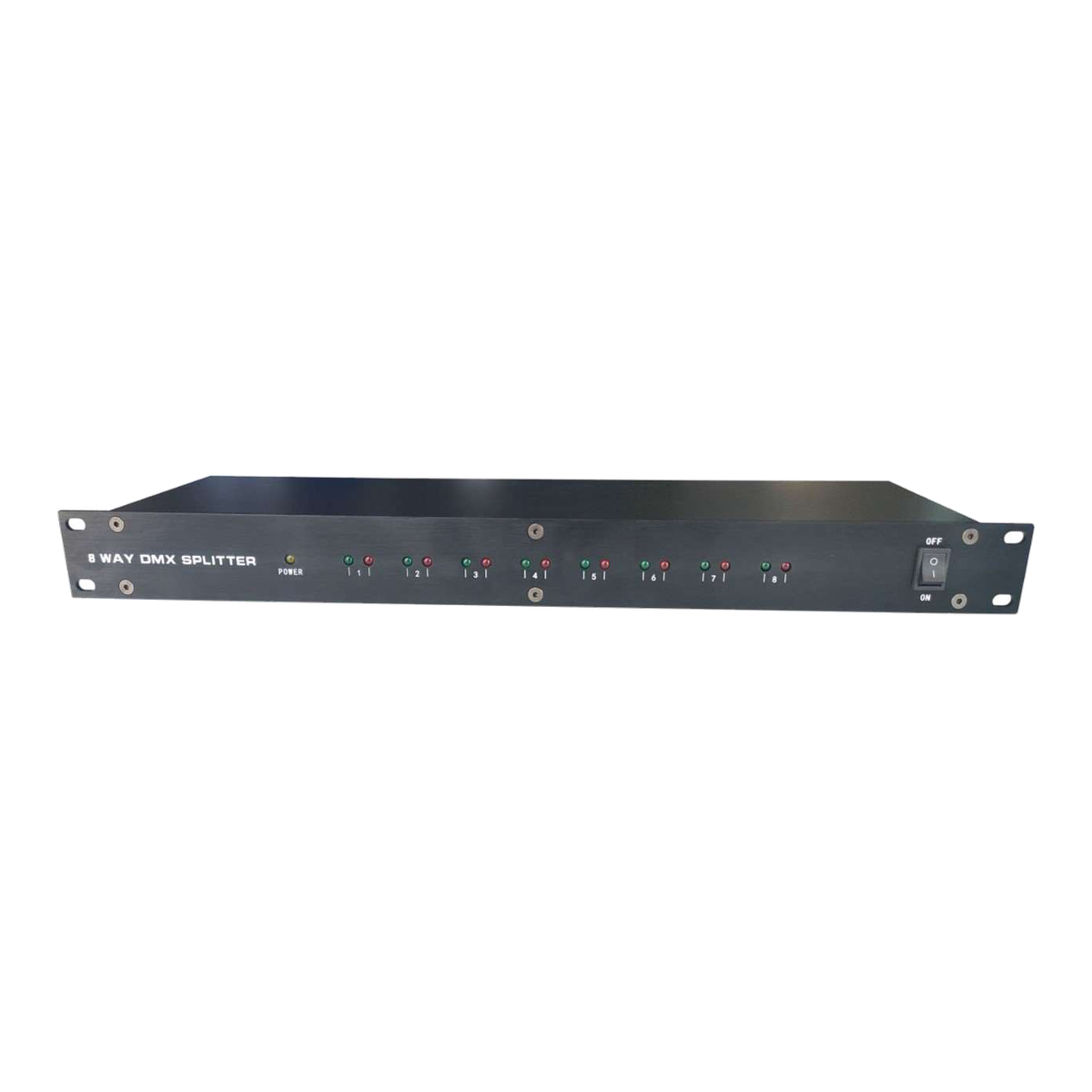

  • Independent signal indicators: individual signal indication for checking connection status.
  • Photoelectric isolation: specified for the signal distribution interface.

Technical Specifications

Brand EAGLE LIGHT
Model CA8802G
Product type 8-Channel Rear-Mounted DMX Signal Splitter
Interface RS-485
Signal inputs 1
Signal distribution outputs 8
Connection layout Rear-mounted wiring
Signal indication Independent signal indicators
Isolation Photoelectric isolation

Applications

The CA8802G offers a practical layout for lighting-control systems where output cabling is organized at the back of a signal splitter. Its eight-output arrangement helps route a control feed to multiple downstream signal lines while keeping signal indications visible from the unit.

Compatibility & Notes

Confirm the specified connector arrangement and installation requirements before integration with a lighting-control system.
