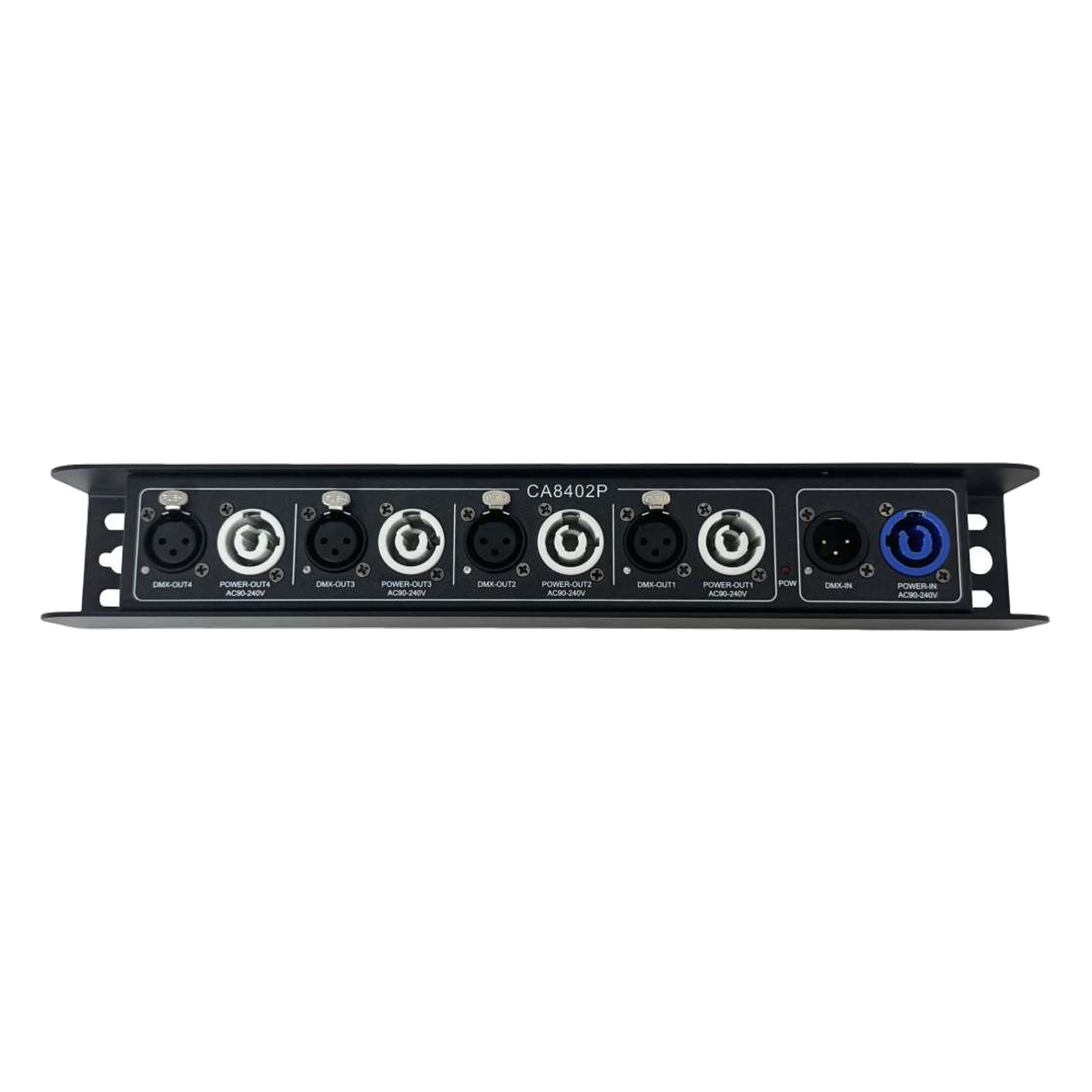

EAGLE LIGHT CA8402P Mini 4-Channel DMX Splitter with Power Outputs
The EAGLE LIGHT CA8402P is a mini 4-channel dmx splitter with power outputs for professional DMX lighting signal connections. This model’s manufacturer catalog entry specifies the exact channel, housing and connection characteristics shown below.
Key Features & Benefits
- DMX signal inputs: 1.
- DMX signal outputs: 4.
- Power outputs: 4.
- Additional function: Power output for connected equipment.
- Status and isolation: Independent signal indicators, photoelectric isolation.
Professional DMX Signal Applications
Use the documented signal distribution or repeater arrangement where its interface, output count and any specified protection rating match the installation requirements. The protection rating refers only to the specific model for which it is stated.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Catalog model | CA8402P |
| Product type | Mini 4-Channel DMX Splitter with Power Outputs |
| DMX signal inputs | 1 |
| DMX signal outputs | 4 |
| Power outputs | 4 |
| Additional function | Power output for connected equipment |
| Status and isolation | Independent signal indicators, photoelectric isolation |
Catalog & Installation Notes
The CA8402P listing describes only the capabilities specified above; unspecified electrical, mounting and performance details are not assumed.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 7.
