Description

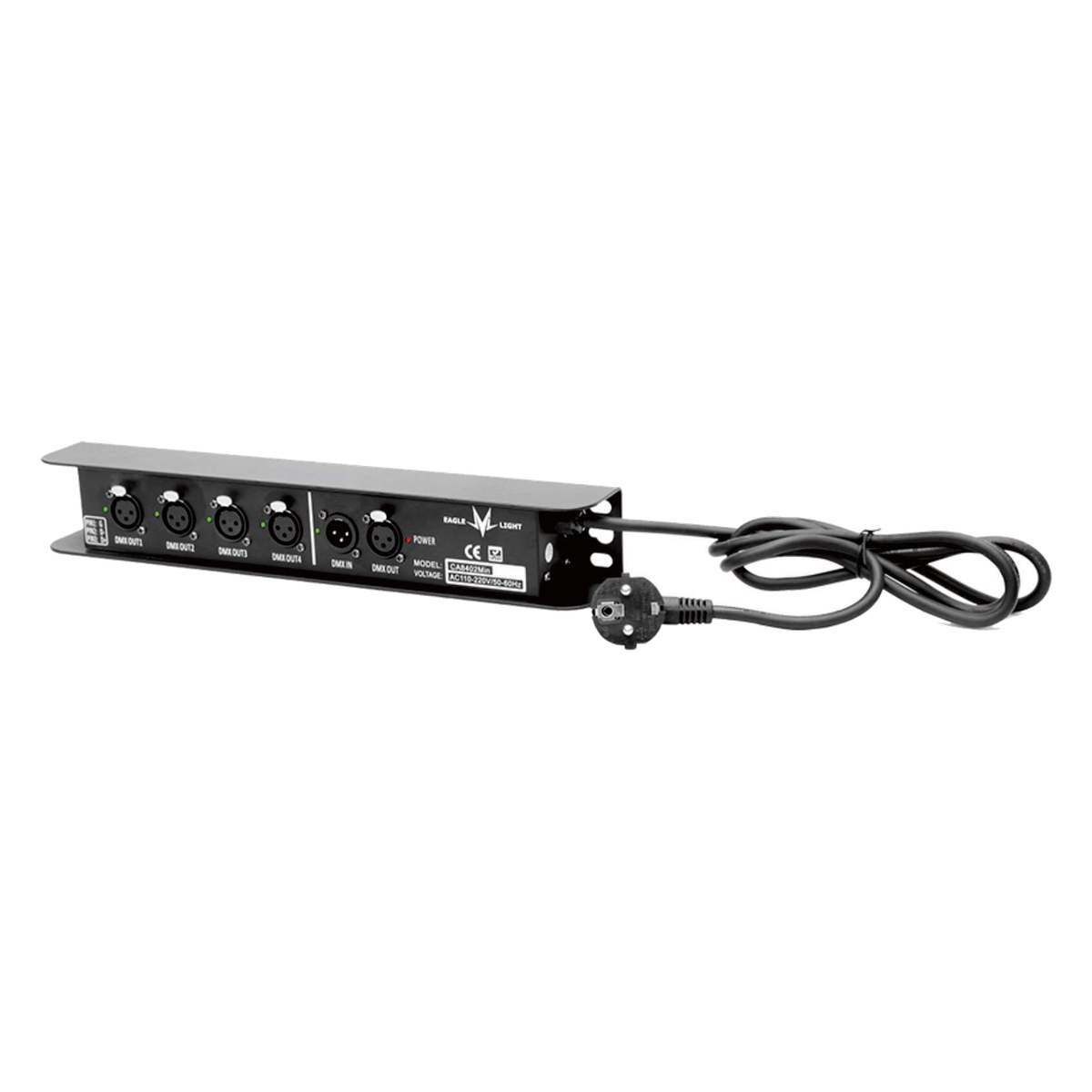

EAGLE LIGHT CA8402Mini Mini 4-Channel DMX Signal Splitter
The EAGLE LIGHT CA8402Mini is a mini 4-channel dmx signal splitter for professional DMX lighting signal connections. This model’s manufacturer catalog entry specifies the exact channel, housing and connection characteristics shown below.
Key Features & Benefits
- Interface: RS-485.
- Power supply description: Transformer power supply.
- Signal inputs: 1.
- Signal outputs: 4.
- Status and isolation: Independent signal indicators and photoelectric isolation.
Professional DMX Signal Applications
Use the documented signal distribution or repeater arrangement where its interface, output count and any specified protection rating match the installation requirements. The protection rating refers only to the specific model for which it is stated.
Verified Technical Specifications
| Brand | EAGLE LIGHT |
|---|---|
| Catalog model | CA8402Mini |
| Product type | Mini 4-Channel DMX Signal Splitter |
| Interface | RS-485 |
| Power supply description | Transformer power supply |
| Signal inputs | 1 |
| Signal outputs | 4 |
| Status and isolation | Independent signal indicators and photoelectric isolation |
Catalog & Installation Notes
The CA8402Mini listing describes only the capabilities specified above; unspecified electrical, mounting and performance details are not assumed.
Source: supplied EAGLE LIGHT manufacturer catalog, PDF page 7.
